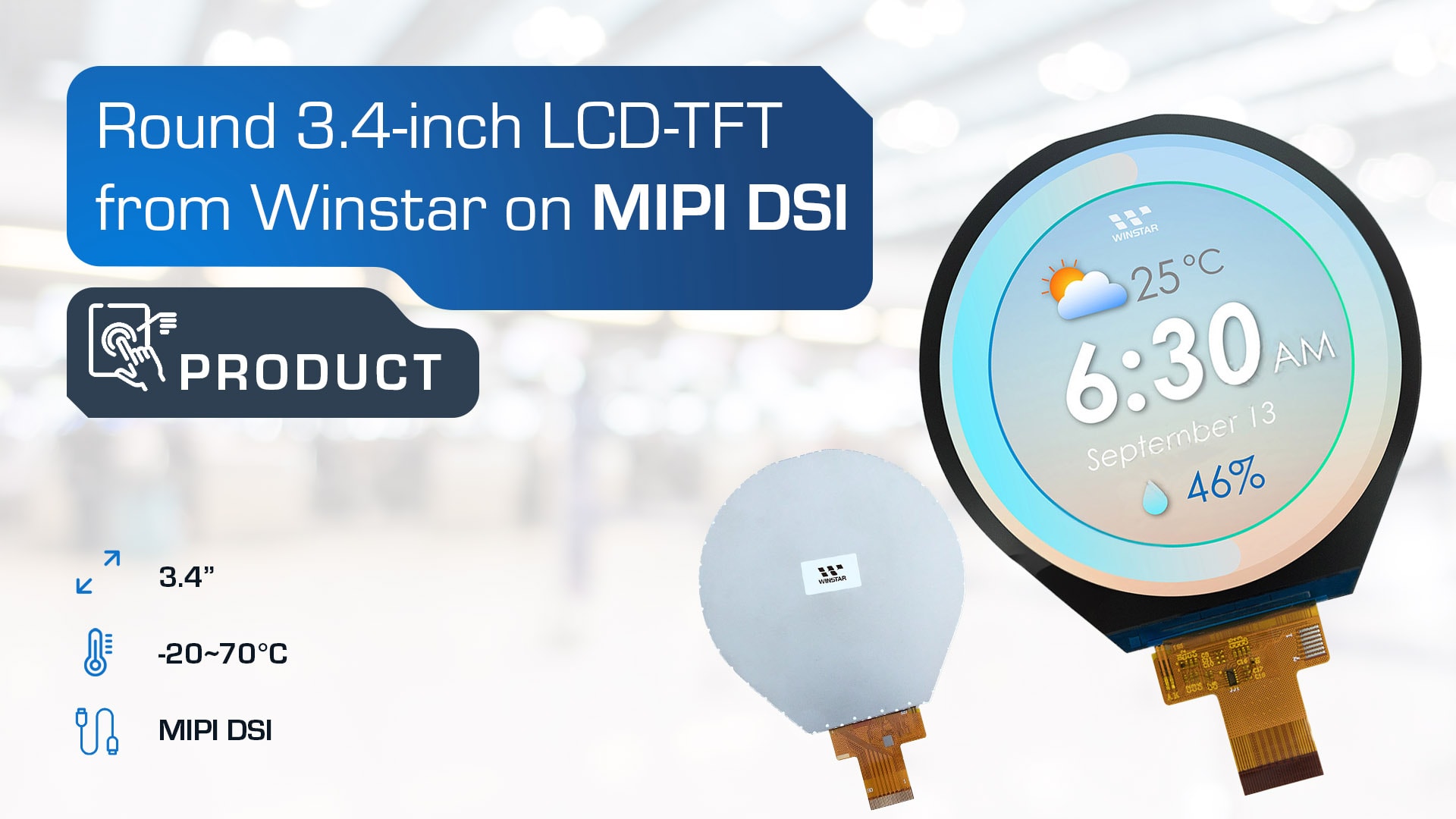

Winstar has introduced a new 3.4-inch round LCD-TFT display with the designation WF0340ATYAB7MNN0. This model with an IPS matrix and a resolution of 800×800 pixels will be perfect for devices requiring round screens, such as home appliances, watches, entertainment machines, etc.
We are increasingly reaching for electronic equipment that not only performs its functions, but also looks aesthetically pleasing and modern. Designers are eager to experiment with unusual shapes, and round displays are a perfect complement to such design. In addition to the 3.4-inch model in question, other round LCD-TFTs of various sizes are also available.
Winstar is launching a new 3.4-inch round LCD-TFT display, model WF0340ATYAB7MNN0, which is sure to appeal to electronic device designers looking for customized visual solutions. This unique IPS TFT display offers 800×800 pixel resolution and wide viewing angles, making it ideal for applications that require a clear image from any perspective.
Parameters of the WF0340ATYAB7MNN0 model
The WF0340ATYAB7MNN0 is a 3.4-inch round LCD-TFT display with IPS (In-Plane Switching) technology and 800×800 pixel resolution. The IPS matrix guarantees fast response time, high frequency transmission and better color reproduction. Its biggest advantage is wide viewing angles: 85° on each side. The dimensions of the module are 94.9×96.95×2.22 mm, and the active image area occupies 87.6×87.6 mm.
The display uses the built-in ILI9881C controller and communicates via a 4-line MIPI DSI interface. Contrast ratio is 1200:1, brightness is 300 cd/m2 (typical value), and supply voltages are 3.3V for analog circuits and 1.8V for logic circuits.
The operating temperature range is between -20°C and +70°C, and storage from -30°C to +80°C. There is no built-in touch panel.
| parameter | model WF0340ATYAB7MNN0 |
| size | 3.4” |
| resolution | 800×800 px |
| active area | 87.6 x 87.6 mm |
| brightness | 300 cd/m2 |
| viewing angles | 85°/85°/85°/85° – IPS |
| interface | MIPI DSI |
| module dimensions | 94.9 x 96.95 x 2.22 mm |
| backlight | LED |
| contrast | 1200:1 |
| operating temperature range | -20~70°C |
| touch screen | nie |
Applications of model WF0340ATYAB7MNN0
An IPS matrix with wide viewing angles, high resolution and a round shape make the WF0340ATYAB7MNN0 suitable for many applications requiring this type of display. The manufacturer suggests its use in household appliances, electronic watches, entertainment machines that use round screens, among others. It can also be used in smart home systems, industrial, medical and automotive devices requiring round displays with good image quality.
In addition to its high-quality optical and electrical performance, the display also features a modern design and easy integration into a variety of end devices, making it suitable for use in innovative consumer electronics projects.
Winstar’s IPS TFT LCD matrices
Winstar’s IPS TFT LCD displays use advanced IPS (In-Plane Switching) matrix technology, providing fast response time, high frequency transmission and excellent color reproduction. The biggest advantage is that they maintain high image quality from wide viewing angles – they provide consistent color purity regardless of viewing position. Thanks to this, Winstar’s IPS TFT LCD matrices are widely used in various industries: industrial control, medical equipment, automotive displays, smart home systems and many others.
