NEW DISPLAY LINES01 — 03
Seebeyond
Three lines. One goal.
To match the display to the actual needs of your application.
Scroll downDiscover Lite, Core and ProScroll downDiscover Lite, Core and ProPRECISION IN EVERY LAYER
Built layer by layer.Designed as one.
Optics, touch, display and mechanics – engineered to work together as one complete module.
Scroll, or click a layer to explore it.
UNISYSTEM / INDOOR01 — 03

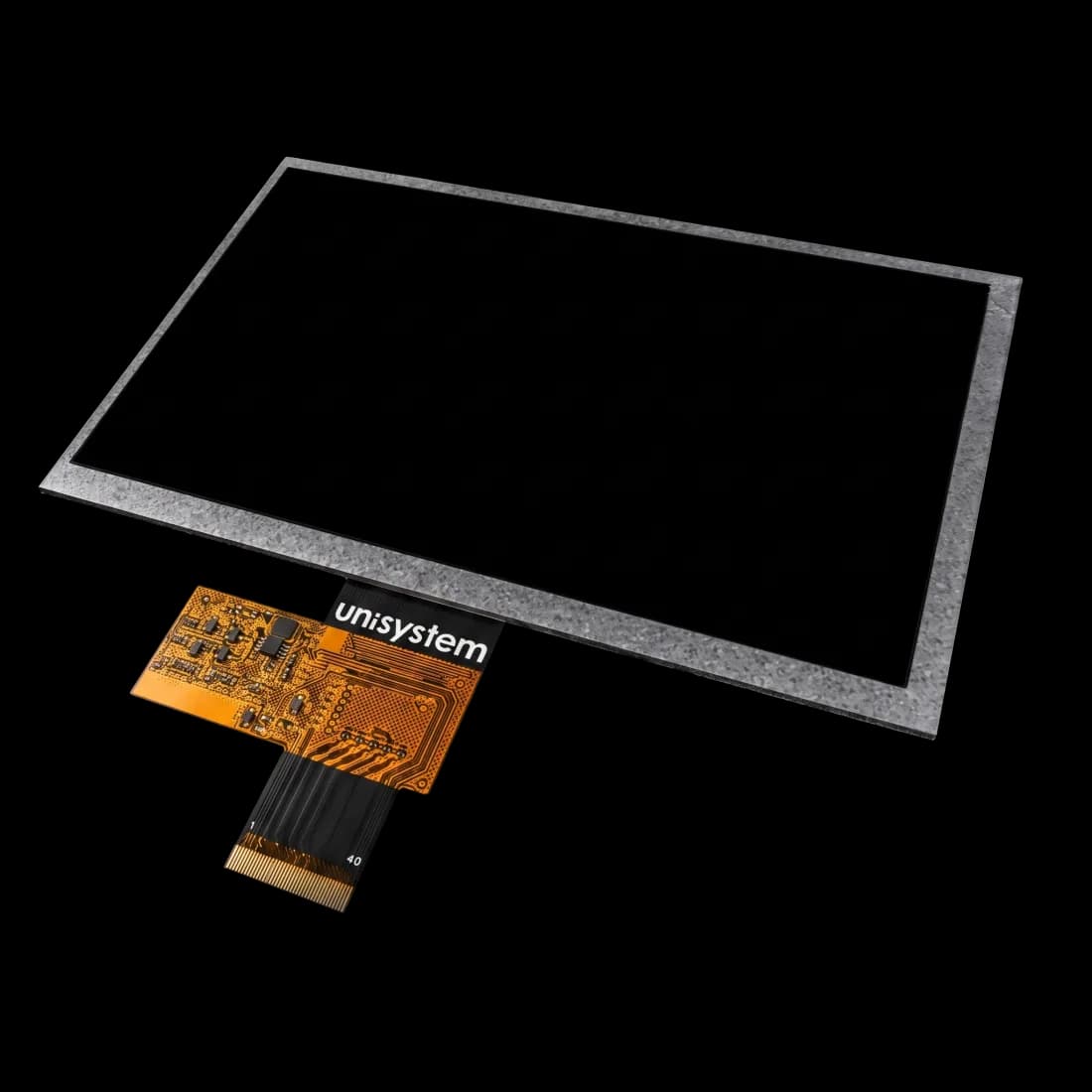

LITE
The right fit for indoor applications.
TFT LCD modules designed for stable indoor environments, with the functionality and interfaces your application actually needs.
Explore the possibilitiesDESIGNED WITH THESE IN MIND
- Operator panels
- Building automation
- Access control
- Indoor devices
UNISYSTEM / INDUSTRIAL02 — 03

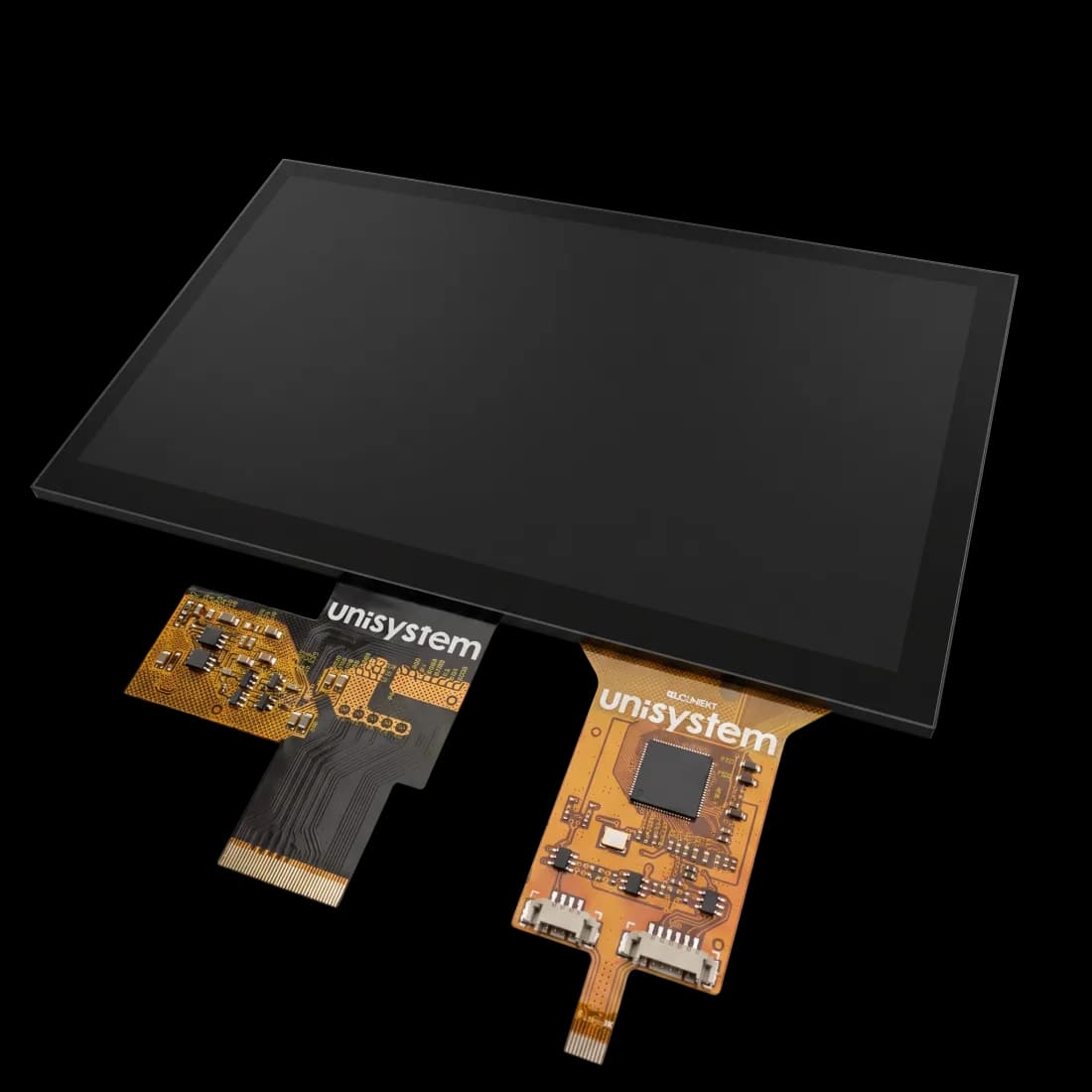

CORE
The industrial standard for demanding devices.
TFT LCD modules for intensive indoor use, where stable performance, durability and higher technical parameters matter.
Explore the possibilitiesDESIGNED WITH THESE IN MIND
- HMI panels
- Machine control
- Medical & laboratory
- Self-service terminals
- Logistics
UNISYSTEM / OUTDOOR03 — 03

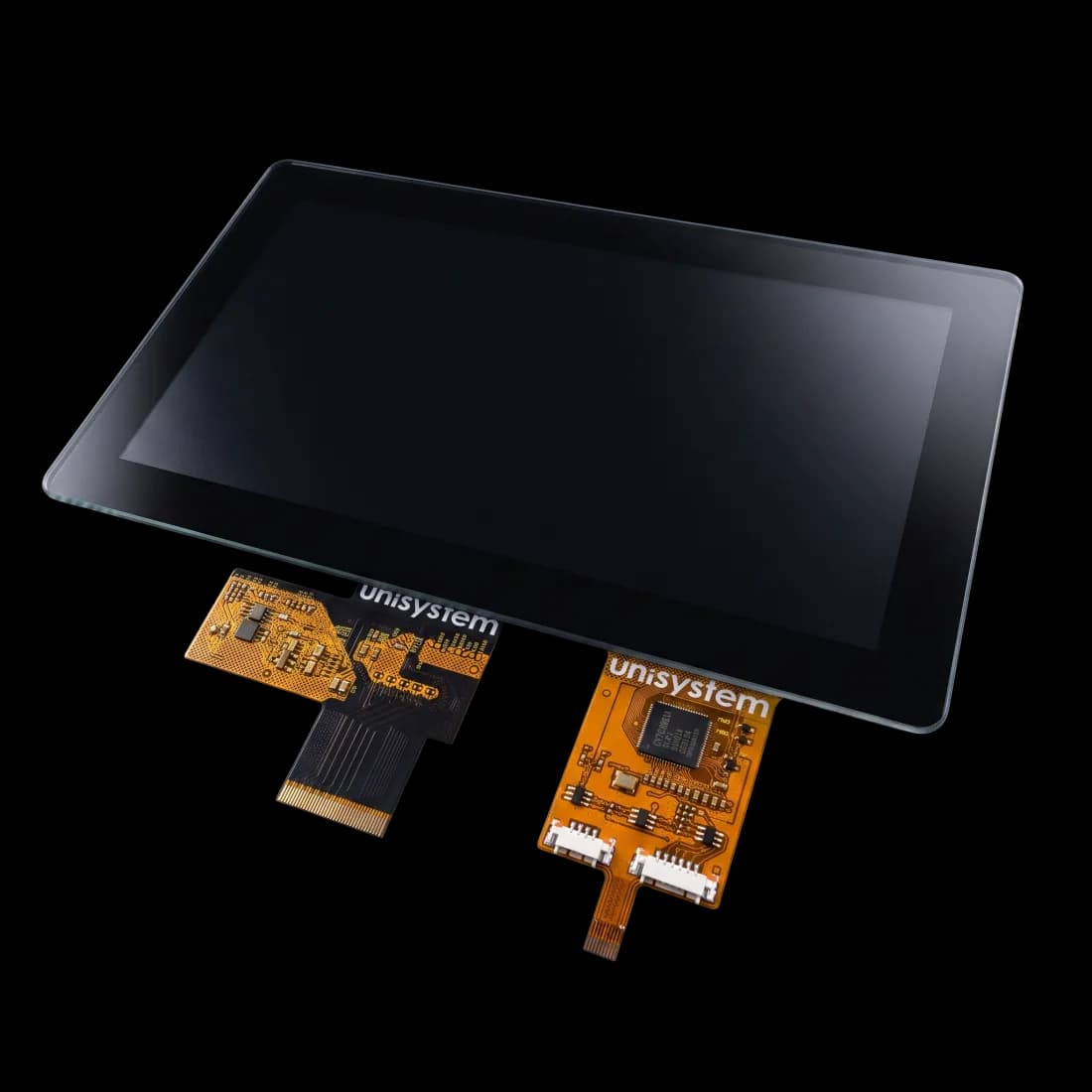

PRO
Ready for demanding outdoor conditions.
TFT LCD modules for demanding outdoor applications, where readability, durability and stable performance are critical.
Explore the possibilitiesDESIGNED WITH THESE IN MIND
- Vending machines
- Kiosks
- Self-service terminals
- Passenger information
- Parking equipment
MADE FOR YOUR WORLDLITE / CORE / PRO
Choose the right line
for your application.
Start with the operating environment. Together, we’ll find the line and configuration that fit your device.
Lite, Core or Pro? | |||
| Environment | |||
| Operating conditions | Indoor | Industrial | Outdoor |
| Sizes | |||
| 7" | ✓ | ✓ | ✓ |
| 10.1" | ✓ | ✓ | ✓ |
| 12.1" | – | ✓ | ✓ |
| 15.6" | – | ✓ | ✓ |
| Parameters | |||
| Brightness cd/m² | 600 | 750–1000 | 2000 |
| Interfaces | RGB · MIPI DSI · LVDS | ||
| MTBF | 30,000 h | 100,000 h | 100,000 h |
| With a touch panel | |||
| Brightness cd/m² | 500 | 600–900 | 1700 |
| Controller | Goodix GT928 | ILITEK ILI2520 | ILITEK ILI2520 |
| Cover glass thickness | 1.1 mm | 1.1 mm | 4 mm |
| Cover glass finish | with mounting tape and rounded corners, or without tape | ||
| Optical bonding | ✓ | ✓ | ✓ |
| Anti-UV layer | – | – | ✓ |
| IR layer | – | – | selected models |
Conceptual visualizations. Appearance and configuration depend on the selected module.
