WEG010016ALPP5N00100
Winstar Longlife OLED graphic display module
Serienproduktion? Angebot anfordern →
Vollständige technische Daten
| Größe (Zoll) | 2.4 |
| Auflösung | 100x16 |
| Hersteller | Winstar |
| Anzeigefarbe | Gelb |
| Touchpanel | Keine |
| Schnittstelle | 6800, 8080 |
| Controller | WS0010 |
| Spannung | 5V |
| Betriebstemperatur (°C) | -40 ~ 80 |
| Lagertemperatur (°C) | -40 ~ 80 |
| Aktive Fläche (mm) | 59.95x11.15 |
| Außenmaße (mm) | 80.0x36.0x10.0 |
Beschreibung

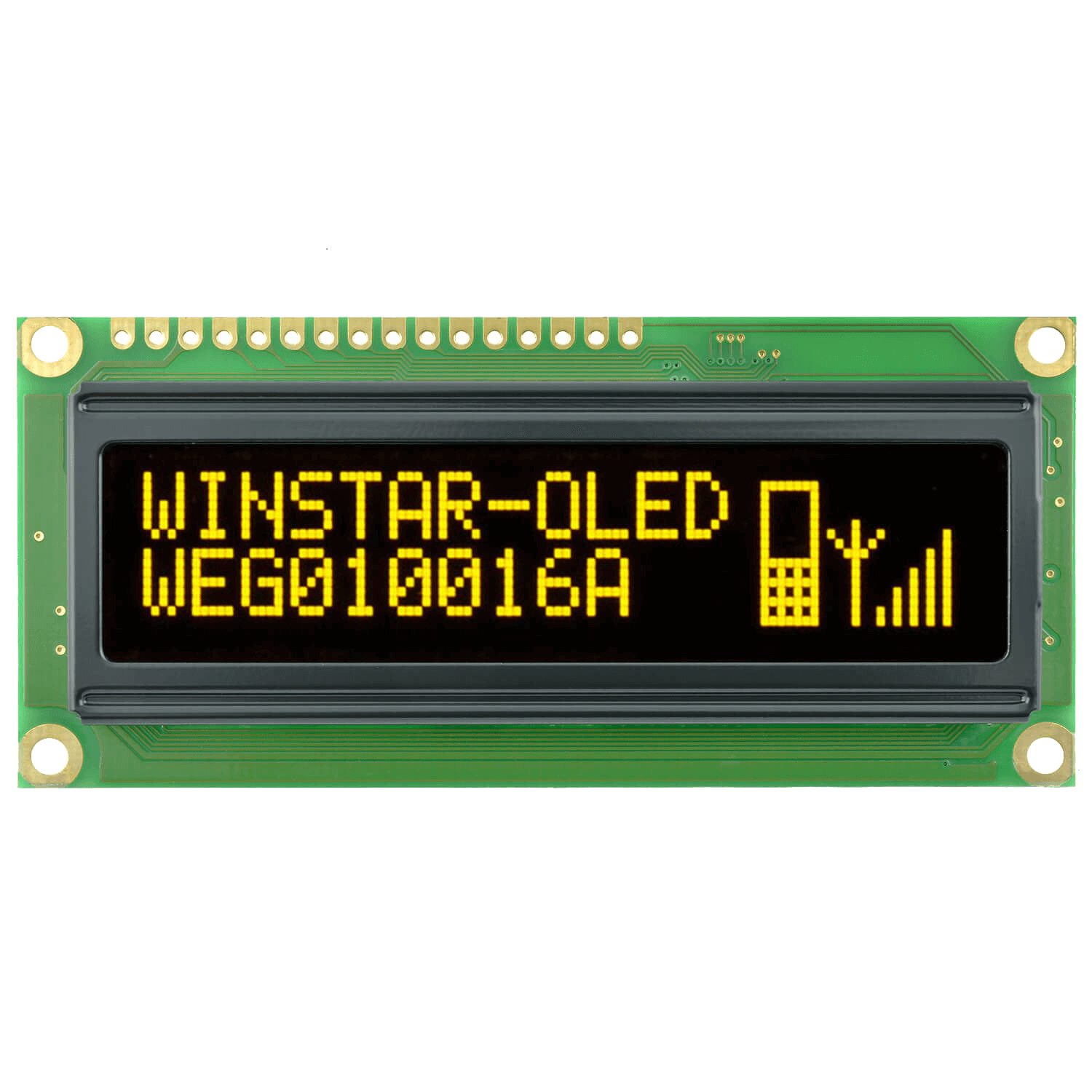

Longlife OLED graphic display module WEG010016ALPP5N00100 is Winstar Co. OLED of 100×16, COB type (Chip On Board) and has yellow color of displayed content. The module is equipped with WS0010 controller that enables using the following interfaces: 4-bit and 8-bit
This product is the recommended 1:1 replacement for WEG010016ALPP5N00000!
