Wide-angle 7-inch LCD-TFT from Winstar

Wide-angle 7-inch LCD-TFT from Winstar

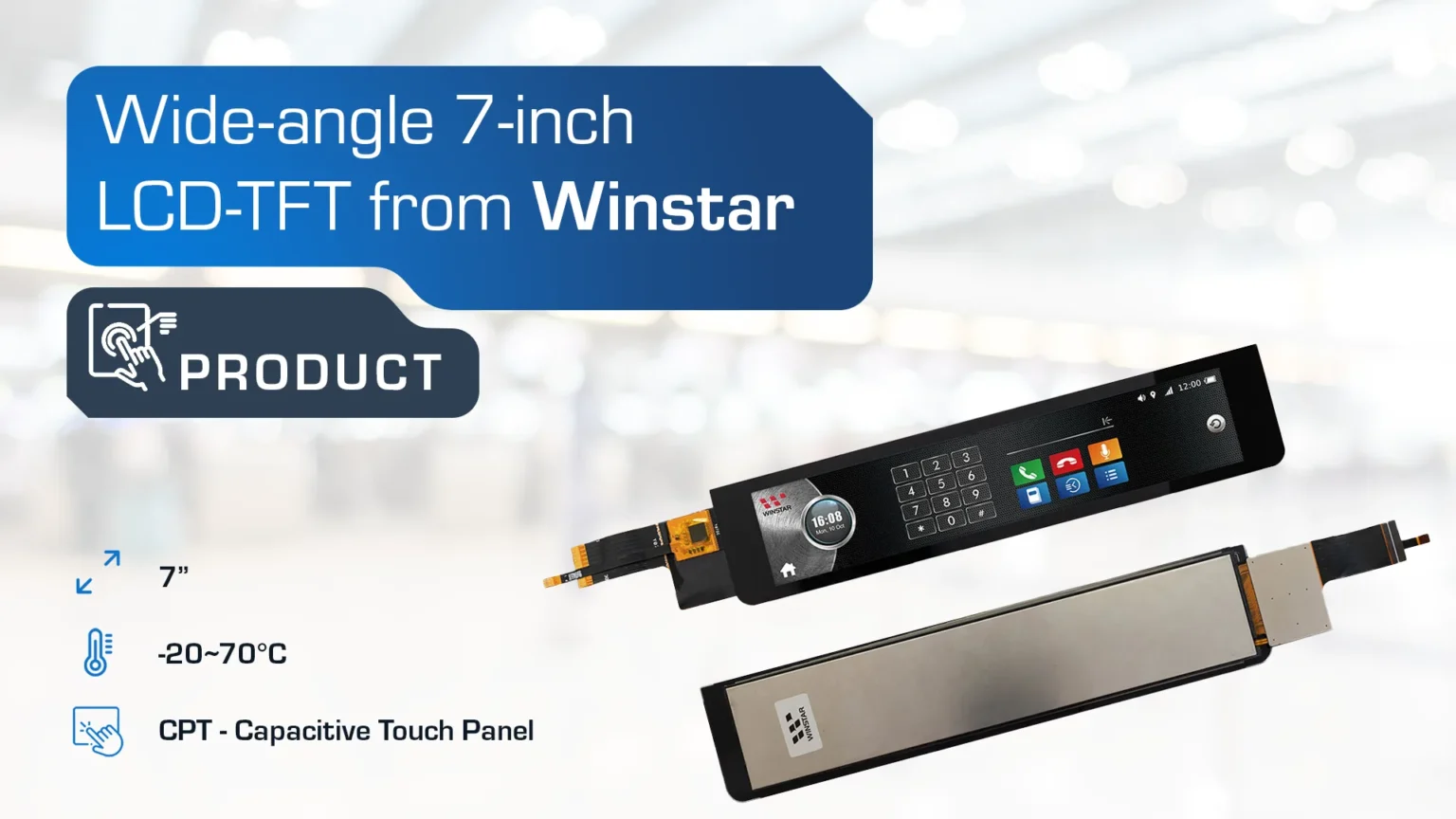

A new 7-inch LCD-TFT panel with an unusual elongated 1:5 aspect ratio and the designation WF70C3TYAB4MNC10 has appeared in Unisystem’s offer. It is a “bar display” design, specifically designed for devices that, by virtue of their functions, require additional space to present content in portrait orientation.

The standard aspect ratio of TFT LCD panels is usually 4:3 or 16:9. However, for some applications, the Bar Type format may be more suitable, which is perfect for displaying specific information. Bar Type TFT-LCD displays from Winstar are ideal for industrial equipment, automotive applications, server systems, POS systems and dynamic information displays. Winstar offers a variety of sizes, including 3.9 inches, 4.6 inches and 5.2 inches.

Parameters of the WF70C3TYAB4MNC10 model

The WF70C3TYAB4MNC10 is an advanced LCD-TFT display that offers users outstanding visuals and wide viewing angles (80°/80°/80°/80°/80°) thanks to its high 280×1424 pixel resolution and IPS technology. As an added bonus, the capacitive touch panel (PCAP) with OCA technology increases durability and improves image clarity.

The main difference between the models in question is the addition in the variant of the

The table summarizes the most important parameters of the model WF70C3TYAB4MNC10 :

parameter Model WF70C3TYAB4MNC10
diagonal 7″
resolution240×1424 px
aspect ratio1:5
active area 33.60×170.88 mm
clarity 500 cd/m2
angles of observation 80°/80°/80°/80°
interfaceMIPI DSI
module dimensions43.3 mm x 201.0 mm x 5.23 mm
backlight LED
LED lifespan 15,000 hrs.
operating temperature range -20~70°C
touch panel capacitive (PCAP, OCA)

Model application WF70C3TYAB4MNC10

In creating this display, Winstar emphasized application flexibility, allowing it to fit the specific requirements of different industries. This display is used in a wide range of devices, such as medical equipment, servers, measuring devices, kitchen displays, freezers, air conditioners and many others:

  • In infusion pumps – for process presentation and alerts;
  • In 1U servers – log display;
  • in a variety of specialized measuring devices – reading values from sensors;
  • In laboratories – monitoring the course of procedures;
  • In professional catering equipment – parameter control;
  • On CNC machine operator positions;

To sum up, WF70C3TYAB4MNC10 is a high-quality, functional display that opens up new possibilities for device manufacturers and designers thanks to its unique features.

2024-02-16
