WFN0500A2T08ADNN000

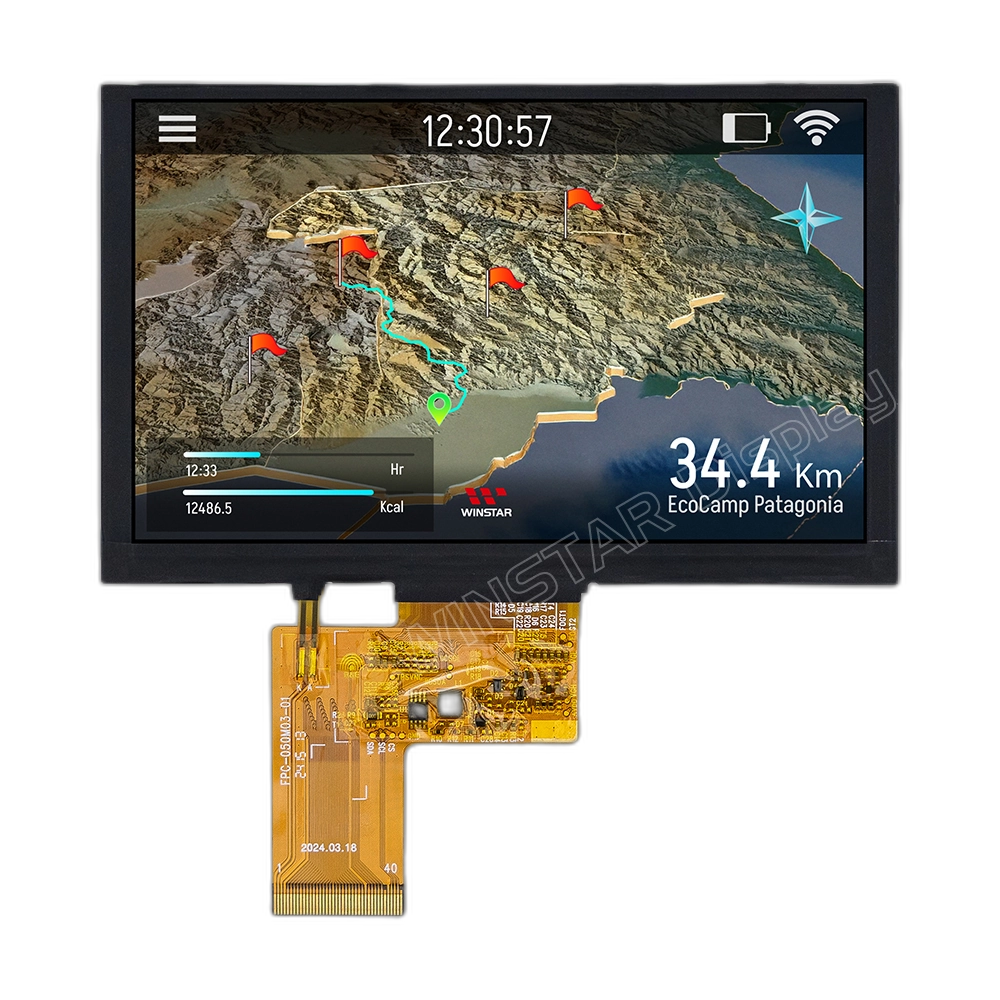

Winstar 5" 800x480 LCD-TFT display
Serienproduktion? Angebot anfordern →
Vollständige technische Daten
| Größe (Zoll) | 5 |
| Auflösung | 800x480 |
| Helligkeit (cd/m²) | 200 |
| Hersteller | Winstar |
| Seitenverhältnis | 5:3 |
| Schnittstelle | RGB |
| Controller | JD9165 |
| Betriebstemperatur (°C) | -30 ~ 85 |
| Lagertemperatur (°C) | -30 ~ 85 |
| Aktive Fläche (mm) | 108.0x64.8 |
| Außenmaße (mm) | 120.8x75.9 |
Beschreibung
Discover the WFN0500A2T08ADNN000 – a compact 5′ LCD-TFT display with crisp 800×480 resolution. This Winstar module features RGB 24-bit interface and JD9165 controller for seamless integration. With an industrial operating temperature range of -30°C to +85°C, it’s ideal for demanding environments. The active area of 108.0×64.8mm provides ample display space in a compact 120.8×75.9mm outline. Perfect for industrial applications requiring a reliable, high-quality display. Choose WFN0500A2T08ADNN000 for your next project.
