WFM0108A2TAJASNN000

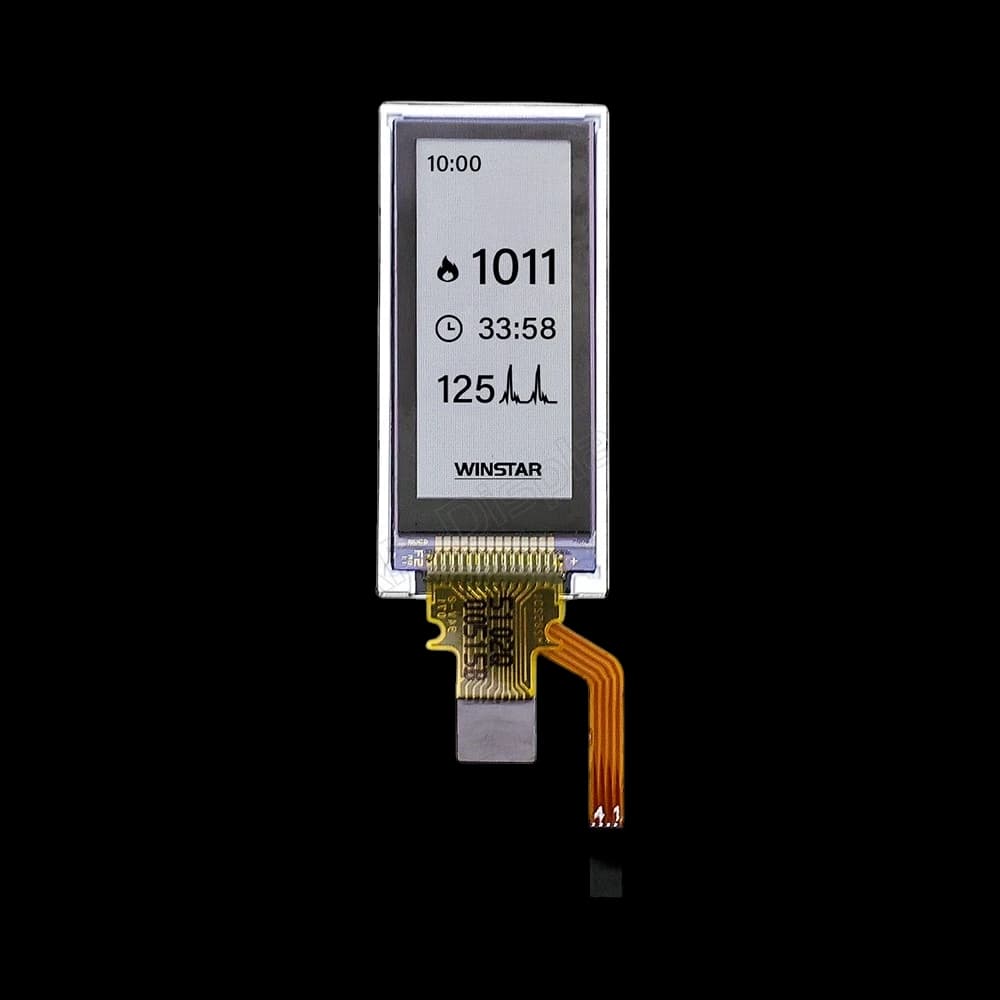

Winstar MIP 1.08' Reflective Display Module
Mass production? Get a quote →
Full Technical Specifications
| Size (inch) | 1.08 |
| Resolution | 160x68 |
| Brightness (cd/m²) | 30 |
| Manufacturer | Winstar |
| Viewing Direction | 6:00 |
| Content Color | Black |
| Background Color | White |
| Polarizer Type | Reflective |
| Interface | SPI |
| Operating temp. (°C) | -20 ~ 70 |
| Storage temp. (°C) | -30 ~ 80 |
| Active area (mm) | 25.28x10.744 |
| Outline Dimensions (mm) | 34.84x16.17x2.08 |
| Special | 1-bit memory in each pixel for in-panel data storage, super low power consumption |
Description
Meet the WFM0108A2TAJASNN000, a 1.08' 160x68 Memory-In-Pixel reflective LCD from Winstar built for battery-powered, always-on applications. Its hard-coated monochrome panel renders sharp black text on a white background and stays readable in bright sunlight across a rugged -20~70°C range. The energy-saving SPI interface and 1-bit internal memory simplify design and extend runtime. Perfect for smart meters, wearables and instrumentation, the WFM0108A2TAJASNN000 combines low power with dependable visibility.
