WFM0103A2TABASNN000
Winstar MIP 1.03' Reflective Display Module
Mass production? Get a quote →
Full Technical Specifications
| Special | 1-bit memory in each pixel for in-panel data storage, super low power consumption |
| Interface | SPI |
| Resolution | 128x128 |
| Size (inch) | 1.03 |
| Manufacturer | Winstar |
| Content Color | Black |
| Polarizer Type | Reflective |
| Active area (mm) | 18.56x18.56 |
| Background Color | White |
| Viewing Direction | 8:00 |
| Brightness (cd/m²) | 30 |
| Storage temp. (°C) | -30 ~ 80 |
| Operating temp. (°C) | -20 ~ 70 |
| Outline Dimensions (mm) | 24.29x28.66x1.78 |
Description

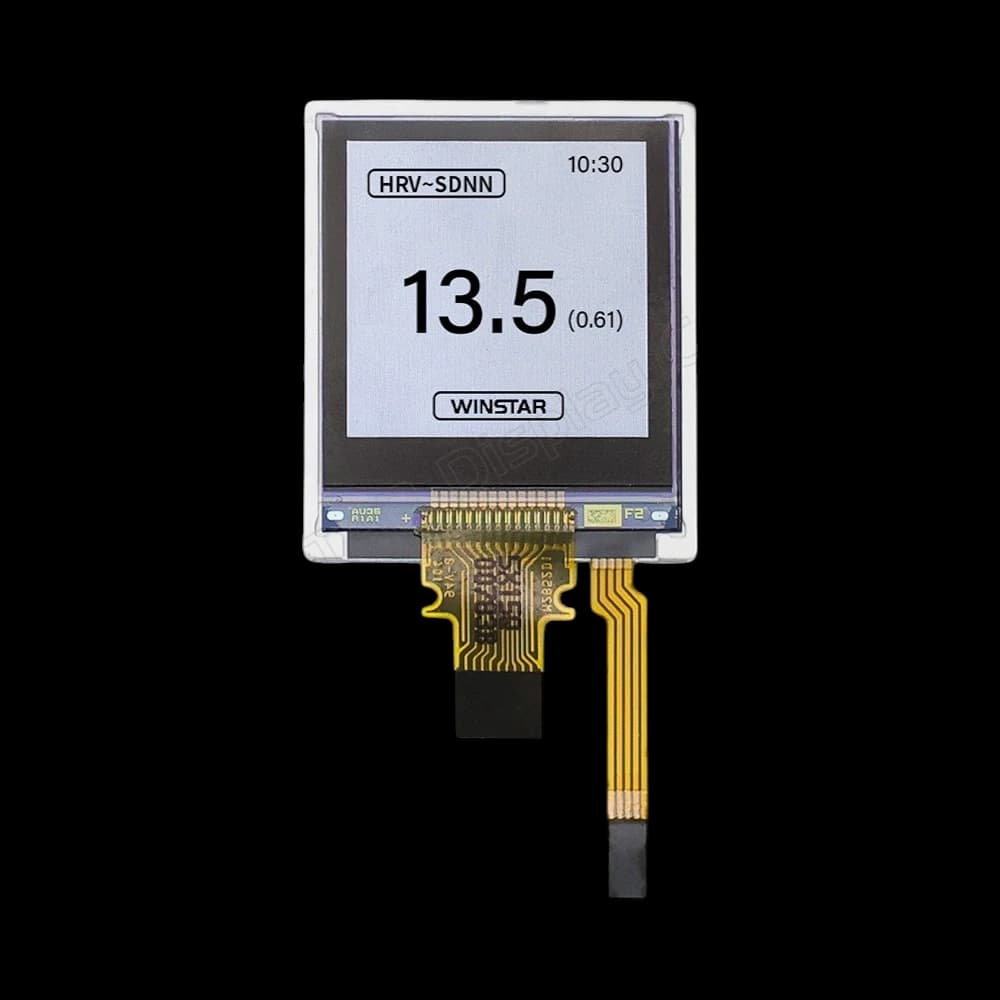

The WFM0103A2TABASNN000 is a 1.03' 128x128 Memory-In-Pixel reflective LCD from Winstar, engineered for ultra-low-power, always-on displays. This sunlight-readable monochrome panel shows crisp black content on a bright white background across a rugged industrial -20~70°C range. A simple SPI interface and built-in 1-bit pixel memory make integration effortless while slashing energy use. Ideal for wearables, meters and handheld devices, the WFM0103A2TABASNN000 delivers clarity, efficiency and reliability.
