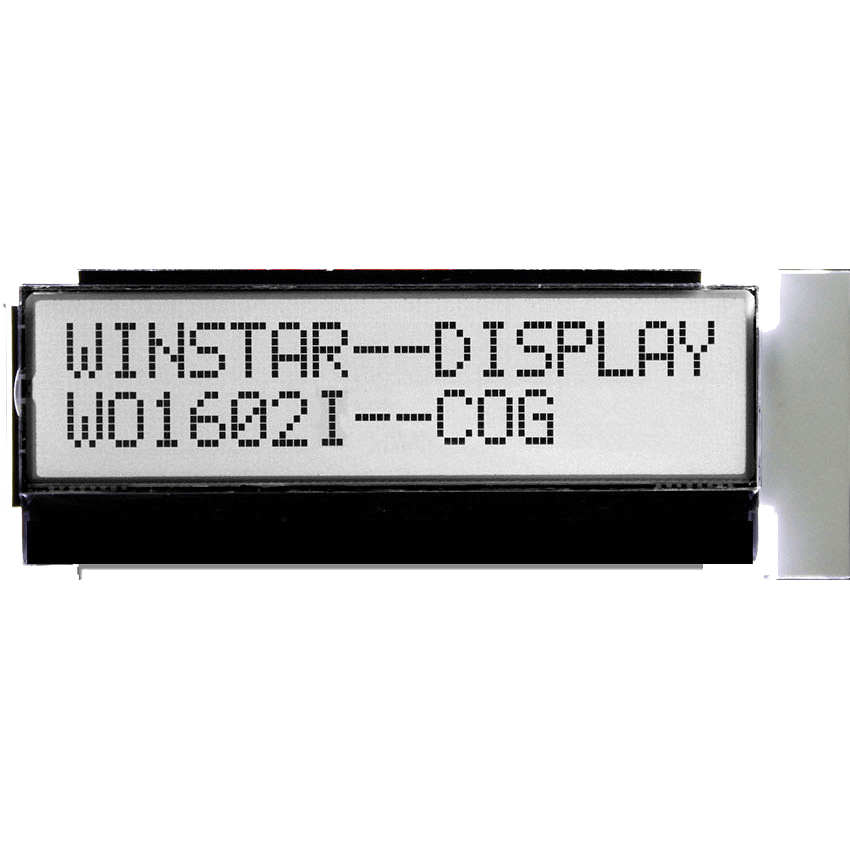

WO1602I-TFH-AT# – Winstar alphanumeric LCD display (16 characters x 2 lines, transflective, FSTN positive, white background, black characters)
Ask our team for:
| Characters x Rows | 16x2 |
|---|---|
| Content Color | Black |
| Background Color | White |
| Viewing Direction | 6:00 |
| Module type | COG - Chip on Glass |
| LCD Type | FSTN Positive |
| Polarizer Type | Transflective |
| Interface | I²C |
| Controller | HD44780 compatible |
| Fonts | English, Japanese |
| Active area (mm) | 38.0x8.0 |
| Outline Dimensions (mm) | 51.2x20.7x6.3 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Winstar |
Contact our experts – we’ll help you choose the optimal solution adapted to your needs.
This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.
| Characters x Rows | 16x1 |
|---|---|
| Content Color | Black |
| Background Color | White |
| Viewing Direction | 6:00 |
| Module type | COB - Chip on Board |
| LCD Type | FSTN Positive |
| Polarizer Type | Transflective |
| Interface | 6800, 8080 |
| Controller | HD44780 compatible |
| Fonts | Cyrillic, English |
| Active area (mm) | 59.62x6.56 |
| Outline Dimensions (mm) | 80.0x36.0x13.5 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Winstar |
| Characters x Rows | 16x1 |
|---|---|
| Content Color | Black |
| Background Color | White |
| Viewing Direction | 6:00 |
| Module type | COB - Chip on Board |
| LCD Type | FSTN Positive |
| Polarizer Type | Transflective |
| Interface | 6800, 8080 |
| Controller | HD44780 compatible |
| Fonts | English, Japanese |
| Active area (mm) | 94.84x9.66 |
| Outline Dimensions (mm) | 122.0x33.0x13.5 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Winstar |
| Characters x Rows | 16x2 |
|---|---|
| Content Color | Black |
| Background Color | Yellow-green |
| Viewing Direction | 6:00 |
| Module type | COB - Chip on Board |
| LCD Type | STN Positive |
| Polarizer Type | Transflective |
| Interface | 6800, 8080 |
| Controller | HD44780 compatible |
| Fonts | Cyrillic, English |
| Active area (mm) | 56.20x11.5 |
| Outline Dimensions (mm) | 84.0x44.0x13.2 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Winstar |
| Characters x Rows | 16x2 |
|---|---|
| Content Color | White |
| Background Color | Blue |
| Viewing Direction | 6:00 |
| Module type | COB - Chip on Board |
| LCD Type | STN Negative |
| Polarizer Type | Transmissive |
| Interface | 6800, 8080 |
| Controller | HD44780 compatible |
| Fonts | Cyrillic, English |
| Active area (mm) | 56.20x11.5 |
| Outline Dimensions (mm) | 80.0x36.0x10.00 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Winstar |
| Characters x Rows | 16x1 |
|---|---|
| Content Color | Black |
| Background Color | Yellow-green |
| Viewing Direction | 6:00 |
| Module type | COB - Chip on Board |
| LCD Type | STN Positive |
| Polarizer Type | Transflective |
| Interface | 6800, 8080 |
| Controller | HD44780 compatible |
| Fonts | English, Japanese |
| Active area (mm) | 94.84x9.66 |
| Outline Dimensions (mm) | 122.0x33.0x13.5 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Winstar |
| Characters x Rows | 16x1 |
|---|---|
| Content Color | Black |
| Background Color | Yellow-green |
| Viewing Direction | 6:00 |
| Module type | COB - Chip on Board |
| LCD Type | STN Positive |
| Polarizer Type | Transflective |
| Interface | 6800, 8080 |
| Controller | HD44780 compatible |
| Fonts | Cyrillic, English |
| Active area (mm) | 59.62x6.56 |
| Outline Dimensions (mm) | 80.0x36.0x13.2 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Winstar |
