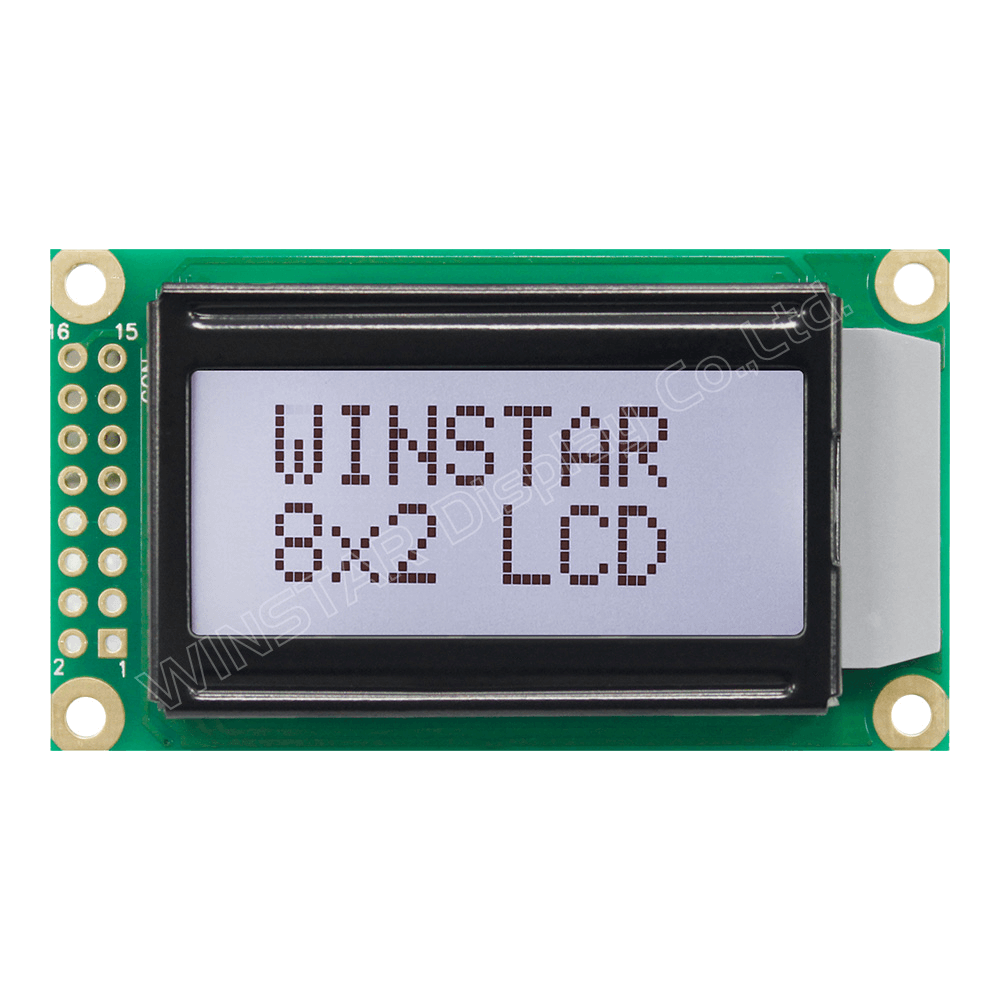

Enhance your display solutions with the WH0802A1-TFH-JT# alphanumeric LCD by Winstar. Featuring an 8×2 character configuration, this display delivers crisp black text on a pristine white background, ensuring optimal readability. The WH0802A1-TFH-JT# supports English and Japanese fonts, making it versatile for various applications. Its 6:00 viewing direction and FSTN Positive technology guarantee clear visibility from different angles. Built with a robust COB design and interfacing via 6800, this module is reliable and efficient. With an operational temperature range of -20°C to 70°C and storage capability from -30°C to 80°C, it withstands diverse environments. Compact yet powerful, its active area measures 27.81×11.5 mm within an outline of 58.0×32.0x13.2 mm. Ideal for both consumer and industrial use, this WH0802A1-TFH-JT# display is your go-to choice for high-quality, durable alphanumeric displays.
| Characters x Rows | 8x2 |
|---|---|
| Content Color | Black |
| Background Color | White |
| Viewing Direction | 6:00 |
| Module type | COB - Chip on Board |
| LCD Type | FSTN Positive |
| Polarizer Type | Transflective |
| Interface | 6800 |
| Controller | ST7066 |
| Fonts | English, Japanese |
| Active area (mm) | 27.81×11.5 |
| Outline Dimensions (mm) | 58.0×32.0x13.2 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Winstar |
This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.
