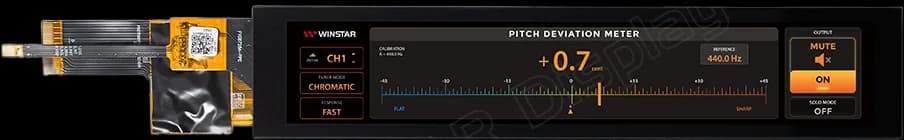

WF70C9SYAB4MNC1B Winstar display · 7″ TFT LCD 280×1424 · MIPI
Mass production? Get a quote →
Description
Looking for a slim bar-type display? The WF70C9SYAB4MNC1B is a 7" IPS LCD-TFT panel with an elongated 280x1424 resolution and 400 cd/m² brightness. Full 80/80/80/80 viewing angles and 1000:1 contrast keep images clear from every direction. Featuring a 4-lane MIPI interface, capacitive touch with a 1.1 mm cover lens and optical bonding, plus a wide -20~70°C operating range, the WF70C9SYAB4MNC1B is an excellent choice for industrial HMI, smart home and instrumentation applications.
Full Technical Specifications
| Size (inch) | 7 |
| Resolution | 280x1424 |
| Brightness (cd/m²) | 800 |
| Matrix type | IPS |
| Manufacturer | Winstar |
| Aspect ratio | 1:5 |
| Viewing Direction | Full |
| Touch Panel | Capacitive |
| Interface | MIPI |
| Controller | GT911 |
| Mounting Frame | No |
| Operating temp. (°C) | -20 ~ 70 |
| Storage temp. (°C) | -30 ~ 80 |
| Active area (mm) | 33.6x170.88 |
| Outline Dimensions (mm) | 38.2x186.62 |
| Special | Optical Bonding |
