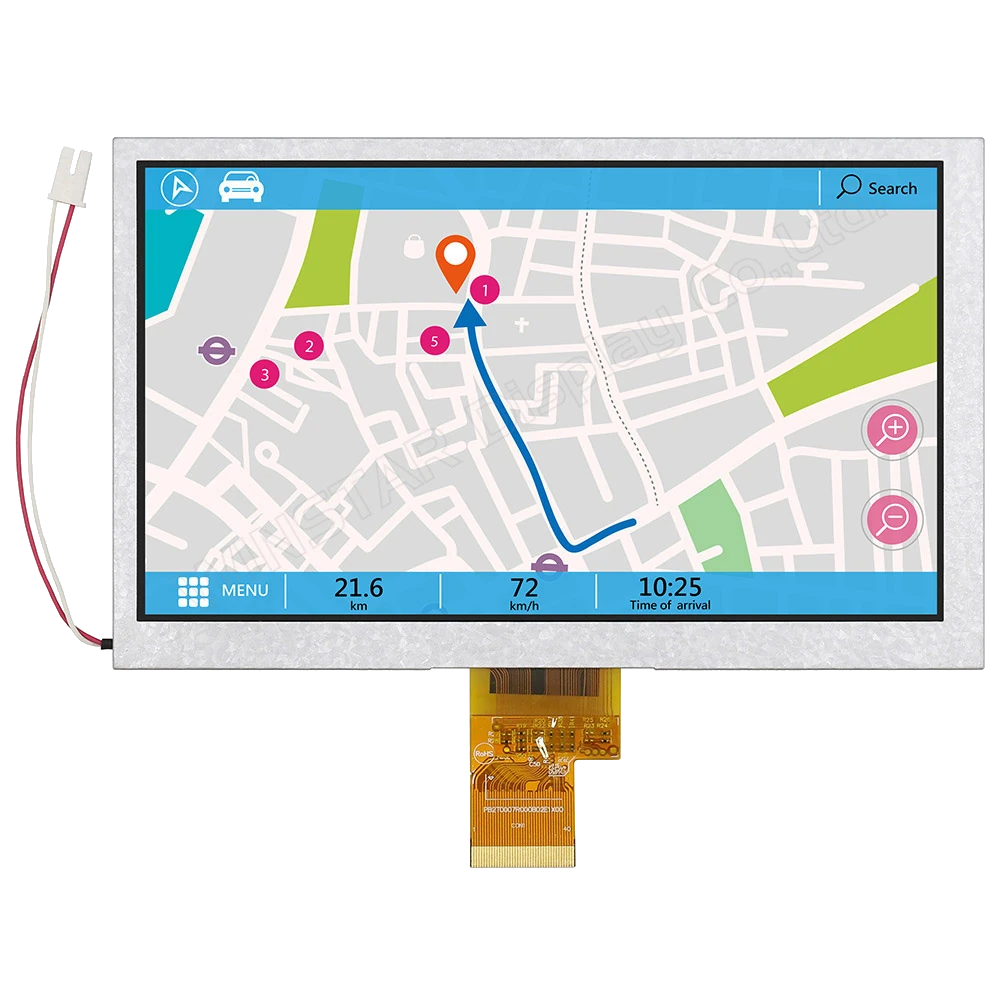

WF70A7SZAHLNN0
Winstar 7" 1024x600 LCD-TFT display
Mass production? Register →
Full Technical Specifications
| Interface | LVDS |
| Controller | EK73215BCGA, EK79001HE |
| Resolution | 1024x600 |
| Size (inch) | 7 |
| Touch Panel | None |
| Aspect ratio | 16:9 |
| Manufacturer | Winstar |
| Active area (mm) | 154.2144x85.92 |
| Viewing Direction | 12:00 |
| Brightness (cd/m²) | 900 |
| Storage temp. (°C) | -30 ~ 80 |
| Operating temp. (°C) | -20 ~ 70 |
| Outline Dimensions (mm) | 169.9x103.4 |
Description
Discover the superior clarity and performance of the WF70A7SZAHLNN0 Winstar 7" LCD-TFT display. With a crisp resolution of 1024×600 and an impressive brightness of 900 cd/m², this display ensures vibrant visuals in any lighting condition. Its 16:9 aspect ratio and 12:00 viewing direction provide a seamless viewing experience. The robust LVDS interface and advanced EK73215BCGA, EK79001HE controllers guarantee reliable performance and exceptional image quality. Designed for versatility, the WF70A7SZAHLNN0 operates smoothly within a temperature range of -20°C to 70°C, making it ideal for various applications. With dimensions of 169.9×103.4mm and an active area of 154.2144×85.92mm, this display integrates effortlessly into your projects. Trust Winstar for durable, high-quality displays that elevate your visual experience.
