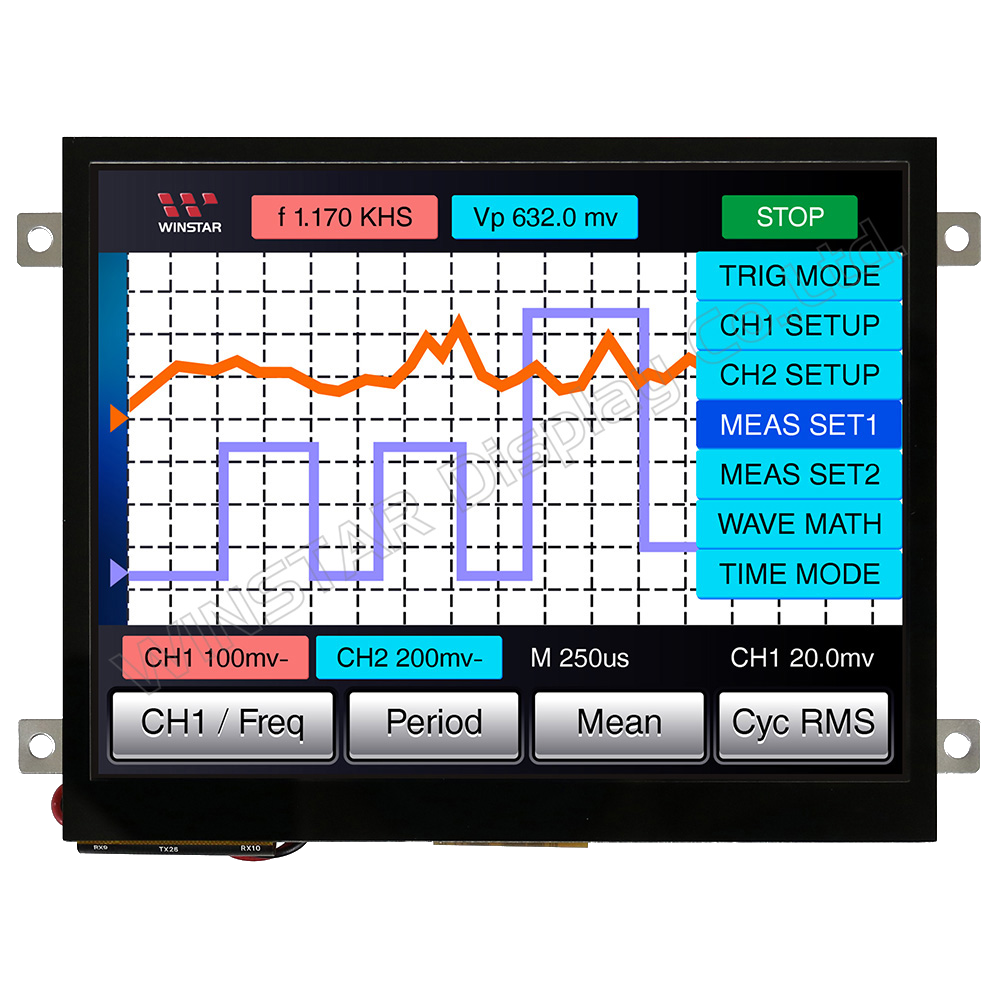

Elevate your display experience with the WF57A2TIBCDBG0 Winstar 5.7" 320×240 LCD-TFT display. Designed for clarity and durability, this display boasts a brightness of 700 cd/m², ensuring vivid visuals even in challenging lighting. The 4:3 aspect ratio and a resolution of 320×240 pixels deliver sharp, detailed images, perfect for professional applications. Its capacitive touch panel offers responsive interaction, while the SSD1963 controller and 8080 interface ensure seamless integration. With an operating temperature range from -20°C to 70°C, the WF57A2TIBCDBG0 is built to perform under extreme conditions. Measuring 115.2mm x 86.4mm in active area and 141.12mm x 101.55mm in outline dimensions, it fits effortlessly into any setup. Trust in Winstar's expertise for a reliable display solution that meets your needs.
| Size (inch) | 5.7 |
|---|---|
| Resolution | 320x240 |
| Aspect ratio | 4:3 |
| Brightness (cd/m²) | 700 |
| Viewing Direction | 12:00 |
| Interface | 8080 |
| Controller | SSD1963 |
| Touch Panel | Capacitive |
| Active area (mm) | 115.2x86.4 |
| Outline Dimensions (mm) | 141.12x101.55 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Manufacturer | Winstar |
This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.
