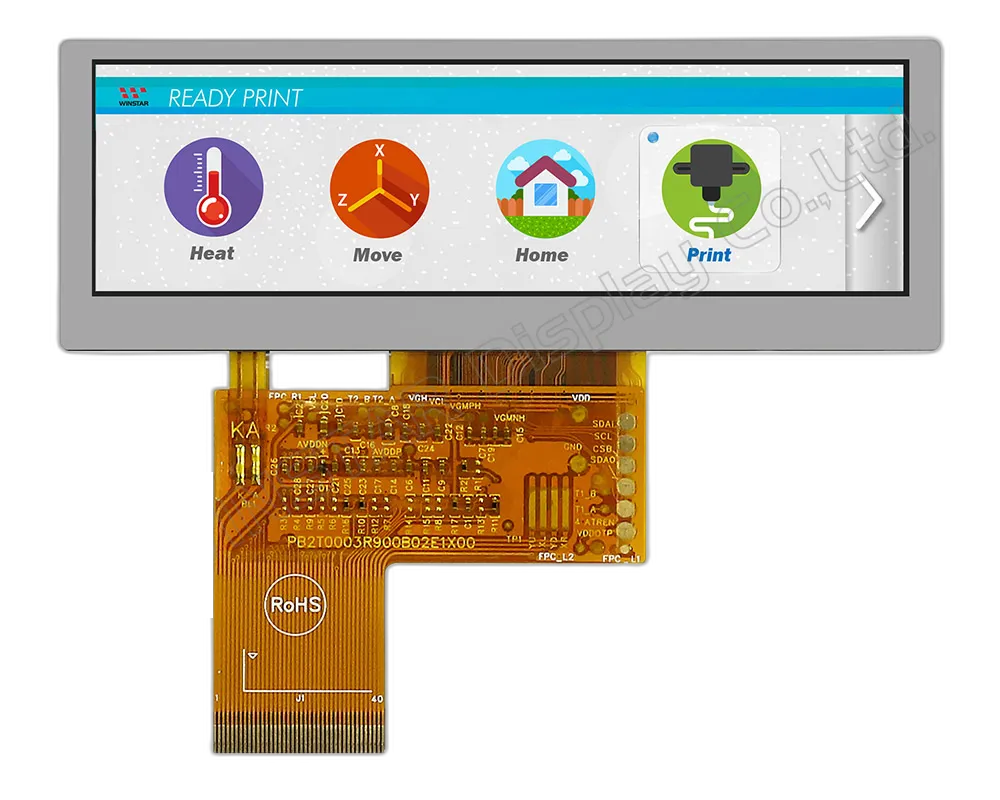

WF39BSQASDNN0 Winstar 3.9″ 480×128 LCD-TFT display

Unisystem » Products » LCD-TFT displays » WF39BSQASDNN0 Winstar 3.9″ 480×128 LCD-TFT display

The WF39BSQASDNN0 Winstar 3.9″ LCD-TFT display delivers exceptional clarity with a resolution of 480 x 128 and a brightness of 1000 cd/m². Designed for versatility, it operates efficiently in extreme temperatures, from -30°C to 80°C, ensuring reliability in any environment. The 15:4 aspect ratio and generous active area of 95.04 x 25.34 mm make it perfect for various applications. With its RGB interface and HX8278-A controller, the WF39BSQASDNN0 is your go-to solution for high-quality visual performance. Upgrade your display experience today!

Datasheet

Ask our team for:

Size (inch)3.9
Resolution480x128
Aspect ratio15:4
Brightness (cd/m²)1000
Viewing Direction06:00
InterfaceRGB
ControllerHX8278-A
Touch PanelNone
Active area (mm)95.04x25.34
Outline Dimensions (mm)105.5x37.0
Operating temp. (°C)-30~80
Storage temp. (°C)-40~90
ManufacturerWinstar

Need a display for the designed device?

Contact our experts – we’ll help you choose the optimal solution adapted to your needs.

Industrial operating temperature range


This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.

High brightness

High brightness

High brightness of the image (high brightness) is a feature that is extremely useful when the display is in bright sunlight. With this functionality, the content displayed is fully readable by the user. High Brightness displays can be successfully used, for example, in exhibitions, kiosks, on trains and buses, as digital signage, or as part of other outdoor solutions.
