WF24LTYAJDNN0 Winstar display · 2.4″ TFT LCD 240×320 · SPI, 8080, 16080
Mass production? Get a quote →
Description
Discover the WF24LTYAJDNN0, a compact 2.4" LCD-TFT display from Winstar with 240×320 resolution, 500 cd/m² brightness and full viewing angles. The ILI9341V controller with flexible SPI and 8080 parallel interface options makes it easy to connect to a wide range of microcontrollers. Its 42.72×60.26mm outline fits space-constrained designs, while the -20°C to 70°C operating range ensures dependable performance. Choose the WF24LTYAJDNN0 for handheld devices, meters and smart home controls.
Full Technical Specifications
| Size (inch) | 2.4 |
| Resolution | 240x320 |
| Brightness (cd/m²) | 500 |
| Manufacturer | Winstar |
| Aspect ratio | 4:3 |
| Viewing Direction | Full |
| Touch Panel | None |
| Interface | SPI, 8080, 16080 |
| Controller | ILI9341V |
| Operating temp. (°C) | -20 ~ 70 |
| Storage temp. (°C) | -30 ~ 80 |
| Active area (mm) | 36.72x48.96 |

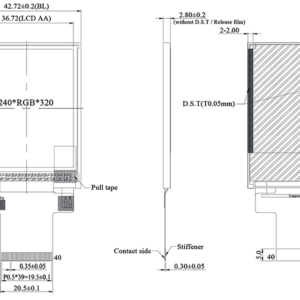

| Outline Dimensions (mm) | 42.72x60.26 |
