WF121BTXAPLNBA Winstar display · 12.1″ TFT LCD 1280×800 · LVDS

Brightness (cd/m²)300
Operating temp. (°C)-20 ~ 70
Touch PanelCapacitive
ControllerEK77526AHI205A

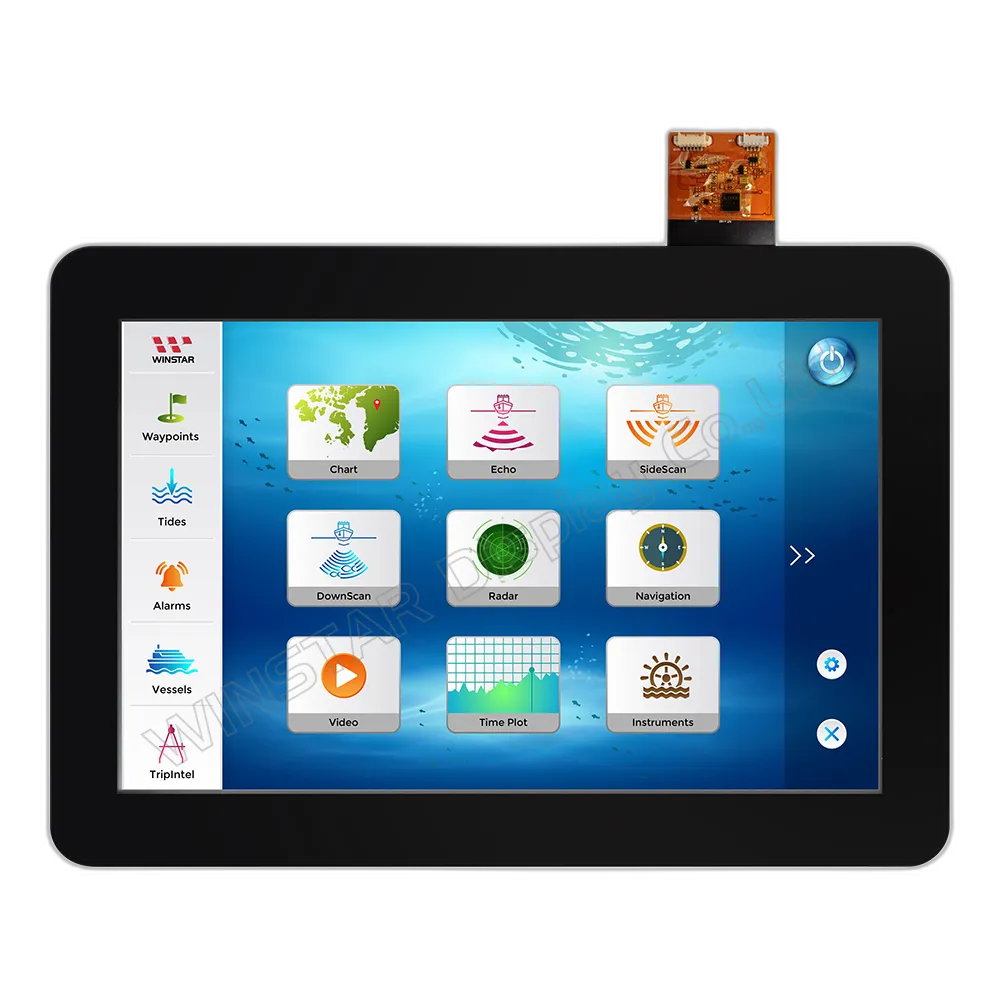

WF121BTXAPLNBA Winstar 12.1" 1280x800 LCD-TFT display
Zoom
Manufacturer:Winstar
Datasheet

Mass production? Get a quote →

Description

Upgrade your HMI with the WF121BTXAPLNBA, a 12.1" LCD-TFT display from Winstar delivering sharp 1280×800 resolution, 300 cd/m² brightness and full viewing angles. The integrated capacitive touch panel enables smooth, intuitive control, while the LVDS interface and EK77526AHI205A controller simplify system integration. Rated for -20°C to 70°C operation and housed in a 308.0×214.1mm outline, it fits industrial and embedded designs. Choose the WF121BTXAPLNBA for responsive, reliable touch performance.

Full Technical Specifications

Size (inch)12.1
Resolution1280x800
Brightness (cd/m²)300
ManufacturerWinstar
Aspect ratio16:9
Viewing DirectionFull
Touch PanelCapacitive
InterfaceLVDS
ControllerEK77526AHI205A
Operating temp. (°C)-20 ~ 70
Storage temp. (°C)-20 ~ 70
Active area (mm)261.12x163.2
Outline Dimensions (mm)308.0x214.1
