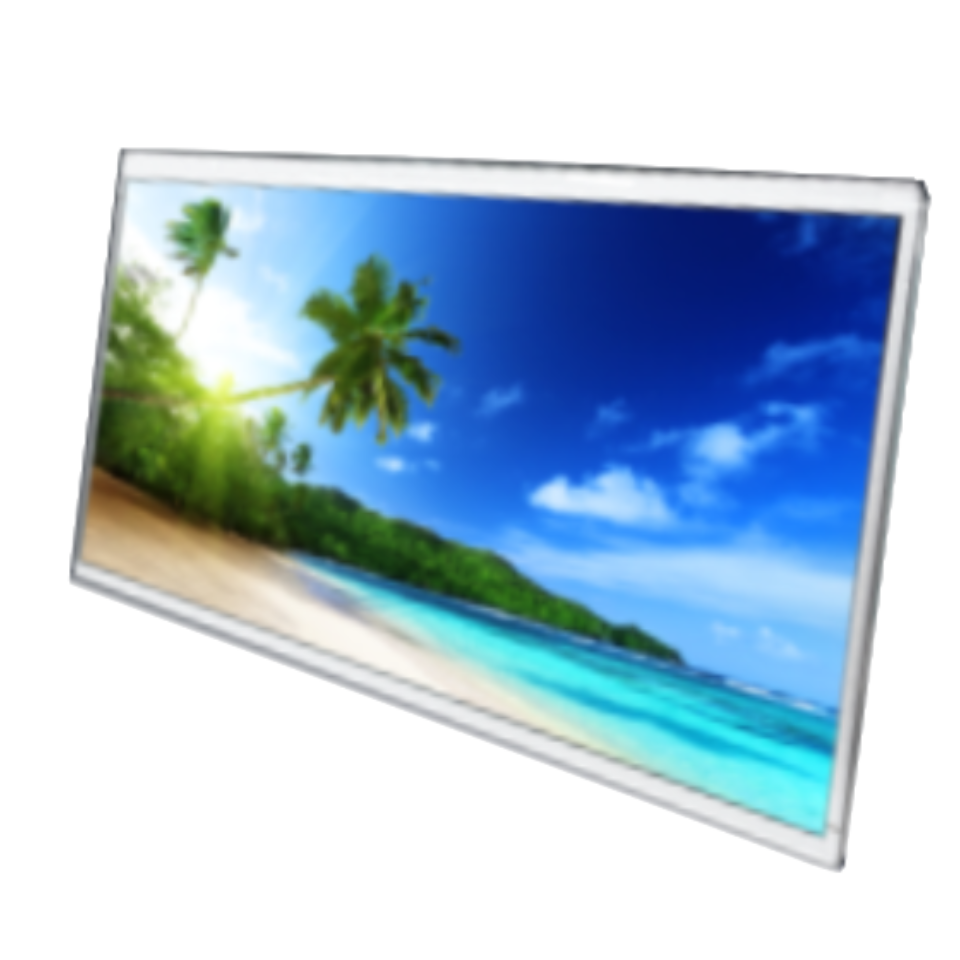

ULO1015-M Litemax – 10.1″ 1920×1200 LCD-TFT display

Unisystem » Products » LCD-TFT displays » ULO1015-M Litemax – 10.1″ 1920×1200 LCD-TFT display

Experience unparalleled clarity with the ULO1015-M Litemax 10.1" LCD-TFT display, designed for professionals demanding precision and reliability. With a stunning resolution of 1920 x1200 and a 16:10 aspect ratio, every detail comes to life in vivid clarity. The exceptional 1000 cd/m² brightness ensures perfect visibility even in the brightest environments, while the 1000:1 contrast ratio delivers deep blacks and vibrant colors for dynamic viewing. Versatile connectivity options with DP, HDMI, and LVDS interfaces make the ULO1015-M compatible with a variety of devices, providing seamless integration into any setup. Whether you're working in extreme temperatures ranging from -20°C to 70°C or need a robust display for intensive tasks, this Litemax product excels with its durable design. Compact with active dimensions of 216.8 x135.5 mm and a sleek outline of 232.1 x151.7 mm, it's the ideal choice for space-conscious applications. Elevate your visual experience with the ULO1015-M today.

Datasheet

Ask our team for:

Size (inch)10.1
Resolution1920x1200
Aspect ratio16:10
Brightness (cd/m²)1000
Contrast1000
InterfaceDP, HDMI, LVDS
Active area (mm)216.8x135.5
Outline Dimensions (mm)232.1x151.7
Operating temp. (°C)-20~70
ManufacturerLitemax

Need a display for the designed device?

Contact our experts – we’ll help you choose the optimal solution adapted to your needs.

Industrial operating temperature range


This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.

Full observation angles

Full observation angles

Using an IPS/MVA (or a variation thereof) matrix, the display is readable from all angles. There is no grayscale inversion effect that characterizes popular TN matrices. Also, the decrease in contrast when increasing the viewing angle is much lower.

High brightness

High brightness

High brightness of the image (high brightness) is a feature that is extremely useful when the display is in bright sunlight. With this functionality, the content displayed is fully readable by the user. High Brightness displays can be successfully used, for example, in exhibitions, kiosks, on trains and buses, as digital signage, or as part of other outdoor solutions.
