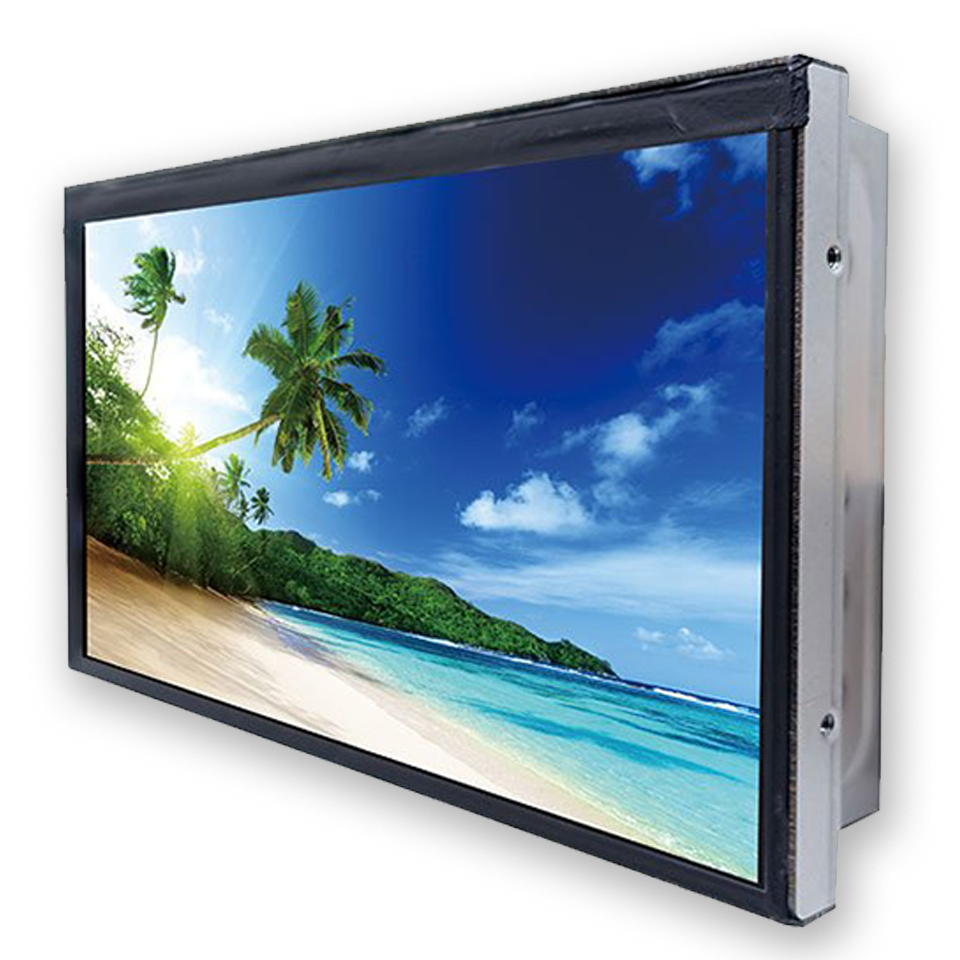

ULF0703-T Litemax – 7.0″ 1280×800 LCD-TFT display

Unisystem » Products » Displays LCD-TFT » ULF0703-T Litemax – 7.0″ 1280×800 LCD-TFT display

Elevate your display experience with the ULF0703-T Litemax 7.0" LCD-TFT display, designed to deliver stunning visuals and reliable performance. Featuring a crisp resolution of 1280 x 800 and a 16:10 aspect ratio, this compact display ensures vivid clarity and rich detail for any application. With a remarkable brightness of 600 cd/m² and a contrast ratio of 1000, the ULF0703-T guarantees vibrant colors and deep blacks, even in challenging lighting conditions. Its versatile connectivity options, including DVI-D, HDMI, LVDS, and VGA, make it an ideal choice for diverse setups. Engineered to withstand operating temperatures from -20°C to 70°C, it promises durability and consistent performance. The ULF0703-T's sleek design with an active area of 149.76 x 93.60 mm and compact outline dimensions of 161 x 107 mm makes it perfect for tight spaces without compromising on quality. Choose Litemax for a display solution that combines innovation, reliability, and exceptional visual quality.

Datasheet

Ask our team for:

Size (inch)7
Resolution1280x800
Aspect ratio16:10
Brightness (cd/m²)600
Contrast1000
InterfaceDVI-D, HDMI, LVDS, VGA
Active area (mm)149.76x93.60
Outline Dimensions (mm)161x107
Operating temp. (°C)-20~70
ManufacturerLitemax

Need a display for the designed device?

Contact our experts – we’ll help you choose the optimal solution adapted to your needs.

Industrial operating temperature range


This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.

Full observation angles

Full observation angles

Using an IPS/MVA (or a variation thereof) matrix, the display is readable from all angles. There is no grayscale inversion effect that characterizes popular TN matrices. Also, the decrease in contrast when increasing the viewing angle is much lower.
