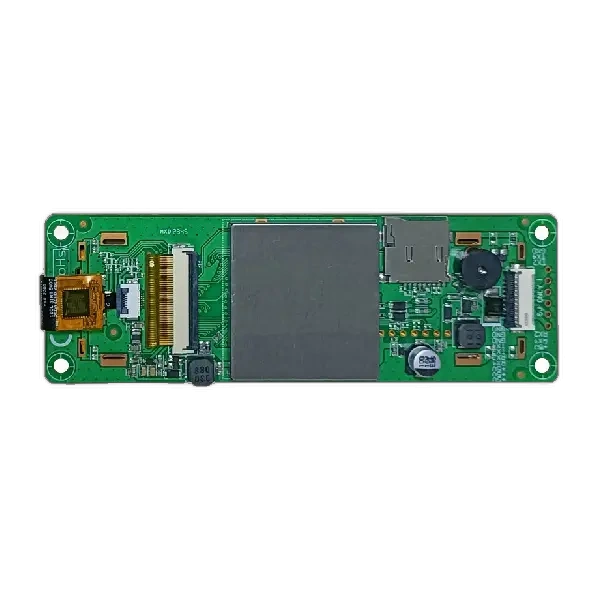

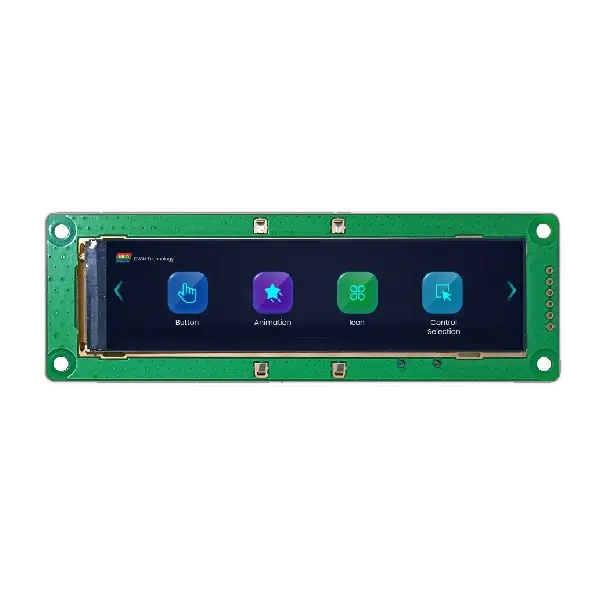

DMG96240C037_03WN DWIN 3.7″ 240×960 Smart LCD-TFT display

The DMG96240C037_03WN is a versatile 3.7′ smart LCD-TFT display with a unique 240×960 resolution and 4:1 aspect ratio. This DWIN-manufactured display offers full viewing angles and industrial-grade temperature tolerance from -20°C to 70°C. With its compact 38.0×116.0x9.3mm outline and 22.9×91.4mm active area, the DMG96240C037_03WN is ideal for space-constrained applications requiring a tall, narrow display. The 400 cd/m² brightness ensures clear visibility in various lighting conditions. Featuring the DMG96240C037_03WN twice for emphasis, this display is perfect for industrial HMIs, information kiosks, and specialized instrumentation.

Datasheet

Ask our team for:

Size (inch)3.7
Resolution240x960
Aspect ratio4:1
Brightness (cd/m²)400
Viewing DirectionFull
Active area (mm)22.9x91.4
Outline Dimensions (mm)38.0x116.0x9.3
Operating temp. (°C)-20~70
Storage temp. (°C)-30~80
ManufacturerDWIN

Need a display for the designed device?

Contact our experts – we’ll help you choose the optimal solution adapted to your needs.

Industrial operating temperature range


This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.

Full observation angles

Full observation angles

Using an IPS/MVA (or a variation thereof) matrix, the display is readable from all angles. There is no grayscale inversion effect that characterizes popular TN matrices. Also, the decrease in contrast when increasing the viewing angle is much lower.
