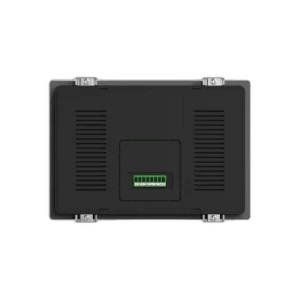

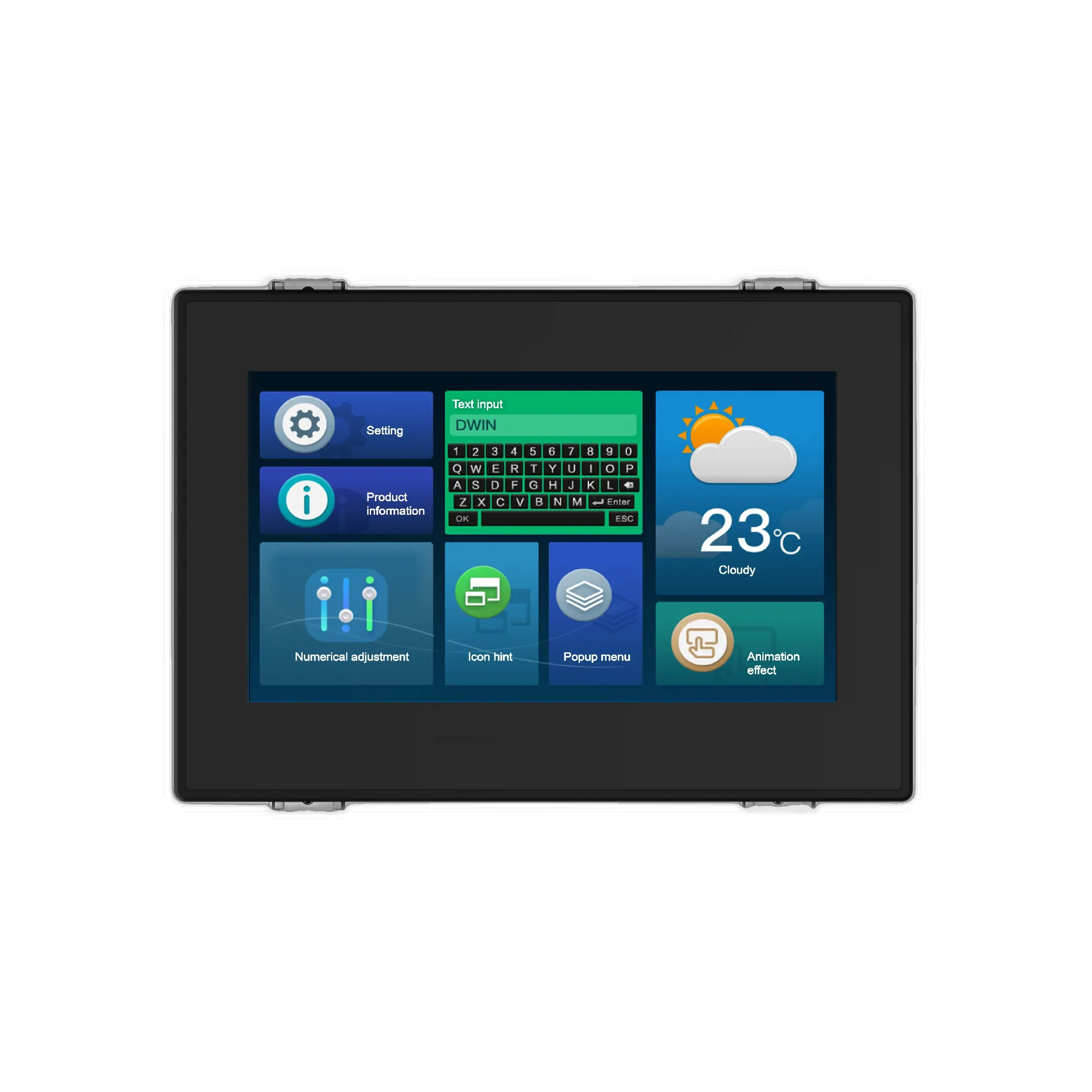

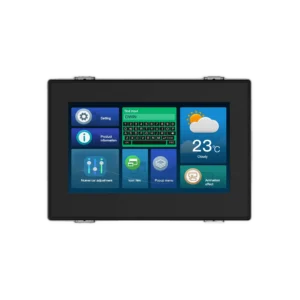

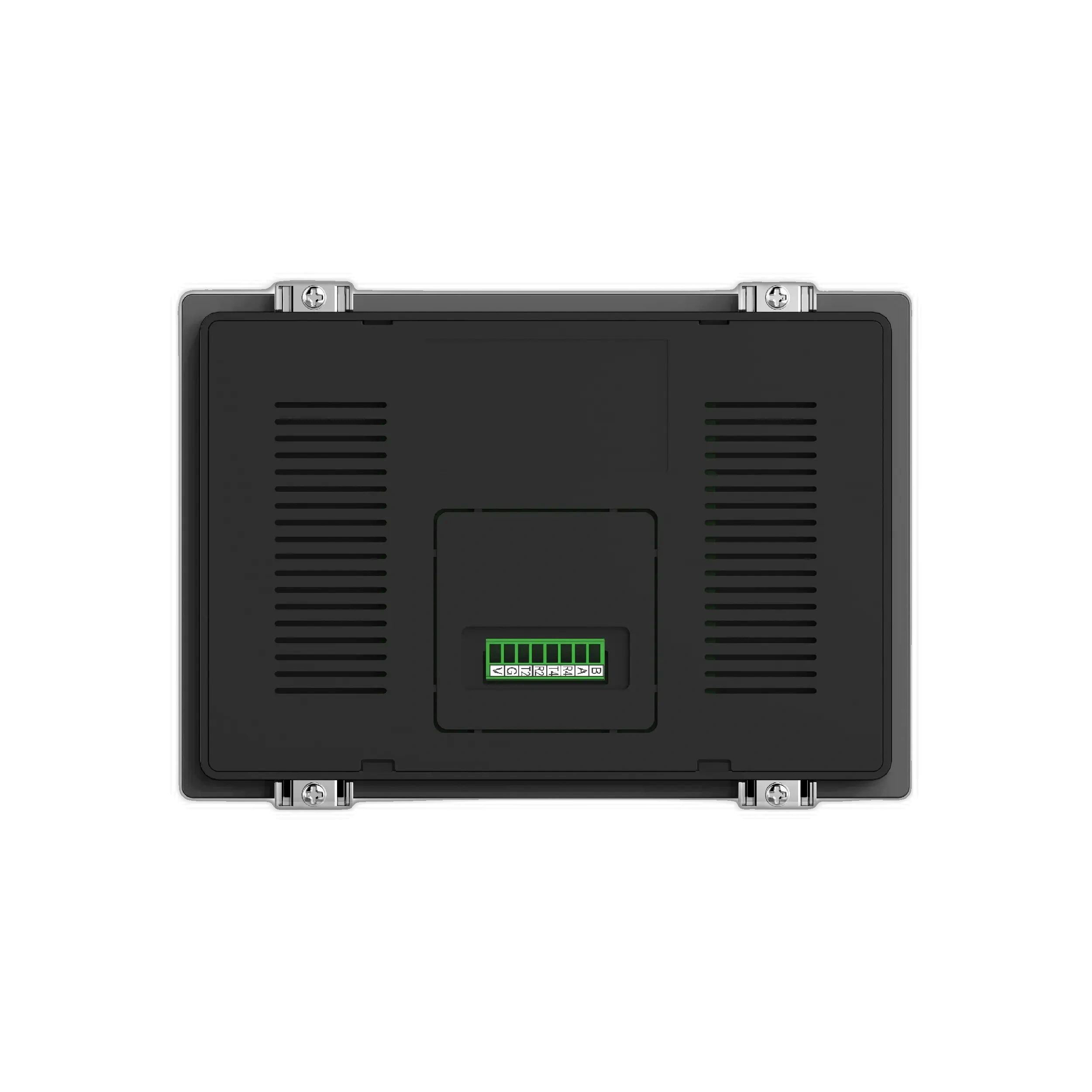

DMG80480C070_15WTR
DWIN 7" 800x480 Smart LCD-TFT display
Mass production? Get a quote →
Full Technical Specifications
| Size (inch) | 7 |
| Resolution | 800x480 |
| Brightness (cd/m²) | 200 |
| Manufacturer | DWIN |
| Aspect ratio | 16:9 |
| Touch Panel | Resistive |
| Interface | UART |
| Controller | T5L0 |
| Mounting Frame | Yes |
| Operating temp. (°C) | -20 ~ 70 |
| Storage temp. (°C) | -30 ~ 80 |
| Active area (mm) | 154.1x85.9 |
| Outline Dimensions (mm) | 194.8x135.0x21.0 |
Description
The DMG80480C070_15WTR is a versatile 7′ smart LCD-TFT display with 800×480 resolution, perfect for industrial applications. Featuring a resistive touch panel, T5L0 controller, and UART interface, it offers seamless integration. The wide -20~70°C operating range ensures reliability in harsh environments. With a compact 194.8×135.0x21.0mm form factor and DWIN’s DGUS II platform, the DMG80480C070_15WTR delivers powerful HMI capabilities for your projects. Upgrade your interface with this robust, feature-rich display.
