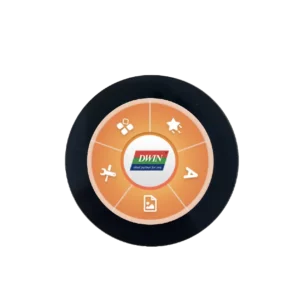

DMG48480C021_02WTC Smart LCD-TFT from DWIN with T5L controller

Unisystem » Products » Displays LCD-TFT » Smart Displays » DMG48480C021_02WTC Smart LCD-TFT from DWIN with T5L controller

Elevate your display technology with the DMG48480C021_02WTC Smart LCD-TFT from DWIN, featuring a compact 2.1-inch screen with a stunning 480×480 resolution, perfect for applications demanding crisp, clear visuals. With a 1:1 aspect ratio and 350 cd/m² brightness, this display offers exceptional clarity and vivid color reproduction. Designed for versatility, it supports IIC, RGB, and TTL/CMOS interfaces, powered by the advanced T5 L1 controller, ensuring seamless integration and reliable performance. Its robust construction withstands operating temperatures from -20°C to 70°C, making it suitable for various environments. Despite its small size, the active area measures 53.3mm, providing ample display space within a sleek 71.3mm outline. Ideal for use in smart devices and embedded systems, this display delivers professional-grade quality without compromise. Choose DWIN for cutting-edge display solutions that enhance your project’s visual appeal and functionality.

Datasheet

Ask our team for:

Size (inch)2.1
Resolution480x480
Aspect ratio1:1
Brightness (cd/m²)350
Viewing Direction6:00, 12:00
InterfaceIIC, RGB, TTL/CMOS
ControllerT5L1
Mounting FrameNo
Active area (mm)53.3
Outline Dimensions (mm)71.3
Operating temp. (°C)-20~70
Storage temp. (°C)-30~80
SpecialNone
ManufacturerDWIN

Need a display for the designed device?

Contact our experts – we’ll help you choose the optimal solution adapted to your needs.

Industrial operating temperature range


This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.

Full observation angles

Full observation angles

Using an IPS/MVA (or a variation thereof) matrix, the display is readable from all angles. There is no grayscale inversion effect that characterizes popular TN matrices. Also, the decrease in contrast when increasing the viewing angle is much lower.
