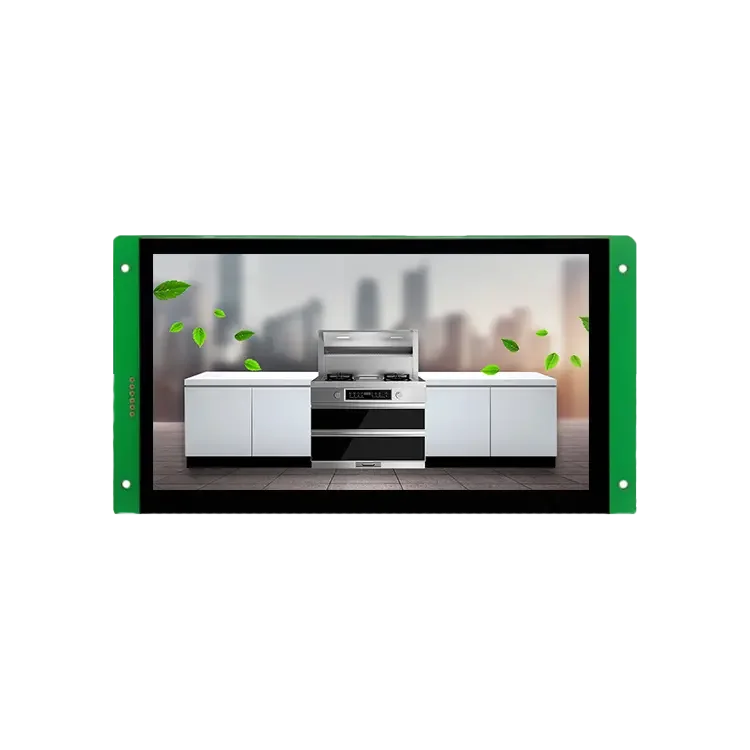

Experience cutting-edge visual performance with the DMG10600 C070_03 WTC Smart LCD-TFT from DWIN, featuring a vibrant 7.0-inch display with a stunning resolution of 1024 x 600. This smart display offers an ideal 16:9 aspect ratio and 250 cd/m² brightness, ensuring clear and vivid visuals from 6:00 to 12:00 viewing angles. Engineered with the robust T5 L2 controller, this display supports versatile interfaces including IIC, RGB, RS232, and TTL/CMOS, making it perfect for diverse applications. The included mounting frame facilitates easy installation, while the active area of 154.20 x 85.90 mm optimizes screen space. Designed to operate efficiently in temperatures ranging from 0 to 50°C and withstand storage conditions from -20 to 60°C, this display is both reliable and durable. Elevate your display solutions with DWIN's innovative technology, crafted for superior performance and seamless integration.
Ask our team for:
| Size (inch) | 7.0 |
|---|---|
| Resolution | 1024x600 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 250 |
| Viewing Direction | 6:00, 12:00 |
| Interface | IIC, RGB, RS232, TTL/CMOS |
| Controller | T5L2 |
| Mounting Frame | Yes |
| Active area (mm) | 154.20x85.90 |
| Outline Dimensions (mm) | 190.50x105.40 |
| Operating temp. (°C) | 0~50 |
| Storage temp. (°C) | -20~60 |
| Special | None |
| Manufacturer | DWIN |
Contact our experts – we’ll help you choose the optimal solution adapted to your needs.
Using an IPS/MVA (or a variation thereof) matrix, the display is readable from all angles. There is no grayscale inversion effect that characterizes popular TN matrices. Also, the decrease in contrast when increasing the viewing angle is much lower.
| Size (inch) | 36.6 |
|---|---|
| Resolution | 1920x290 |
| Aspect ratio | 16:2.4 |
| Brightness (cd/m²) | 1000 |
| Contrast | 7500 |
| Viewing Direction | 6:00, 12:00, Full |
| Orientation | Any |
| Interface | HDMI |
| Controller | None |
| Mounting Frame | No |
| Touch Panel | None |
| Outline Dimensions (mm) | 960x174.2x15.8 |
| Operating temp. (°C) | -20~60 |
| Size (inch) | 3.5 |
|---|---|
| Resolution | 320x240 |
| Aspect ratio | 4:3 |
| Brightness (cd/m²) | 420 |
| Contrast | 350 |
| Viewing Direction | 12:00 |
| Orientation | Landscape |
| Interface | RGB |
| Controller | None |
| Mounting Frame | No |
| Touch Panel | None |
| Outline Dimensions (mm) | 76.9x63.9x3.26 |
| Operating temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Winstar |
| Size (inch) | 15 |
|---|---|
| Resolution | 1024x768 |
| Aspect ratio | 4:3 |
| Brightness (cd/m²) | 400 |
| Contrast | 2500 |
| Viewing Direction | 6:00, 12:00, Full |
| Interface | eDP |
| Controller | None |
| Mounting Frame | No |
| Active area (mm) | 304.128x228.096 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | None |
| Manufacturer | Innolux |
| Size (inch) | 44.8 |
|---|---|
| Resolution | 3840x1076 |
| Aspect ratio | 16:4.5 |
| Brightness (cd/m²) | 1000 |
| Contrast | 7800 |
| Viewing Direction | 6:00, 12:00, Full |
| Orientation | Any |
| Interface | DP, DVI-D, HDMI, V-by-One, VGA |
| Controller | None |
| Mounting Frame | No |
| Touch Panel | None |
| Outline Dimensions (mm) | 1121.7x338.9x21.6 |
| Operating temp. (°C) | -20~60 |
| Special | local dimming |
| Manufacturer | Litemax |
| Size (inch) | 37.6 |
|---|---|
| Resolution | 1920x540 |
| Aspect ratio | 16:4.5 |
| Brightness (cd/m²) | 1500 |
| Contrast | 4000 |
| Viewing Direction | 6:00, 12:00, Full |
| Orientation | Any |
| Interface | LVDS |
| Controller | None |
| Mounting Frame | No |
| Touch Panel | None |
| Outline Dimensions (mm) | 923.3x277.1x10.6 |
| Operating temp. (°C) | -20~60 |
| Special | MVA |
| Manufacturer | AUO |
| Size (inch) | 37.6 |
|---|---|
| Resolution | 1920x540 |
| Aspect ratio | 16:4.5 |
| Brightness (cd/m²) | 700 |
| Contrast | 4000 |
| Viewing Direction | 6:00, 12:00, Full |
| Orientation | Any |
| Interface | LVDS |
| Controller | None |
| Mounting Frame | No |
| Touch Panel | None |
| Outline Dimensions (mm) | 923.3x277.1x10.6 |
| Operating temp. (°C) | -20~60 |
| Special | MVA |
| Manufacturer | AUO |
