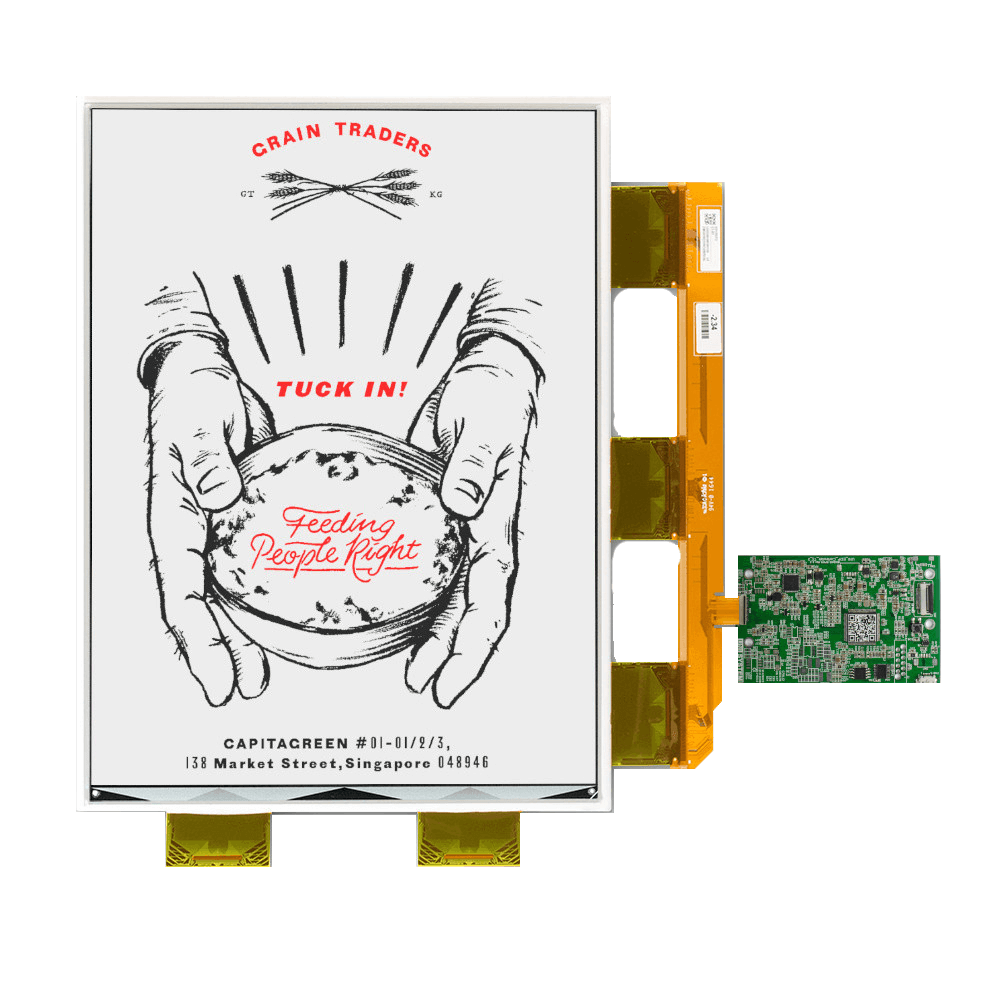

USEC133SRSUSN 13.3″ 1600×1200 e-paper display, SPI/USB, 0.97 mm thick
We configure this display for a specific device: controller, mechanics and software matched to your project. We do not produce single units.
Ask about a project ↓Description
Enhance your display solutions with the USEC133SRSUSN Electronic Paper display from Unisystem Co. This 13.3-inch e-paper offers a crisp 1600×1200 resolution, perfect for applications requiring high clarity and readability. With its black-red-white color scheme and 150 DPI, it delivers striking visuals that stand out. The USEC133SRSUSN is designed for versatility, featuring both SPI and USB interfaces for seamless integration. Its substantial active area of 270.4×202.8 mm ensures ample space for detailed content, while the slim 0.97 mm profile makes it ideal for sleek installations. Built to perform in a range of environments, it operates efficiently between 0°C and 50°C, and can be stored in temperatures as low as -25°C. Whether for retail, signage, or industrial applications, this e-paper display combines durability with advanced technology, making it a valuable addition to any project. Discover the dynamic capabilities of the USEC133SRSUSN and transform your display needs today.
Full Technical Specifications
| Size (inch) | 13.3 |
| Resolution | 1600x1200 |
| Manufacturer | Unisystem |
| Interface | SPI, USB |
| Operating temp. (°C) | 0 ~ 50 |
| Storage temp. (°C) | -25 ~ 70 |
| Active area (mm) | 270.4x202.8 |
| Outline Dimensions (mm) | 285.80x213.65x0.97 |
Unisystem e-paper
E-paper built for your project
We deliver the e-paper displays we manufacture as solutions for a specific project. Our Solution department selects and designs the electronics, mechanics and software, so the module matches the device requirements from the start.
- Power draw only when the image changes
- Readable in full sunlight
- Thin and lightweight
What we match to your project
Electronics
Controller and interface (SPI, USB) matched to your platform.
Mechanics
Cover glass, mounting and dimensions for your enclosure.
Software
Image and refresh control tailored to how your device works.
Integration
Engineering support from the first sketch to production start.
How we work
- 1
Inquiry
Describe the application, quantity and timeline.
- 2
Assessment
Our engineers check feasibility and select a configuration.
- 3
Quote
You get a price for the whole batch.
- 4
Production
Displays are built for your order.
Applications
- Passenger information
- Building signage
- Industrial labelling
- Battery-powered devices
- Smart city
