1.92-inch rectangular OLED from Winstar

1.92-inch rectangular OLED from Winstar

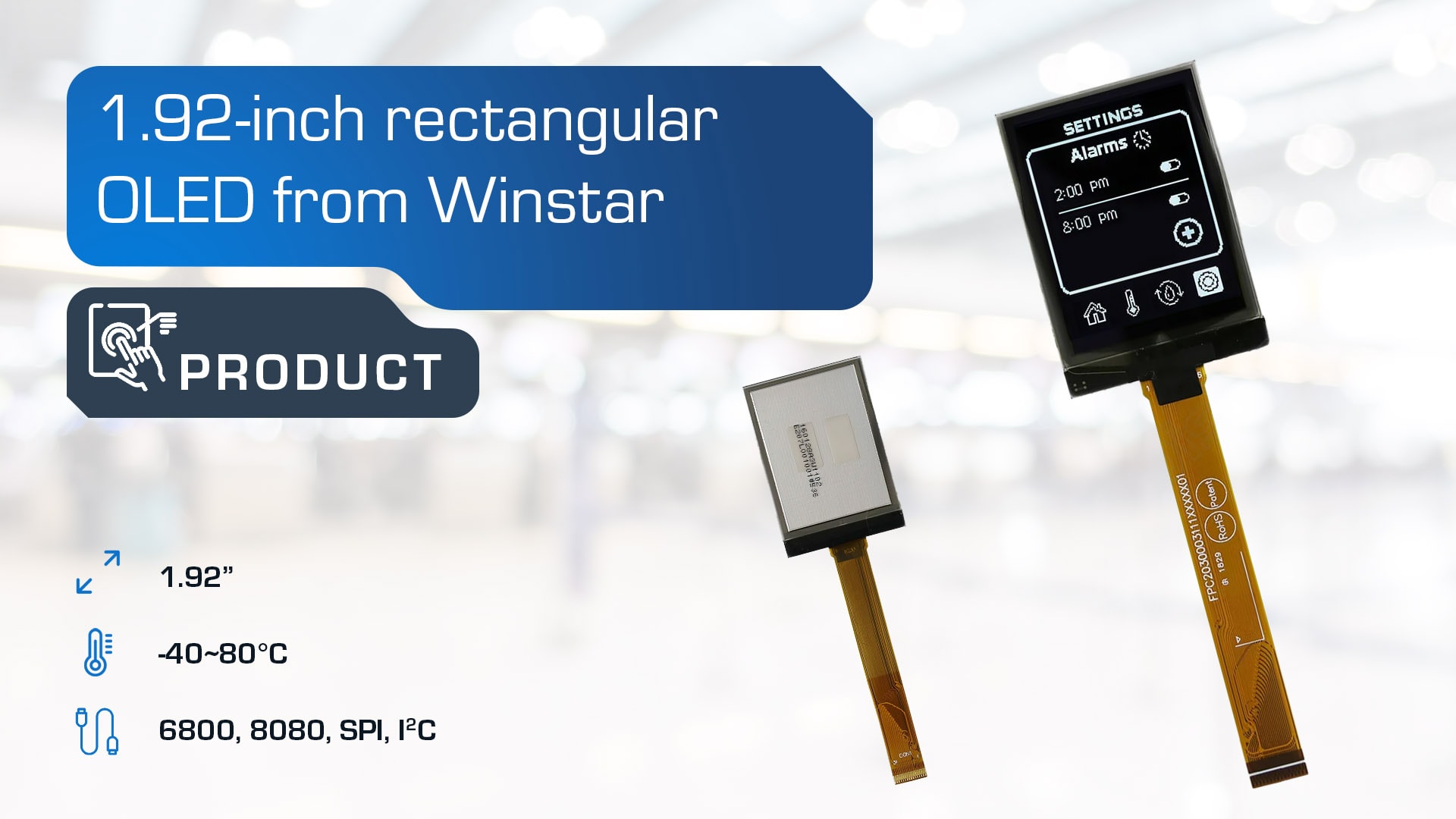

Winstar has introduced a new 1.92-inch rectangular OLED display (model WEO160128B). This state-of-the-art graphics module is designed for applications where high image quality and high functionality are needed. The WEO160128BWPP3N00000 is a rectangular OLED display module with a size of 34.5 × 48.8 × 1.41 mm, providing a high-resolution image of 160×128 pixels. The display features an excellent contrast ratio of 10,000:1 and support for 4-bit grayscale, which guarantees a clear and detailed image.

Parameters of the WEO160128B model

WEO160128BWPP3N00000 is an OLEDwyconstructed graphics module using COG (Chip on Glass) technology. The module integrates the controller IC directly on the display glass, which contributes to its reliability and reduces the thickness of the entire module. The controller used, the CH1120, supports both 6800 and 8080 parallel interfaces and SPI and I²C serial interfaces, thus offering a wide range of integration possibilities with a variety of microcontroller systems. This versatility of interfaces makes the WEO160128B OLED module an excellent choice for projects that require flexible communication solutions in electronic devices.

parameterModel WEO160128BWPP3N00000
diagonal1.92″
resolution160 x 128 px
active area28.908 x 39.34 mm
contrast10000:1
interface6800, 8080, SPI, I2C
controllerCH1120
module dimensions34.5 × 48.8 × 1.41mm
module typeCOG – Chip On Glass
display typeOLED passive matrix
operating temperature range-40~80°C
touch panelnot

Application of OLED display WEO160128B

With its wide operating temperature range and high contrast, the WEO160128B OLED module is ideal for use in many high-tech areas:

  1. Medical applications: Its high resolution and contrast provide excellent readability, which is crucial in medical devices such as patient monitors, diagnostic imaging equipment and portable medical instruments. With its ability to operate over a wide temperature range and image stability, the module can be used in medical equipment that requires reliability and precision.
  2. Smart home applications: The WEO160128B is ideal for integration into smart home systems, where it can be used to display information on control panels for home devices such as alarm systems, thermostats or energy management systems. Thanks to its flexibility in communication, it can be easily integrated into a variety of protocols used in smart homes.
  3. Intelligent building systems (home and office): The module can be used in building management, for example, to control access or monitor environmental conditions inside buildings. Its performance in extreme conditions makes it suitable for sites with varying temperature requirements.
  4. Lighting or heating control panels: With its ability to accurately display graphics, the OLED module can be used in advanced lighting or heating control panels. It provides a clear representation of the status of systems, allowing users to intuitively control settings in the home or office.

With its features such as high contrast, grayscale support and a variety of communication interfaces, the WEO160128B OLED module is highly versatile and can be successfully implemented in various modern technology applications, improving user interaction and data readability in key applications.

If you would like to learn more about the possibility of applying this solution to your project, please contact us. Do you want to keep up to date with new products introduced by Unisystem? Sign up for our company newsletter!

2024-04-25
