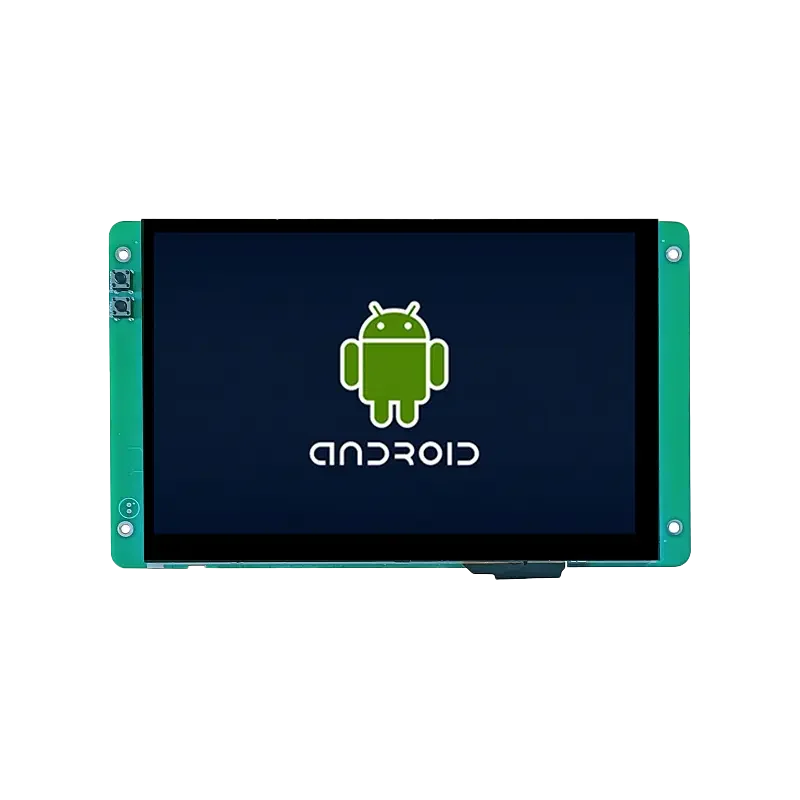

DMG12800T070-32WTC Smart LCD-TFT display from DWIN

DMG12800T070_32WTC is a 7-inch LCD-TFT display module with 1280×800 resolution (landscape view) from DWIN. Powered by Android 11 and the RK3566 processor, it provides RS232, RS485, USB, and Ethernet interfaces. With a brightness of 250 cd/m² and symmetrical viewing angles, the module is ideal for industrial applications requiring reliable performance in environments ranging from -20°C to 70°C

Datasheet

Ask our team for:

Size (inch)7
Resolution1280x800
Aspect ratio16:10
Brightness (cd/m²)250
Viewing Direction6:00, 12:00
InterfaceEthernet, USB
ConnectivityEthernet, Wi-Fi
Operating SystemAndroid
ControllerRK3566
Mounting FrameNo
Active Area149.76x93.60
Outline Dimensions187.0x112.1
Operating temp. (°C)-20~70
Storage temp. (°C)-30~80
SpecialNone
ManufacturerDWIN

Industrial operating temperature range


This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.

Full observation angles

Full observation angles

Using an IPS/MVA (or a variation thereof) matrix, the display is readable from all angles. There is no grayscale inversion effect that characterizes popular TN matrices. Also, the decrease in contrast when increasing the viewing angle is much lower.

High brightness

High brightness

High brightness of the image (high brightness) is a feature that is extremely useful when the display is in bright sunlight. With this functionality, the content displayed is fully readable by the user. High Brightness displays can be successfully used, for example, in exhibitions, kiosks, on trains and buses, as digital signage, or as part of other outdoor solutions.
