Industrial Monitor – What is it?
An industrial monitor is an LCD-TFT display housed in an enclosure with an appropriate level of sealing, ready to be installed in its intended location. These monitors are specifically designed for industrial applications. They stand out from other products due to various factors, including:
- High-performance parameters (such as resolution, brightness, and contrast) that ensure proper visibility of displayed content,
- Durability,
- Reliability,
- Resistance to extreme conditions in the implementation environment (such as exposure to dust, water, vibrations, shocks, and operating in extremely low or high temperatures).

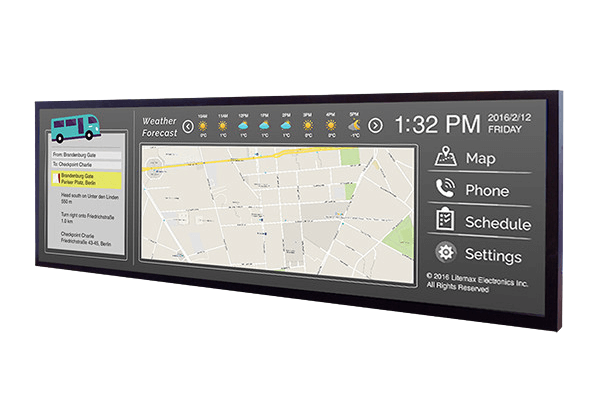

Industrial monitors are available in various sizes, ranging from a few inches to several dozen inches, and they come in different shapes. In addition to standard formats, there are widescreen variants with aspect ratios such as 16:2.2, 16:3, 16:4, 16:4.5, or 16:5.

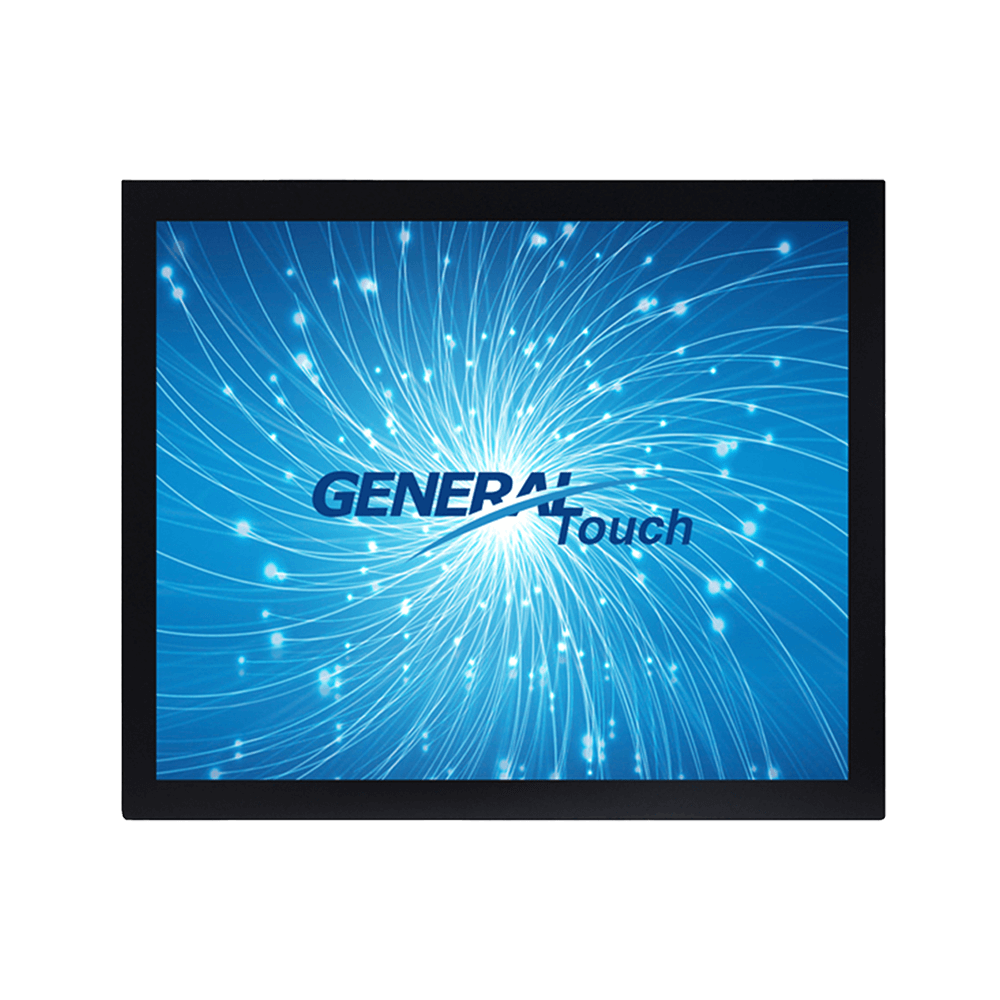

Elevate your industrial applications with the OTL175-RC6000-UH5100 open frame monitor from General Touch. This robust 17-inch display offers a sharp 1280 x 1024 resolution, ensuring precise visuals for critical tasks. With a brightness of 415 cd/m² and a contrast ratio of 1000, it delivers clear images even in challenging lighting conditions. The OTL175-RC6000-UH5100 features a versatile viewing direction, adaptable to both 6:00 and 12:00 orientations, making it perfect for any setup. Its capacitive touch panel offers responsive interaction, while multiple interfaces—HDMI, USB-B, and VGA—ensure seamless connectivity. Built to withstand demanding environments, it operates efficiently between 0°C and 50°C, withstanding storage temperatures from -20°C to 60°C. Measuring 380.00×317.50×59.60 mm, this monitor is designed for easy integration in tight spaces. Optimize your industrial workflow with this reliable, high-performance monitor.

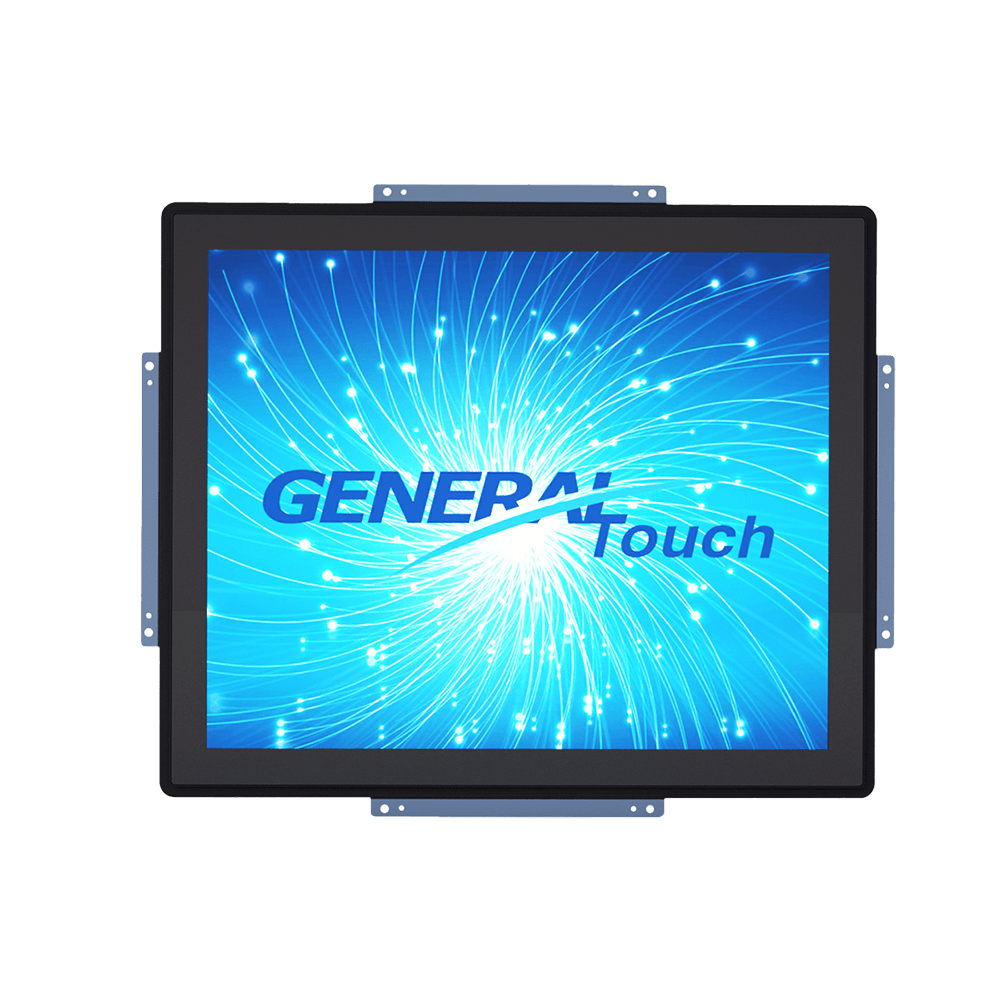

Introducing the OTL196-RPC03-Z Open frame industrial monitor, a robust solution designed for demanding environments. With a 19-inch display and a crisp resolution of 1280×1024, this monitor delivers exceptional clarity and detail. Manufactured by General Touch, it boasts a brightness of 290 cd/m² and a contrast ratio of 1000:1, ensuring vivid visuals even in challenging lighting conditions. The OTL196-RPC03-Z features a capacitive touch panel for responsive interaction, while its wide viewing angles at 6:00, 12:00, and full ensure consistent image quality from any direction. Equipped with DVI and USB-B interfaces, it offers versatile connectivity options. Its durable design, with a temperature range from 0°C to 40°C, makes it perfect for industrial applications. Compact yet powerful, with outline dimensions of 438.70×363.70×41.0 mm, this monitor is a reliable choice for professionals seeking performance and durability in one package.

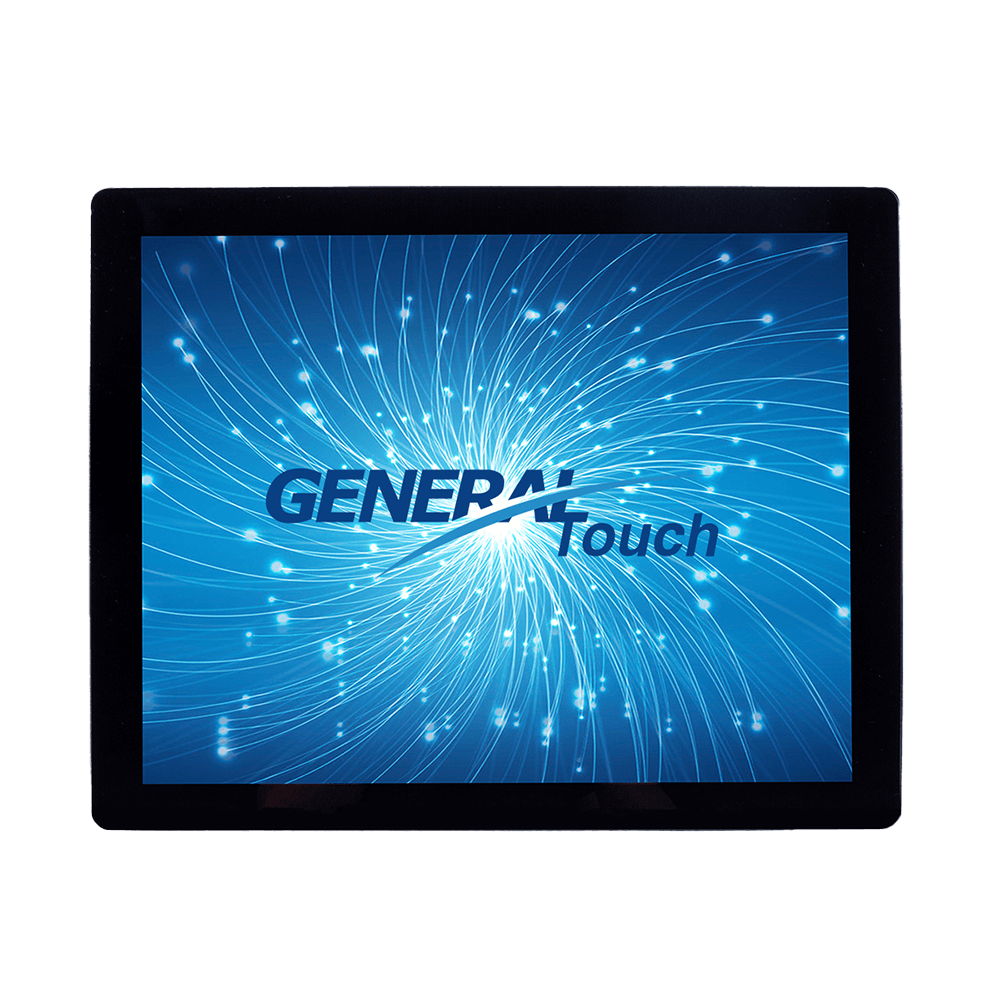

Enhance your industrial workspace with the OTL155-RPCZ03-UCDA Closed Frame Industrial Monitor, designed for durability and performance. With a 15-inch display and a resolution of 1024 x 768, it offers clear, detailed visuals. Manufactured by General Touch, this monitor boasts a brightness of 290 cd/m² and a contrast ratio of 800, ensuring excellent visibility even in challenging environments. The OTL155-RPCZ03-UCDA supports diverse viewing angles, with options at 6:00, 12:00, and full. Its capacitive touch panel provides precise and responsive interaction, making it ideal for demanding applications. Connectivity is seamless with DVI, USB-B, and VGA interfaces, ensuring compatibility with various systems. The compact outline dimensions of 354.7×278.7×46.0 mm make it a perfect fit for space-constrained settings. Operating efficiently within temperatures from 0 to 40°C, and storing safely between -20 to 60°C, this monitor is built to withstand industrial conditions. Invest in reliability and precision today.
The OTL246 Open frame industrial monitor is a robust and versatile display solution, engineered for demanding environments. Featuring a 23.8-inch screen with an impressive 1920×1080 resolution, it delivers crystal-clear visuals and vibrant colors. Manufactured by General Touch, this monitor boasts a brightness of 332 cd/m² and a high contrast ratio of 3000, ensuring excellent visibility even in challenging lighting conditions. Its capacitive touch panel offers seamless interactivity, while the wide viewing angles at 6:00, 12:00, and full directions ensure consistent image quality from any perspective. With a durable build, this monitor operates efficiently in temperatures ranging from 0°C to 40°C and stores safely between -20°C and 60°C. Equipped with DVI and USB-B interfaces, the OTL246-RC6000-UH4200 integrates easily into existing systems. Ideal for industrial applications, the OTL246-RC6000-UH4200 combines reliability with performance, making it the perfect choice for professional settings.

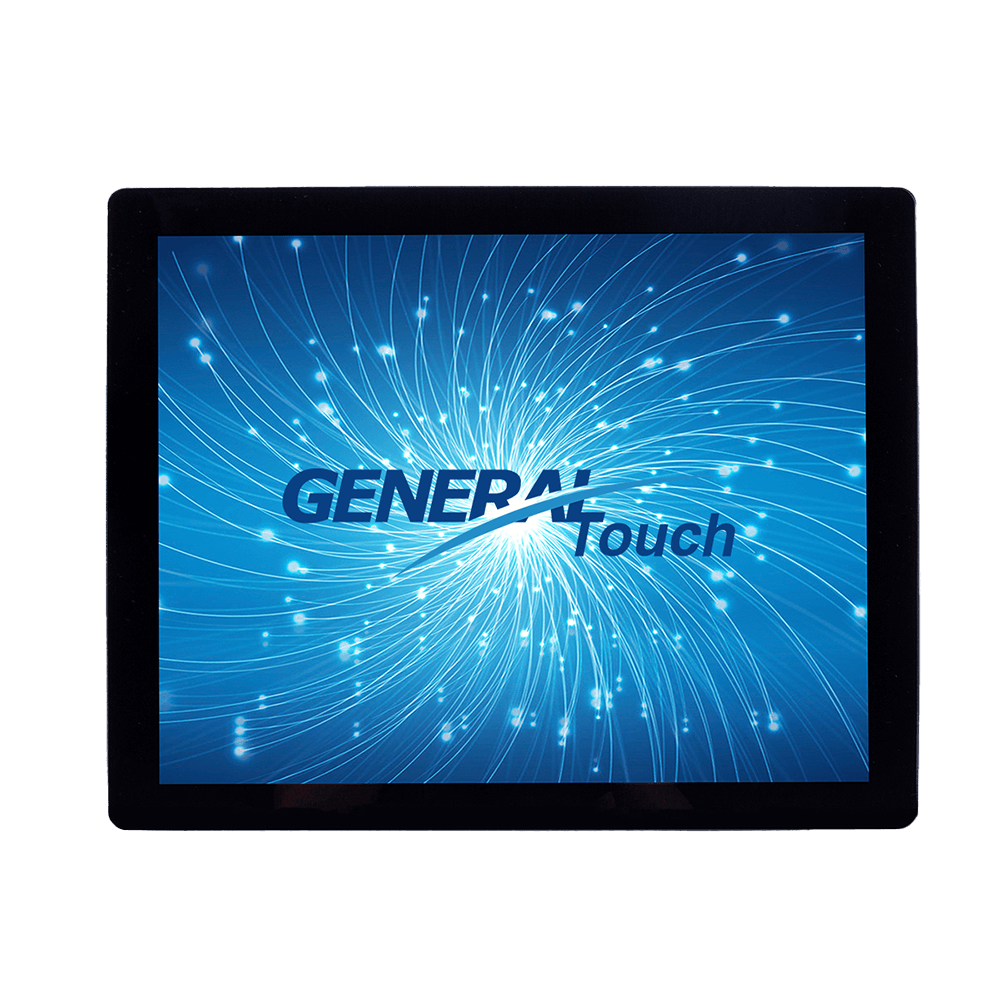

Experience precision and reliability with the OTL175-RPCZ04-UCD-RPCZ04-UCD closed frame industrial monitor, designed for demanding environments. With a 17-inch display and a crisp resolution of 1280×1024, this monitor ensures sharp visuals for any industrial application. Manufactured by General Touch, it features a brightness of 208 cd/m² and a contrast ratio of 1000, delivering clear images even in challenging lighting conditions. The full viewing direction at 6:00 and 12:00 enhances visibility from any angle, while the capacitive touch panel offers seamless interaction. Equipped with DVI and USB-B interfaces, the OTL175-RPCZ04-UCD-RPCZ04-UCD guarantees versatile connectivity options. Its robust construction withstands operating temperatures from 0 to 50°C and storage temperatures from -20 to 60°C, making it ideal for varied industrial settings. Compact yet powerful, with outline dimensions of 393.4×325.4×38.8 mm, this monitor is the perfect blend of functionality and durability for your industrial needs.
Transform your industrial setup with the OTL195-RPCZ05-UHPCD – Closed frame industrial monitor, designed to deliver exceptional performance and reliability. Crafted by General Touch, this 19-inch monitor offers a sharp 1280×1024 resolution, ensuring crystal-clear visuals for precise monitoring. With a brightness of 210 cd/m² and a contrast ratio of 1000, it provides vibrant images even in challenging lighting conditions. The capacitive touch panel enhances interactivity, while multiple interface options—DP, DVI, HDMI, USB-B, VGA—ensure seamless connectivity with various systems. Engineered for durability, the OTL195-RPCZ05-UHPCD withstands operating temperatures from 0°C to 40°C, making it ideal for demanding industrial environments. Its sleek, compact design with dimensions of 430.0×353.0×37.6 mm fits effortlessly into any workspace. Elevate your operational efficiency with this robust industrial monitor, tailored for those who demand the best in technology and reliability.
Experience unparalleled clarity and precision with the OTL225-RC5A00-UH2200, a 21.5-inch closed frame industrial monitor from General Touch. Boasting a sharp 1920×1080 resolution and a 3000 contrast ratio, this monitor delivers vibrant visuals in any industrial setting. Its capacitive touch panel ensures accurate and responsive interaction, while the versatile viewing angles of 6:00, 12:00, and full range offer flexibility in installation. Equipped with DVI, USB-B, and VGA interfaces, the OTL225-RC5A00-UH2200 seamlessly integrates with existing systems. Designed for durability, it operates reliably between 0°C and 40°C, and can be stored safely from -20°C to 60°C. Ideal for demanding environments, this monitor combines robust performance with sleek design, making it a valuable asset for any industrial application.

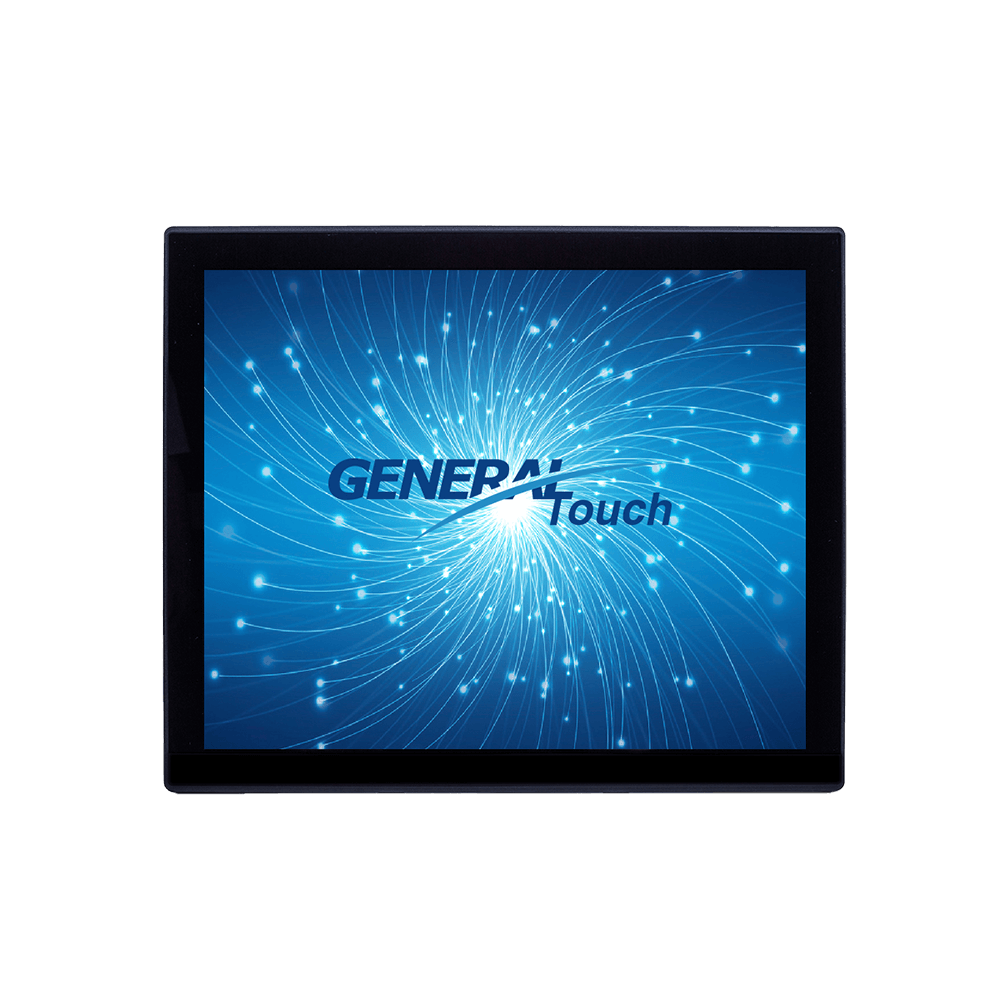

Experience precision and reliability with the OTL153-RPC03-UCDA – Open frame industrial monitor. Designed for demanding environments, this 15-inch display offers a crisp 1024×768 resolution, ensuring clear and vibrant visuals. Manufactured by General Touch, it features a high brightness of 298 cd/m² and a superior contrast ratio of 2500, making it perfect for various lighting conditions. The capacitive touch panel provides responsive and intuitive interaction, while versatile connectivity options like DVI, USB-B, and VGA ensure seamless integration with your systems. With full viewing angles at 6:00, 12:00, and beyond, the OTL153-RPC03-UCDA guarantees visibility from any direction. Built to withstand operating temperatures from 0°C to 40°C and storage temperatures from -20°C to 60°C, this industrial monitor is engineered for durability and performance. Upgrade your workspace with this robust and efficient solution.

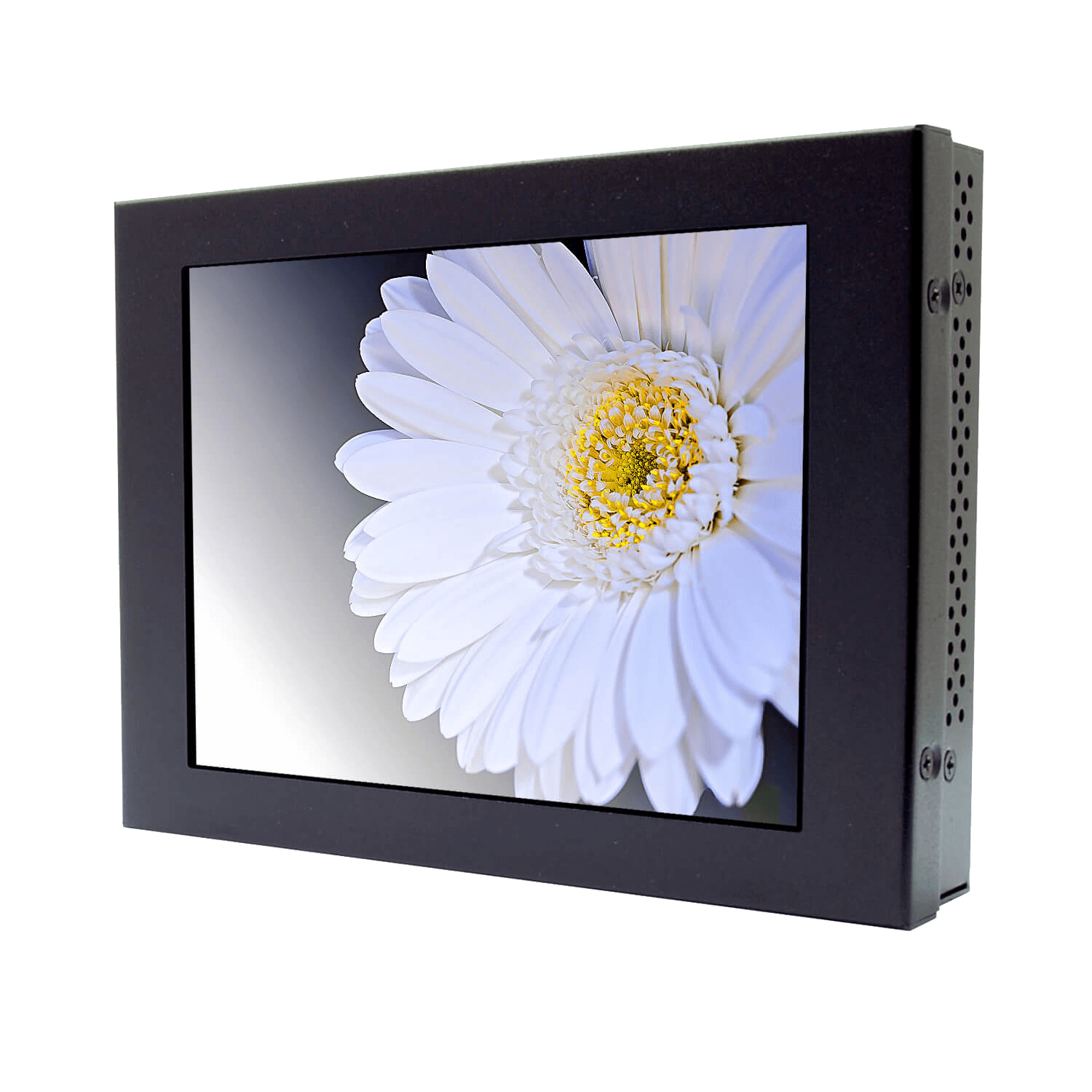

The SLD0625-E Industrial Monitor by Litemax is designed for rugged environments, offering exceptional performance and reliability. This 6.5-inch monitor boasts a crisp 640×480 resolution with a 4:3 aspect ratio, perfect for detailed displays. With an impressive brightness of 1000 cd/m² and a contrast ratio of 600, the SLD0625-E ensures vivid clarity in various lighting conditions. Its versatile viewing angles at 6:00, 12:00, and full ensure optimal visibility from any direction. Equipped with DVI-D, LVDS, and VGA interfaces, it seamlessly integrates into your existing systems. Built to withstand extreme temperatures from -30°C to 80°C, this monitor is ideal for both indoor and outdoor industrial applications. Despite its robust capabilities, it maintains a compact form factor with dimensions of 153x118x10.9 mm, fitting effortlessly into your setup. Choose the SLD0625-E for a reliable, high-performance solution in demanding environments.
Experience superior display performance with the SLO0868-E Industrial Monitor from Litemax Co. This 8.4-inch monitor offers a crisp 800×600 resolution and a 4:3 aspect ratio, making it ideal for demanding industrial applications. With an impressive brightness of 1600 cd/m² and a contrast ratio of 600, the SLO0868-E ensures clear visibility even in challenging lighting conditions. Designed for versatility, it supports multiple interfaces including DVI-D, LVDS, and VGA, ensuring seamless integration with your existing systems. Built to withstand harsh environments, this monitor operates efficiently in temperatures ranging from -20°C to 70°C. Its compact design, with an active area of 170.4 x 127.8 mm and outline dimensions of 203 x 142.5 x 5.7 mm, allows for easy installation in tight spaces. Choose the SLO0868-E for a reliable and high-performance display solution that meets your industrial needs.

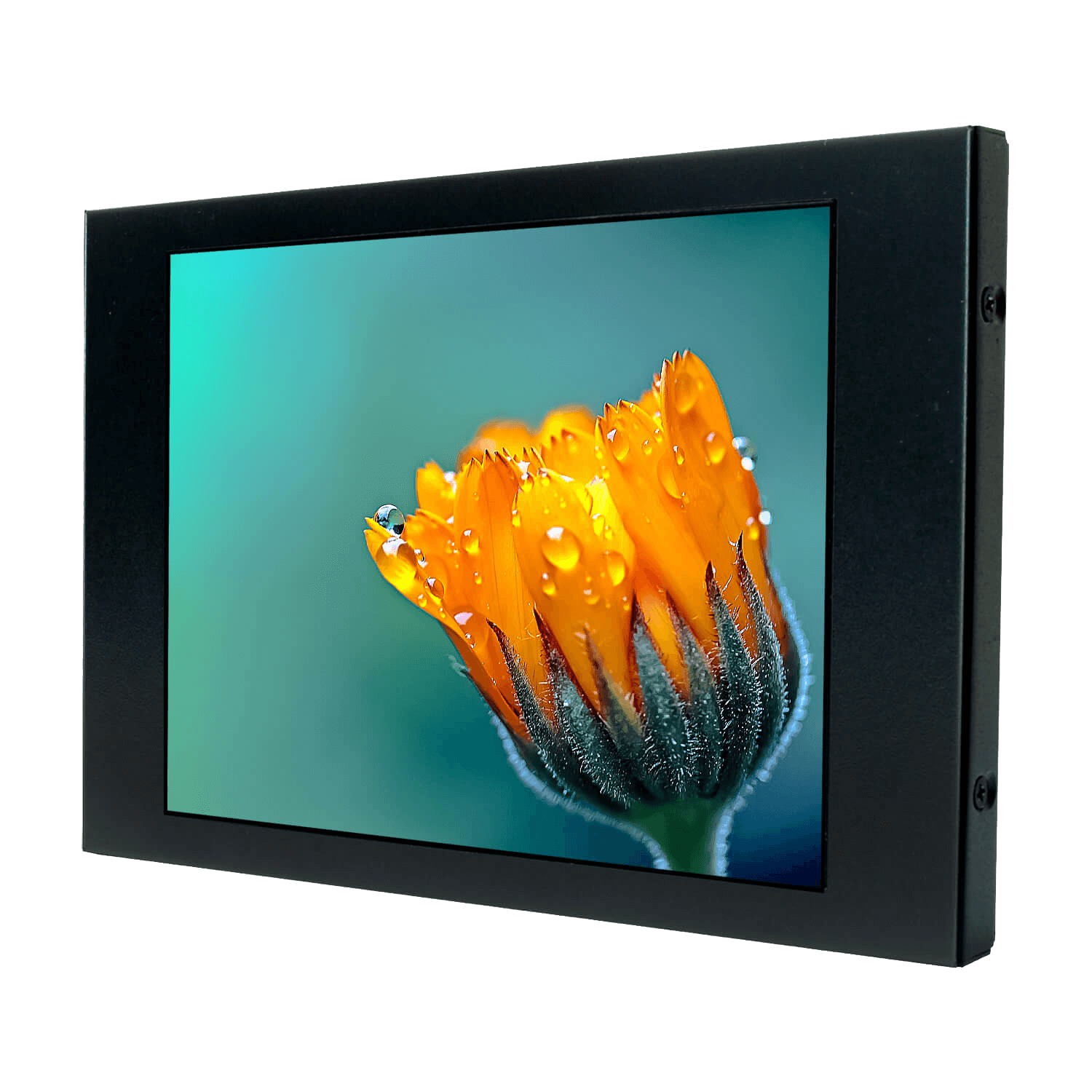

Elevate your industrial operations with the SLD0868-E Industrial Monitor from Litemax Co. This robust 8.4-inch display offers a sharp resolution of 800×600 and a 4:3 aspect ratio, ensuring crisp and clear visuals for your demanding applications. Featuring an impressive brightness of 1600 cd/m² and a contrast ratio of 600, the SLD0868-E guarantees outstanding visibility in any lighting condition. With versatile viewing directions at 6:00, 12:00, and full range, this monitor adapts to your specific needs. Equipped with DVI-D, LVDS, and VGA interfaces, it provides seamless connectivity options. Designed for durability, the SLD0868-E operates efficiently in extreme temperatures ranging from -20°C to 70°C, making it ideal for challenging environments. Its compact design, with an active area of 170.4×127.8 mm and slim dimensions of 203×142.5×5.7 mm, ensures easy integration into your systems. Trust in Litemax's innovation for reliable performance and enhance your productivity with this high-quality industrial monitor.

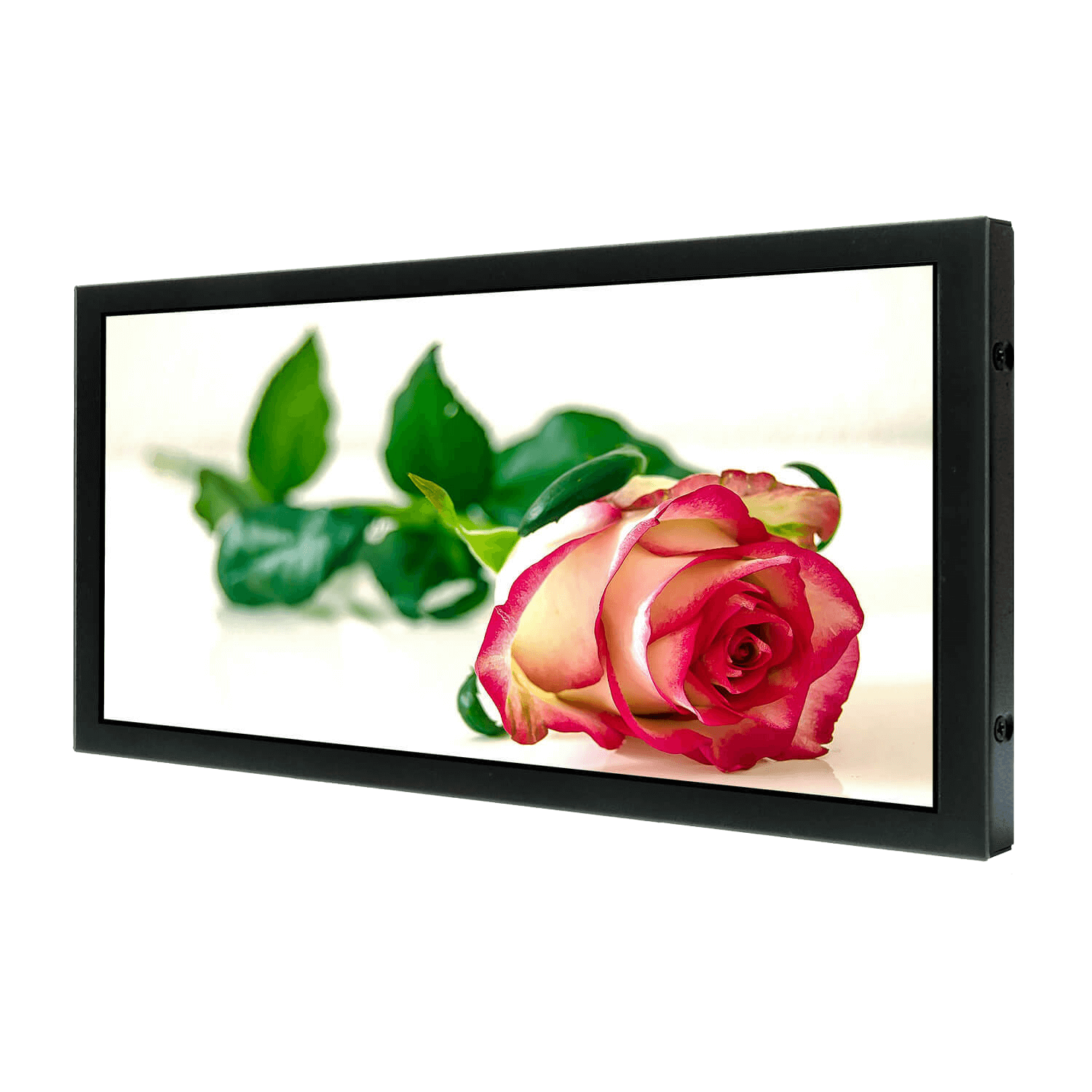

The DLO1015-V Industrial Monitor from Litemax delivers exceptional performance for demanding environments. With a vibrant 10.1-inch display and a high resolution of 1024×600, it ensures clear and sharp visuals. Its impressive brightness of 1000 cd/m² and contrast ratio of 900 provide excellent visibility, even in challenging lighting conditions. Designed for versatility, the DLO1015-V supports viewing angles at 6:00, 12:00, and full range, making it ideal for various industrial applications. The robust design allows it to operate in extreme temperatures ranging from -20°C to 70°C, with storage capabilities from -30°C to 80°C. Featuring a DP interface, this monitor offers seamless connectivity without a touch panel, ensuring durability and reliability. With compact dimensions of 235x143x7.54 mm, it fits comfortably into any industrial setup. Trust the DLO1015-V to enhance productivity and efficiency with its superior display technology and rugged construction.

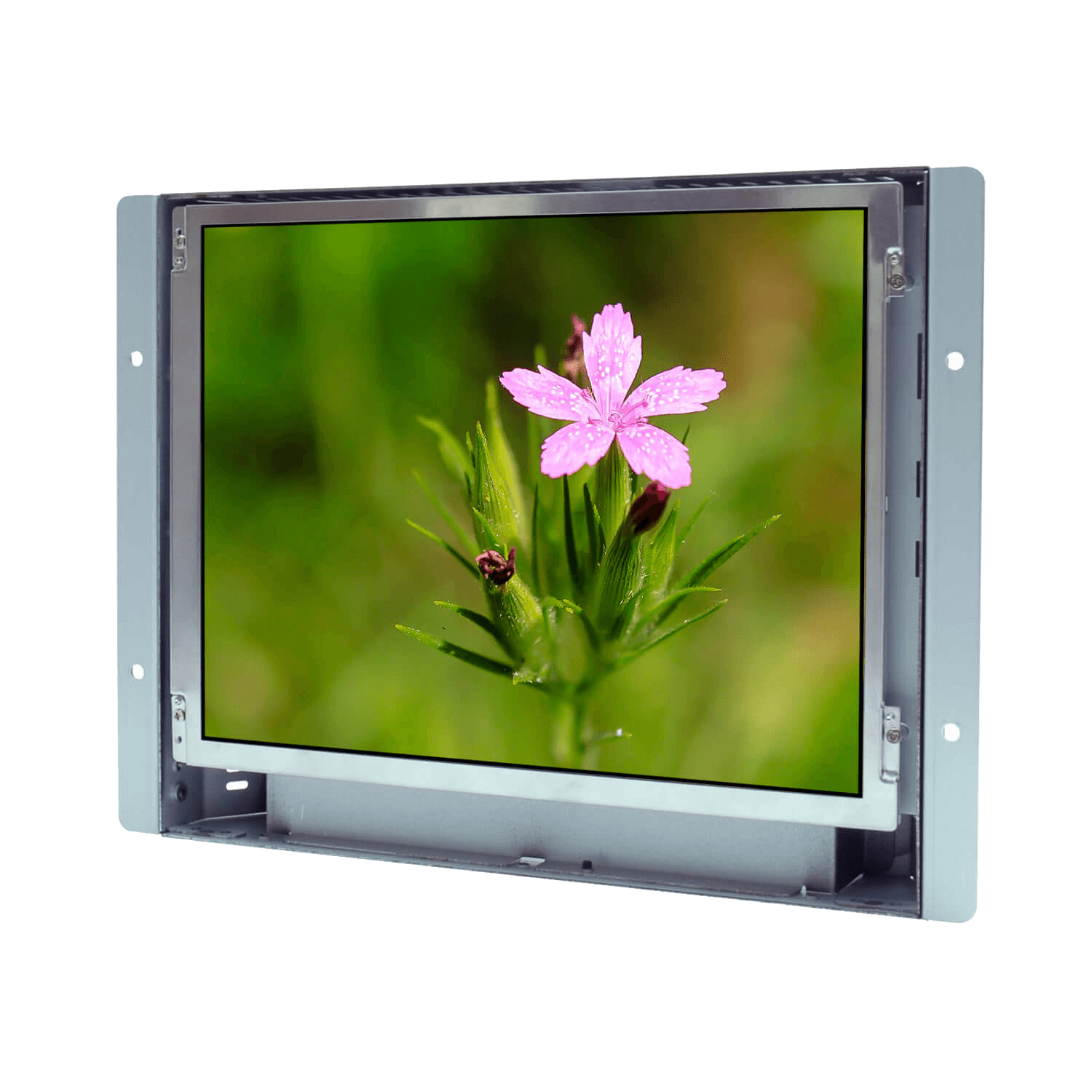

Elevate your industrial display solutions with the SLO1068-E from Litemax Co. This 10.4-inch monitor boasts an impressive brightness of 2000 cd/m², ensuring clear visibility even in the harshest lighting conditions. With a robust resolution of 800×600 and a 4:3 aspect ratio, the SLO1068-E delivers sharp and precise visuals. Its versatile viewing direction at 6:00, 12:00, and full angles caters to diverse operational needs. The monitor is equipped with DVI-D, LVDS, and VGA interfaces, offering seamless connectivity options. Engineered for durability, it operates efficiently in extreme temperatures ranging from -20°C to 70°C, withstanding storage conditions from -30°C to 80°C. Its compact design, with an active area of 210.2 x 158.4 mm and outline dimensions of 236 x 176.9 x 6.3 mm, makes it an ideal choice for space-constrained environments. Choose the SLO1068-E for a reliable, high-performance display that meets the rigorous demands of industrial applications.

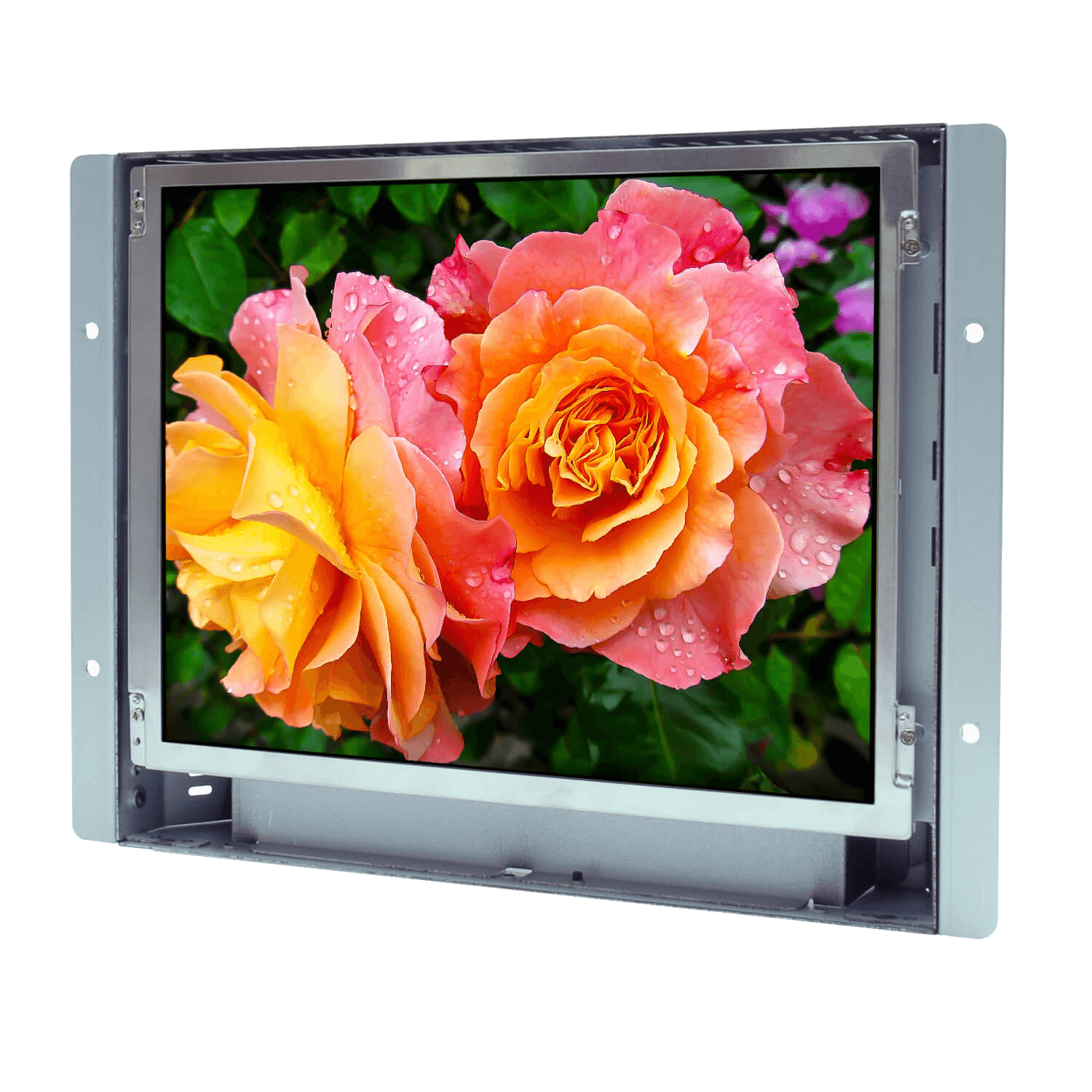

Experience unparalleled display performance with the SLD1068-E Industrial Monitor from Litemax Co. Designed for demanding environments, this 10.4-inch monitor offers an impressive 2000 cd/m² brightness and 800 x 600 resolution, ensuring clear visibility even in challenging lighting conditions. With a robust operating temperature range of -20°C to 70°C, the SLD1068-E is perfect for both extreme industrial applications and regular use. Its full viewing direction capability allows for versatile installation, while the DVI-D, LVDS, and VGA interfaces provide seamless connectivity. Despite its compact size with dimensions of 236 x 176.9 x 6.3 mm, it boasts a substantial active area of 210.2 x 158.4 mm. Trust in Litemax's expertise for durability and performance without compromising on quality. Elevate your industrial operations with the reliability and clarity of the SLD1068-E monitor, engineered to withstand the toughest conditions.

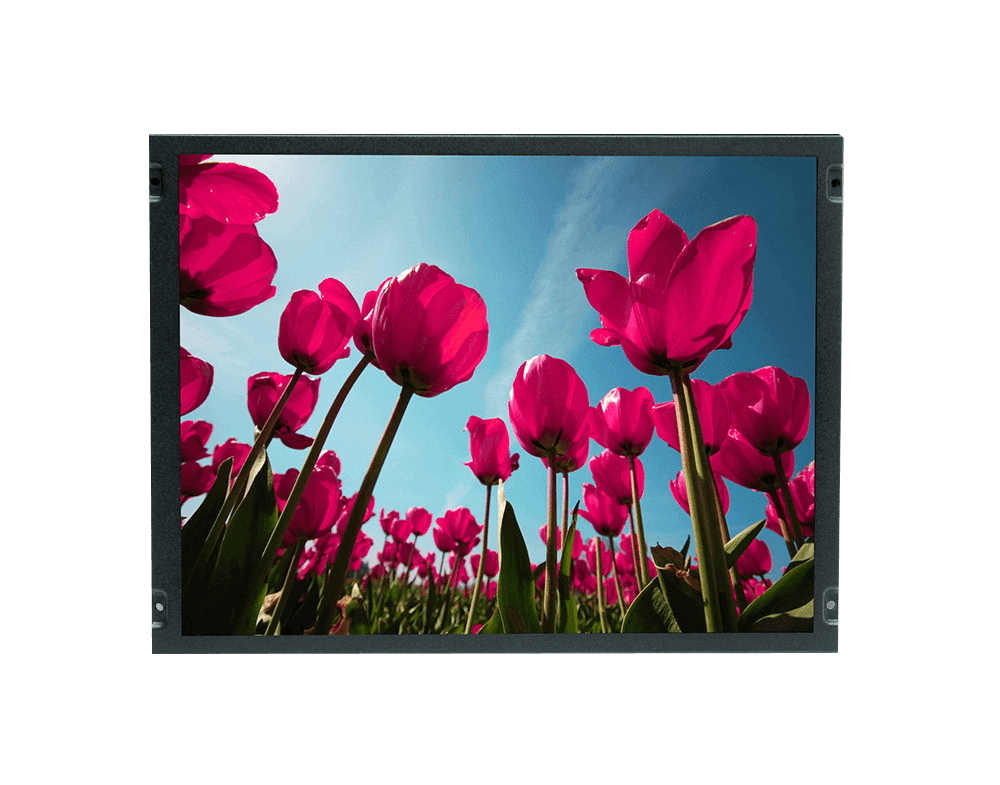

Elevate your industrial operations with the DLD1568-I Industrial Monitor from Litemax. Engineered for demanding environments, this robust 15-inch display boasts an impressive 1024×768 resolution and 1600 cd/m² brightness, ensuring clear visibility even in harsh lighting conditions. The DLD1568-I features a remarkable contrast ratio of 6500, delivering sharp and vibrant visuals. With a wide viewing angle of 6:00, 12:00, and full direction, it offers superior flexibility in various settings. Equipped with versatile interfaces including DP, DVI-I, and HDMI, this monitor integrates seamlessly into your existing systems. Designed to withstand extreme temperatures, it operates efficiently between -30°C to 80°C, with storage capacity extending from -40°C to 80°C. Compact yet powerful, its dimensions of 326.5×253.5×31 mm make it an ideal fit for space-constrained environments. Choose DLD1568-I for a reliable, high-performance display solution that enhances productivity and efficiency in industrial applications.

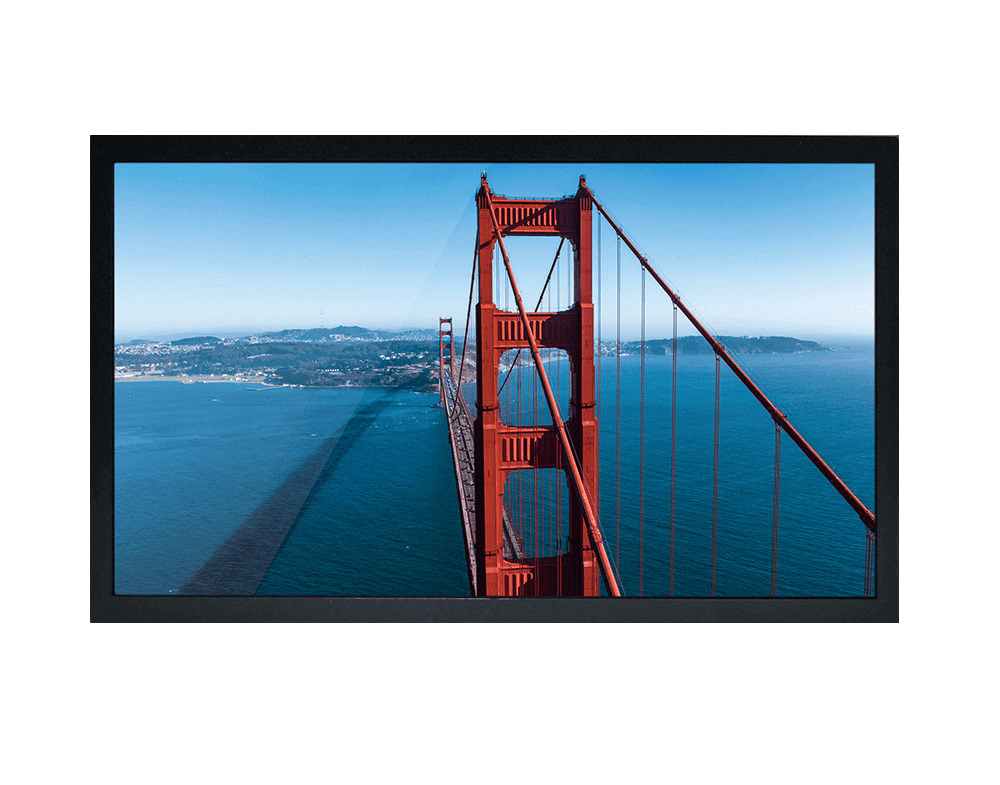

Experience unparalleled performance with the DLD1566-I Industrial Monitor from Litemax Co., designed to meet demanding industrial standards. This 15.6-inch monitor boasts a stunning Full HD resolution of 1920 x1080, ensuring crystal-clear visuals and a 16:9 aspect ratio for optimal viewing. With an impressive brightness of 1200 cd/m² and a contrast ratio of 1000, the DLD1566-I delivers vibrant images even in challenging lighting conditions. Its versatile viewing direction, including 6:00 and 12:00, ensures exceptional visibility from multiple angles. Equipped with DP and DVI-I interfaces, it seamlessly integrates into your existing setup. The robust design, featuring an active area of 344.16 x193.59 mm and compact outline dimensions of 369 x221.1 x40.2 mm, is built to withstand extreme temperatures ranging from -30°C to 70°C, making it ideal for harsh environments. Elevate your industrial operations with the reliable and durable DLD1566-I monitor, engineered for excellence.

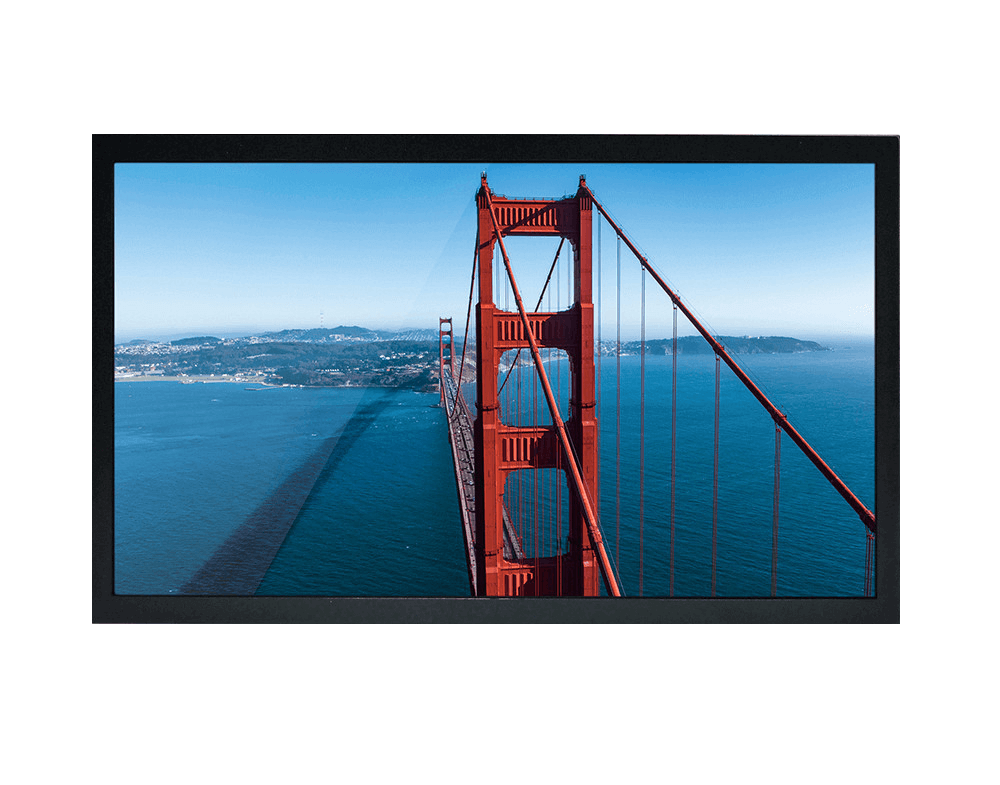

Experience unparalleled performance with the DLD1569-I industrial monitor from Litemax Co. Designed for demanding environments, this 15.6-inch display boasts a stunning 1920×1080 resolution and a 16:9 aspect ratio, ensuring crystal-clear visuals. With an impressive brightness of 1800 cd/m² and a contrast ratio of 1200, the DLD1569-I delivers exceptional clarity even in challenging lighting conditions. Its robust construction supports a wide operating temperature range from -30°C to 85°C, making it perfect for varied industrial applications. The monitor's full viewing direction and multiple interface options including DP, DVI-I, and HDMI provide versatility and easy integration into existing systems. Despite its powerful capabilities, the DLD1569-I maintains a compact form with outline dimensions of 366.3 x 221.5 x 42.4 mm. Choose the DLD1569-I for reliability, durability, and superior image quality in any industrial setting.

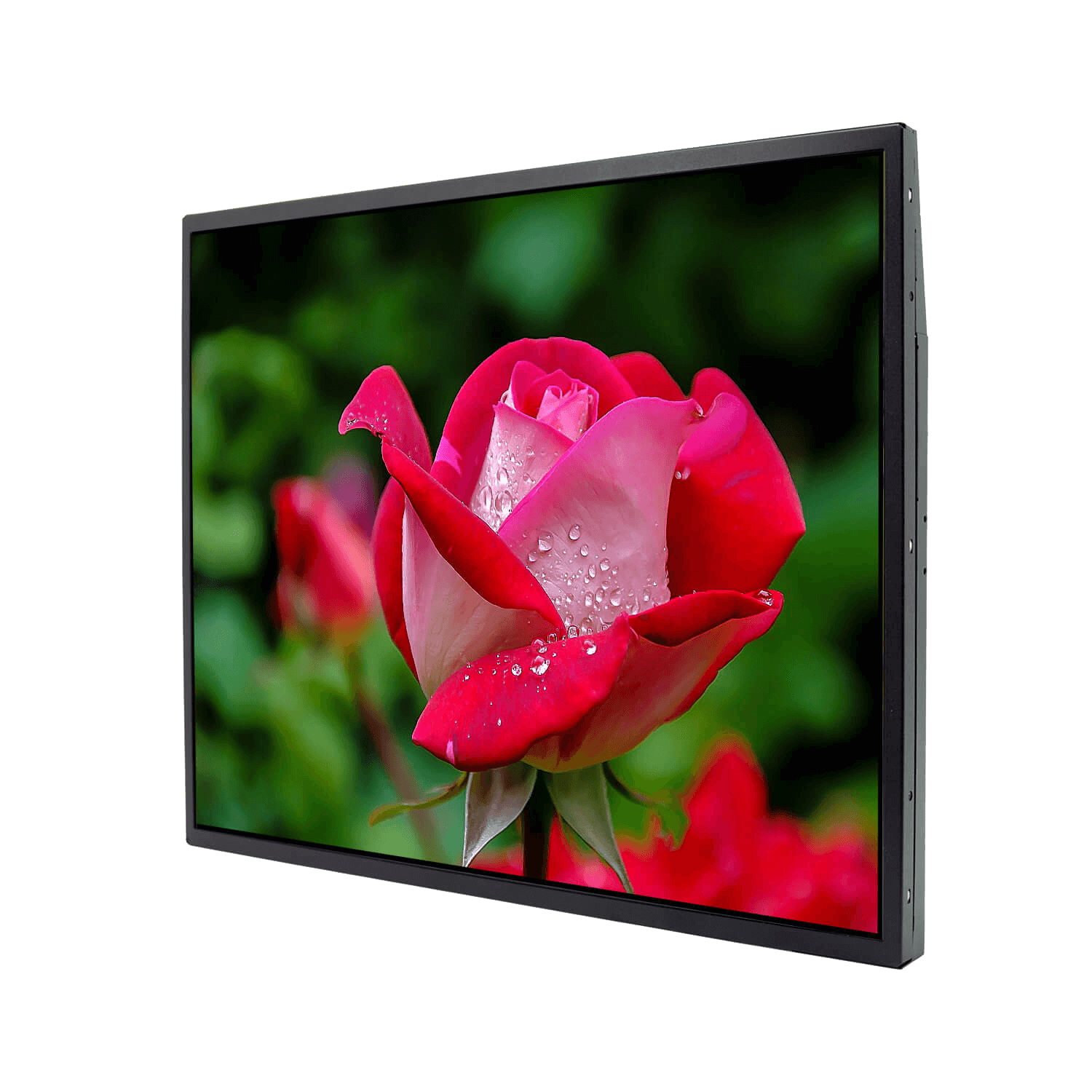

Enhance your industrial setup with the DLO1968-U from Litemax Co., a robust 19-inch monitor engineered for demanding environments. Boasting a high brightness of 1600 cd/m² and a resolution of 1280 x 1024, it ensures superior visibility in all lighting conditions. The 5:4 aspect ratio and full viewing direction capabilities provide flexibility in installation, making it perfect for diverse applications. Built to withstand extreme temperatures from -30°C to 85°C, the DLO1968-U is ideal for both harsh outdoor and controlled indoor settings. Its slim profile with dimensions of 396 x 324 x 14.5 mm allows for seamless integration into compact spaces. The DP interface ensures reliable connectivity, while the absence of a touch panel focuses on delivering clear, uninterrupted display performance. Trust the DLO1968-U for enhanced durability and exceptional display quality, making it a valuable asset in any industrial environment.

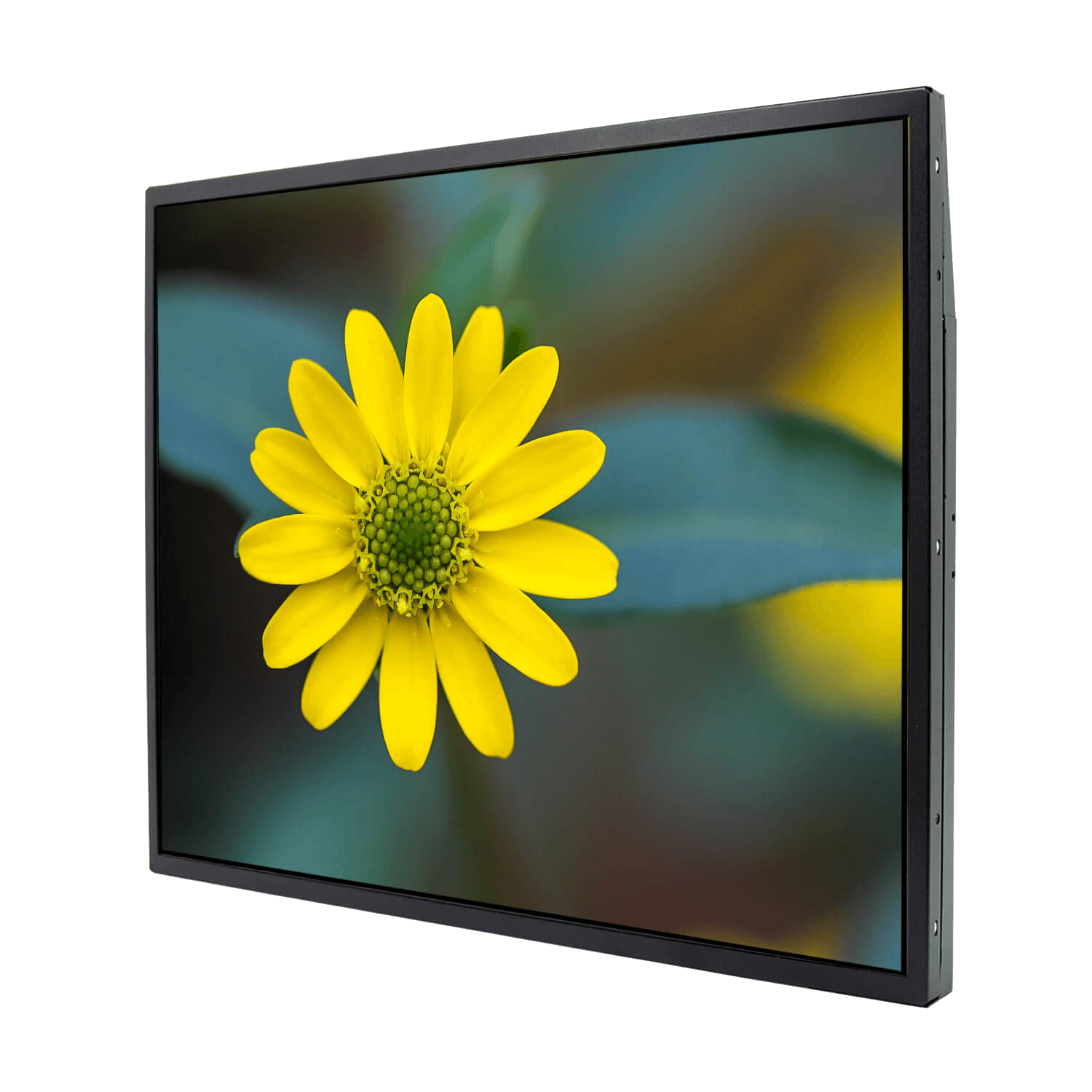

Experience unparalleled performance with the DLD1968-U Industrial Monitor from Litemax Co. Designed for demanding environments, this 19-inch monitor offers a stunning resolution of 1280 x 1024, ensuring crystal-clear visuals. With an impressive brightness of 1600 cd/m² and a contrast ratio of 1000, the DLD1968-U delivers vibrant and precise images even in challenging lighting conditions. Its robust design supports a wide operating temperature range of -30°C to 85°C, making it perfect for diverse industrial applications. The full viewing direction ensures optimal visibility from multiple angles, while the DP interface provides seamless connectivity. With dimensions of 396 x 324 x 14.5 mm and an active area of 376.3 x 301.06 mm, this monitor is compact yet powerful. Trust in Litemax's engineering excellence to deliver durability and reliability. Elevate your industrial operations with the DLD1968-U, where performance meets resilience.
Elevate your industrial operations with the DLD4309-B Industrial Monitor by Litemax. This 43-inch powerhouse delivers a stunning Full HD resolution of 1920 x 1080, ensuring crystal-clear visuals for critical tasks. Its impressive brightness of 1800 cd/m² and contrast ratio of 1300 make it perfect for challenging environments, offering superior visibility even in direct sunlight. The DLD4309-B features a versatile 16:9 aspect ratio and supports multiple viewing directions, enhancing flexibility in various setups. Equipped with DP, DVI-I, and HDMI interfaces, it ensures seamless connectivity with your existing systems. Built to withstand extreme conditions with an operating temperature range of -20°C to 60°C, this robust monitor is designed for durability and reliability. With an expansive active area of 940.896 x 529.254 mm, the DLD4309-B is your ultimate solution for high-performance industrial display needs. Upgrade to unparalleled quality and performance with Litemax's innovation.
Applications of Industrial Monitors
When referring to “industrial monitors,” we mean a wide range of products that are used not only in the industrial sector but also in various other industries. Some examples include solutions for digital signage systems, as well as devices used in fields such as healthcare and military.
How to Choose the Right Industrial Monitor from Our Offer
When selecting an industrial monitor, after determining the desired size and resolution, it’s essential to pay attention to parameters such as brightness, contrast, viewing angles, operating temperature range, and available interfaces.
Industrial monitors are typically designed for continuous operation, 24/7. These models have an extended lifespan, with LED backlight lifetimes reaching up to 100,000 hours. Under proper conditions, they can operate without failures for several years.
Furthermore, some industrial monitors are specifically designed for use in certain industries. For example, there are models that comply with the PN-EN 50155 standard, also known as the “railway standard,” making them suitable for railway applications.
Brightness of Industrial Monitors
Brightness, measured in cd/m² (candelas per square meter), is a critical parameter of an industrial monitor. It represents the intensity of the emitted light from the screen. It is especially important when the device is deployed in brightly lit environments, regardless of the light source (natural or artificial). For applications such as digital signage, it is necessary to use monitors with high brightness levels: at least 750 cd/m² for indoor applications and at least 1000 cd/m² for outdoor applications*.
*Note that for sunlight-exposed locations, it is recommended to use industrial monitors with a brightness level of at least 2500 cd/m². In such cases, it is also beneficial to use monitors with hiTNI technology, which prevents the appearance of “black spots” caused by temporary degradation of liquid crystals due to intense sunlight.
In our product offering, we have industrial monitors available with different brightness levels ranging from 600 to 4500 cd/m².
Contrast of Industrial Monitors
Contrast, defined as the ratio of the brightness of the white point to the black point on the screen, affects the image quality. A higher contrast ratio results in a greater distinction between bright and dark areas on the screen, enhancing the readability of displayed content. Our product range includes industrial monitors with contrast ratios ranging from 400:1 to 10000:1.
Viewing Angles of Industrial Monitors
Viewing angles determine the optimal position for observing the screen. The market offers LCD-TFT TN (Twisted Nematic) displays with limited viewing angles, typically at 12:00 (when viewed from above) or 6:00 (when viewed from below). There are also displays with full viewing angles, known as IPS (In-Plane Switching), which allow for viewing the content from any direction. Wider viewing angles provide better accessibility to displayed content. Industrial monitors typically have wide viewing angles (89°/89°/89°/89°).
Operating Temperature Range (°C) of Industrial Monitors
Industrial monitors are often used in extreme conditions. Therefore, it is crucial for their parameters, including the operating temperature range, to align with the environmental factors in which they will be installed. The monitors should withstand not only extremely low and high temperatures (e.g., freezing cold or scorching heat) but also sudden temperature changes (e.g., when opening a door of a heated/cooled vehicle in cold/hot weather conditions). The typical operating temperature range for industrial monitors is from -20 to 70°C, ensuring reliable operation in various indoor and outdoor applications.
Interfaces Used in Industrial Monitors
The choice of interface depends on the intended use of the industrial monitor. In our product offering, we provide solutions that support various interface technologies, including LVDS, VGA, DP, DVI, HDMI, USB, and Vx1 (V-by-1/V-by-One).
Interfaces used in industrial monitors can be divided into two groups:
- Internal solutions, where the elements of the same device are directly connected (typically located within the same enclosure), such as RGB, LVDS, eDP, MIPI DSI, and Vx1 (V-by-1/V-by-One).
- External solutions, where two separate devices, such as a computer and a monitor, are connected using cables. This category includes interfaces like HDMI, DVI, VGA, and DP.
Learn more about interfaces used for data transmission from our guides: Part 1 and Part 2.
Manufacturers of Industrial Monitors
Our product offering includes industrial monitors from reputable manufacturers, including solutions provided by Litemax. For example, we offer models from the Durapixel series, where “durable” is reflected in the name.
