P353KVN01.0 – LCD-TFT display from AUO Co.

P353KVN01.0 is 35.3-inch LCD-TFT display module with 1600×1800 resolution (any view) from AUO Co., without TFT controller, interface: V-by-One. The module is equipped with an Edge LED backlight, LED inverter, a MVA screen and square. The display characterizes with a brightness of 500 cd/m², a static contrast ratio of 4000:1.

Datasheet

Size (inch)	35.3
Resolution	1600x1800
Aspect ratio	8:9
Brightness (cd/m²)	500
Contrast	4000
Viewing Direction	12:00, 6:00, Full
Orientation	any
Interface	V-by-One
Controller	none
Mounting frame	none
Touchscreen	none
Active Area	595.2x669.6

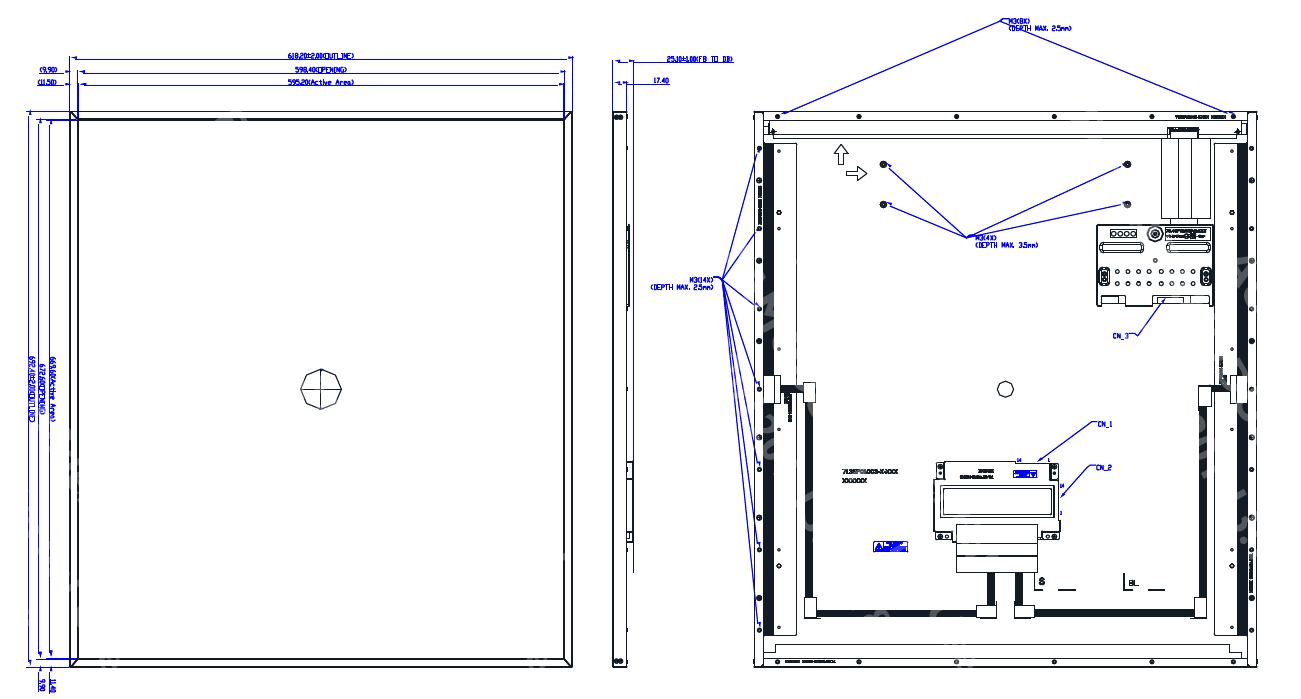

Outline Dimensions	618.2x692.4x25.1
Operating temp. (°C)	-20~60
Special	MVA, square
Manufacturer	AUO
