RTP10.1-5W-AMT-2526-020 – resistive touch screen

ATTENTION: This product has MOQ (Minimum Order Quantity) that is 100 pieces.

For most products with MOQ, you can order smaller quantities (trial). For more details please contact us.

10.1-inch resistive touch screen RTP10.1-5W-AMT-2526-020 by AMT Co. with 1.1 mm glass and aspect ratio of 4:3. The product is equipped with FPC/AMPC connector, an anti-glare coating and none. Device may work within industrial temperature range (-20~70°C). AMT in cooperation with Unisystem may provide touch sensor with any kind of glass (standard, hardened, semi-hardened, laminated, Gorilla® Glass, Dragontrail™, with AR, AG or AF coating) and any size, thickness, shape, color, imprint. Apart from high quality industrial touch screens and controllers designed in unique way, AMT and Unisystem offer complex service and technical support.

Datasheet

Ask our team for:

Size (inch)	10.1
Aspect ratio	4:3
Glass Thickness	1.1 mm
Interface	RS232, USB
Build-in Controller	None
Special	None
Manufacturer	AMT

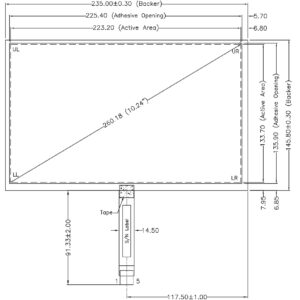

Outline Dimensions	235.00 x 145.80 x 1.5

Description

Industrial operating temperature range

This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.

EMC (Electromagnetic Compatibility)

EMI (electromagnetic interference) is a common phenomenon in our environment and may have an effect on functioning of most electronic devices. In case of PCT (Projected Capacitive Technology) products, this results in the touch detection interferences. In PenMount controllers there are implemented extremely effective hardware and software solutions to avoid interferences on various frequency bands and maintain the accuracy of touch detection. AMT's PCT solutions meet the highest EMC standards and can be successfully used in industrial, medical and military touch applications.

Drivers for all common operating systems

AMT provides customers with complete documentation and refined drivers along with source code. Users can immediately use AMT touch screens on their operating system or develop their own drivers for I2C, USB and UART / RS-232 interfaces. The drivers are available for both ARM (the majority of embedded and mobile systems) and x86 / x64 architecture (all versions of Windows from 3.1 to 10, most popular Linux versions: Ubuntu, Debian, OpenSUSE, RedHat, Fedora, CentOS). AMT provides customers with all libraries and source codes for free.

Proven utilities

AMT offers a complete touch panel calibration solution. PenMount PCIUtility will save valuable time and is available for both Windows and Linux. Among others, user can choose screen size, glass thickness and interface and control parameters responsible for sensitivity and amount of detected touch points. User can also specify how the screen behaves when exposed to water or when working in gloves. Parameter settings can be both exported and imported, allowing you to configure efficiently more screens. In addition, PenMount PCIUtility offers tools for measuring noise levels and panel calibration.
