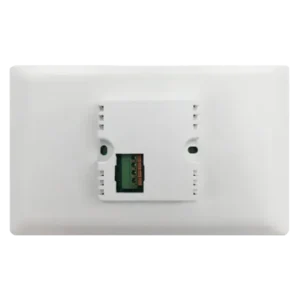

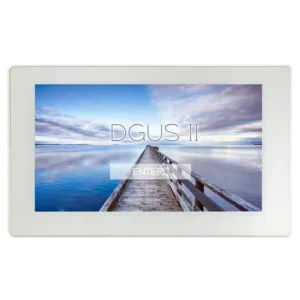

The TC070C22W00 Smart LCD-TFT from DWIN T5L2 ASIC with WiFi offers cutting-edge technology for seamless integration into your electronic projects. Boasting a vibrant 7-inch display, it provides crisp visuals and a user-friendly interface, ideal for diverse applications ranging from industrial automation to consumer electronics. Equipped with advanced T5L2 ASIC technology, this smart LCD ensures robust performance and energy efficiency. The integrated WiFi capability allows for easy remote monitoring and control, enhancing functionality and connectivity. Built for durability, it supports a wide operating temperature range, making it suitable for challenging environments. Elevate your project’s capabilities with the reliable and innovative TC070C22W00 Smart LCD-TFT.
Ask our team for:
| Size (inch) | 7 |
|---|---|
| Resolution | 1024x600 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 250 |
| Viewing Direction | Full |
| Interface | RS485 |
| Mounting Frame | No |
| Active area (mm) | 153.7x85.2 |
| Outline Dimensions (mm) | 193.0x118.0 |
| Operating temp. (°C) | -20~60 |
| Storage temp. (°C) | -30~70 |
| Manufacturer | DWIN |
Contact our experts – we’ll help you choose the optimal solution adapted to your needs.
This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.
