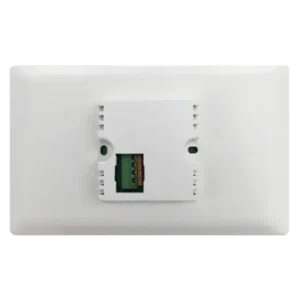

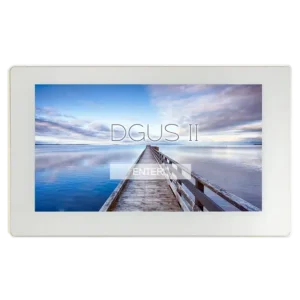

TC070C22U00 is a 7-inch IPS display module with 1024×600 resolution from DWIN. Based on the T5L ASIC, it features capacitive touch screen, built-in speaker, and RTC. With 250nit brightness and RS485 interface, it runs on either DGUS II or TA system. The unit operates in an industrial temperature range of -20°C to 60°C, making it versatile for various applications.
Ask our team for:
| Size (inch) | 7 |
|---|---|
| Resolution | 1024x600 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 250 |
| Viewing Direction | Full |
| Interface | RS485 |
| Mounting Frame | No |
| Active area (mm) | 153.7x85.2 |
| Outline Dimensions (mm) | 193.0x118.0 |
| Operating temp. (°C) | -20~60 |
| Storage temp. (°C) | -30~70 |
| Manufacturer | DWIN |
This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.
