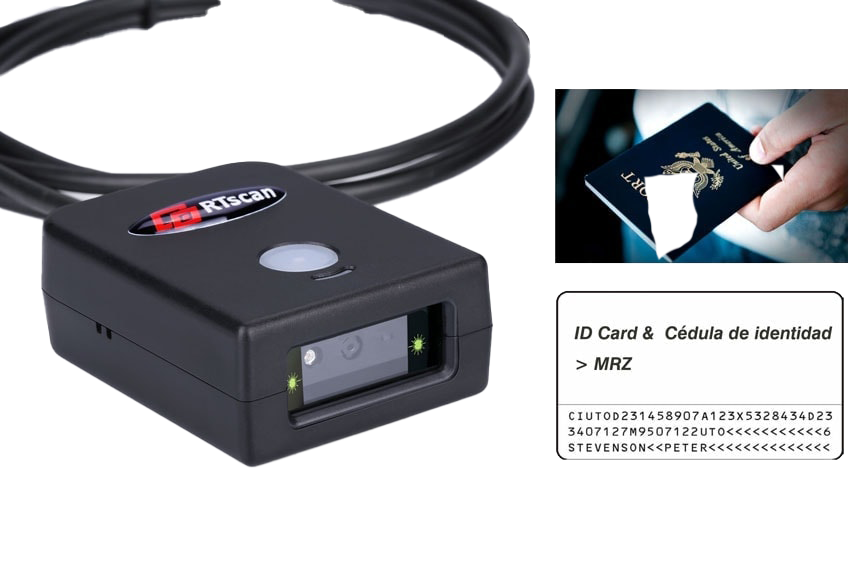

IDE237 – OCR-B / MRZ & Barcode Scanner

The IDE237 is a Fixed Mount ID Card and Passport Reader designed to efficiently read OCR-B/MRZ and barcodes from ID cards and passports. Featuring a high-resolution 1280*800 CMOS sensor, this scanner offers automatic reading and command trigger functionalities, ensuring accurate and swift data capture.

Specifications:

  • High-resolution 1280*800 CMOS sensor
  • Automatic reading and command trigger
  • Capable of reading MRZ and PDF417 from ID cards and passports

Connection Options:

  • USB (optional)
  • RS232 (optional)

Features:

  • Fixed mount design for easy embedding
  • Sensitive detection and fast reading from both screens and paper
  • Compatible with Windows, Linux, Android, Arduino, and Raspberry Pi
  • Ideal for applications in access control, identity management, and kiosks

Certificates:

  • CE, FCC, RoHS

Performance: The IDE237 is optimized for reading OCR-B MRZ from passports, ID cards, and driver’s licenses at a distance of 15cm-30cm, with the best performance around 20cm. To avoid reflection and improve reading performance, it is recommended to tilt the scanner slightly rather than pointing it directly at the ID card or passport.

The high-resolution imager is capable of reading large and high-density PDF417 codes from ID cards and driver’s licenses, including those from countries like Colombia, Costa Rica, El Salvador, Paraguay, Nicaragua, and Panama. The IDE237 also supports reading two barcodes simultaneously, making it suitable for scanning the dual high-density QR codes on the new Mexican ID documents.

Integration: We provide comprehensive 3D drawings and a program manual to support quick and easy integration with your terminals. For full documentation, please contact our sales team.

SDK/Software: We offer an SDK that enables extraction of information such as name, ID number, and birthday from ID documents. This facilitates seamless integration into your identity management systems.

Contact us now to learn more about the IDE237 Fixed Mount ID Card and Passport Reader. Order a sample today!

Datasheet
Image Sensor1280 x 800 CMOS
InterfaceRS232, USB
Outline Dimensions60x45x22.5

Related products

Integration

Screenshot -- at

We provide 3D-Drawing, integration User Guide which supports your easy and quick integration work with your terminals.
Contact our sales-people to get the full documents.

Setting Codes Programming

RT--

To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide.
We provide rich programming codes for you to do many kinds of settings / user-define.
Please ask our sales people for detailed documents.

Image Sensor

1280 x 800 CMOS

Interface

RS232, USB

Outline Dimensions

60x45x22.5
