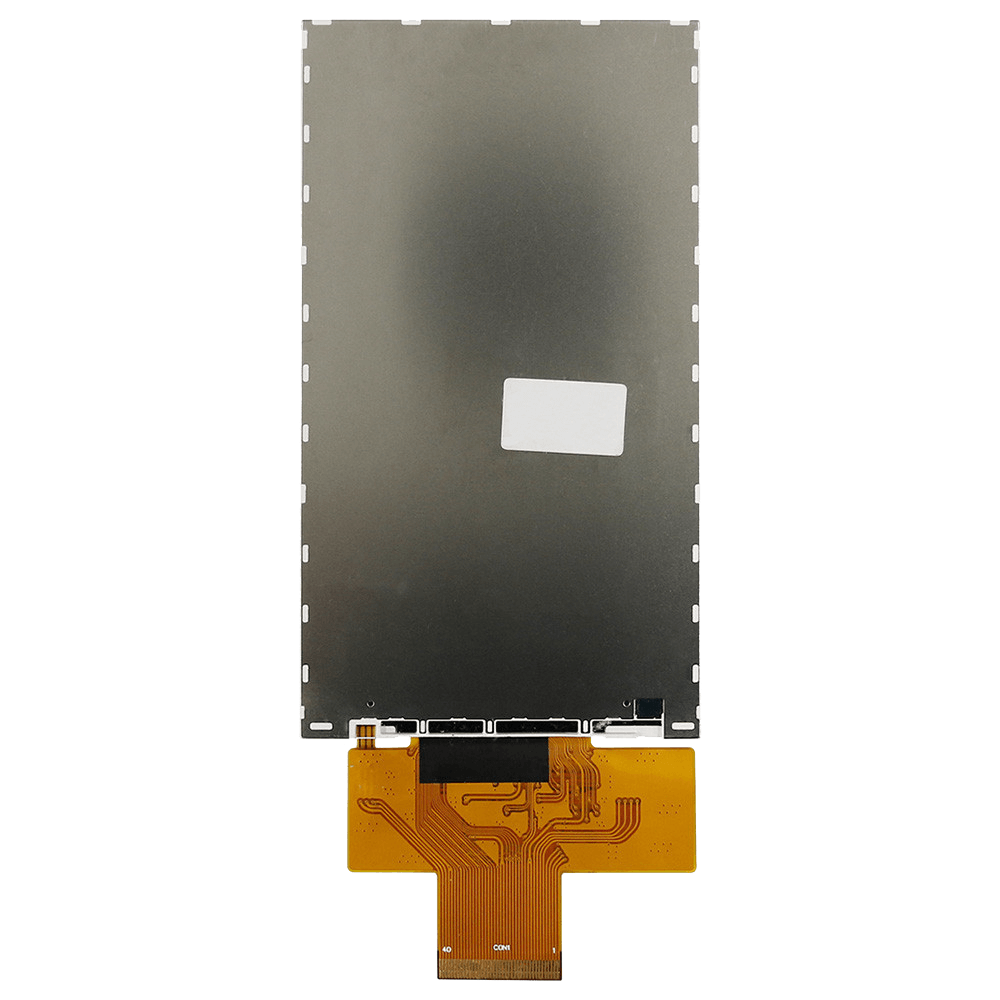

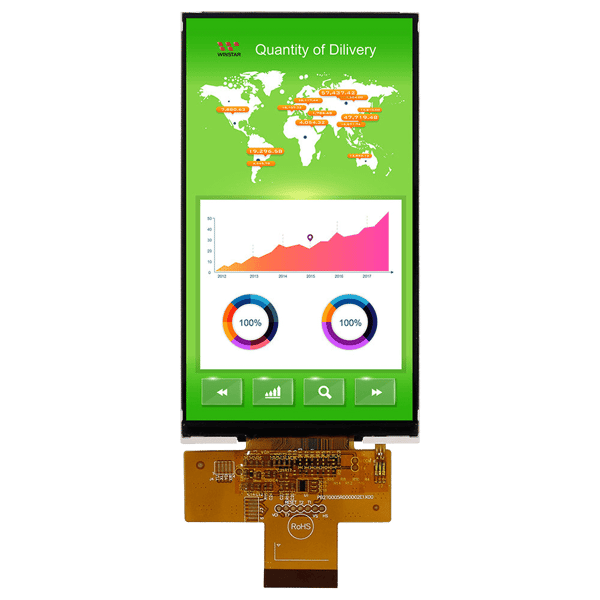

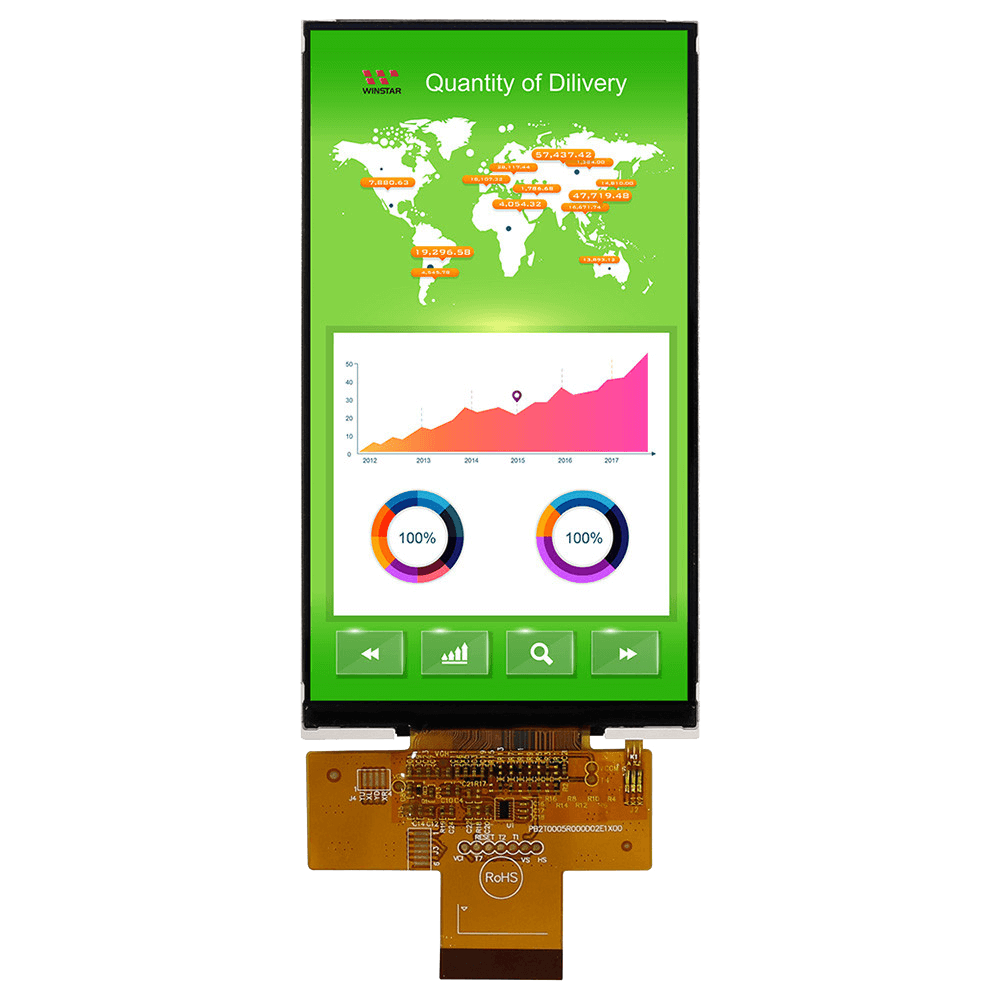

WF50DTYA3MNN0# – LCD-TFT display from Winstar Co.

WF50DTYA3MNN0# is 5.0-inch LCD-TFT display module with 720×1280 resolution (landscape view) from Winstar Co. and ILI9881C controller, that enables using the following interfaces: MIPI. The module is equipped with an Edge LED backlight, an IPS screen. The display characterizes with a brightness of 300 cd/m², a static contrast ratio of 800:1 and an ability to work in the industrial temperature range (-20~70°C).

Datasheet

Size (inch)	5
Resolution	720x1280
Aspect ratio	16:9
Brightness (cd/m²)	300
Contrast	800
Viewing Direction	12:00, 6:00, Full
Orientation	Landscape
Interface	MIPI
Controller	ILI9881C
Mounting frame	none
Touchscreen	none

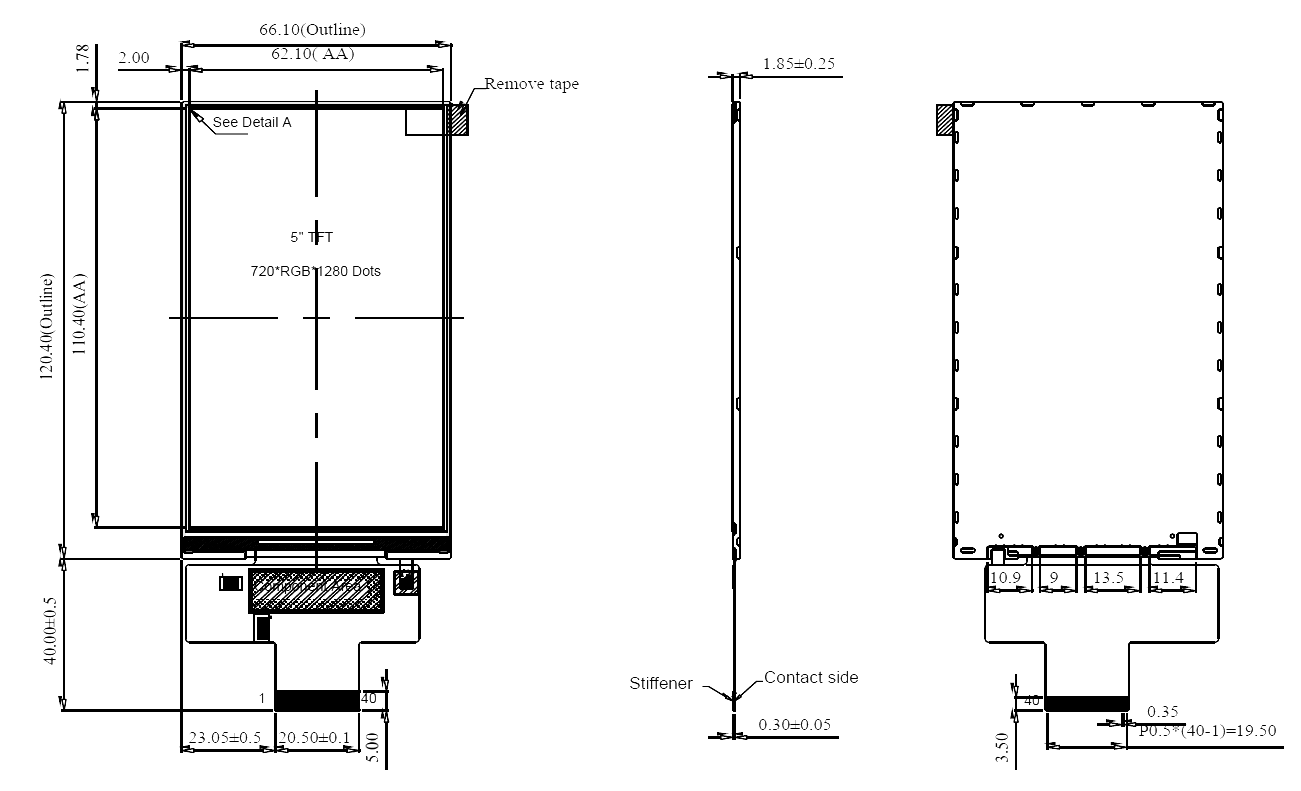

Active Area	62.1x110.4
Outline Dimensions	66.10x120.4x1.85
Operating temp. (°C)	-30~80
Special	IPS
Manufacturer	Winstar
