DLH0868-E – LCD-TFT display from Litemax Co.

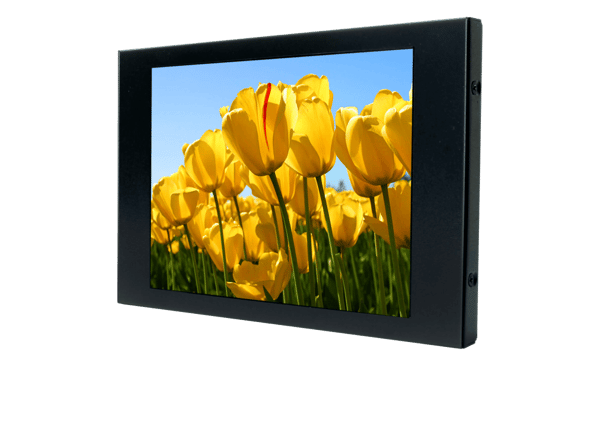

DLH0868-E is 8.4-inch LCD-TFT display module with 800×600 resolution (any view) from Litemax Co., without TFT controller, interface: LVDS, VGA and DVI-D. The module is equipped with an Edge LED backlight, LED inverter, an AD Board. The display characterizes with a brightness of 1600 cd/m², a static contrast ratio of 600:1 and an ability to work in the industrial temperature range (-20~70°C).

Datasheet
Size (inch)8.4
Resolution800x600
Aspect ratio4:3
Brightness (cd/m²)1600
Contrast600
Viewing Direction12:00, 6:00, Full
Orientationany
InterfaceDVI-D, LVDS, VGA
ControllerAD Board
Mounting framenone
Touchscreennone
Active Area170.4x127.8
Outline Dimensions203x142.5x5.7
Operating temp. (°C)-20~70
SpecialAD Board
ManufacturerLitemax

Related products

Industrial temperature range

The device is capable of stable and trouble-free operation for a long time over a wide temperature range, so it can be successfully used, for example, in transportation and outdoor applications.

Full observation angles

Full observation angles

Using an IPS/MVA (or a variation thereof) matrix, the display is readable from all angles. There is no grayscale inversion effect that characterizes popular TN matrices. Also, the decrease in contrast when increasing the viewing angle is much lower.

High brightness (wide format)

High brightness

High brightness of the image (high brightness) is a feature that is extremely useful when the display is in bright sunlight. With this functionality, the content displayed is fully readable by the user. High Brightness displays can be successfully used, for example, in exhibitions, kiosks, on trains and buses, as digital signage, or as part of other outdoor solutions.
